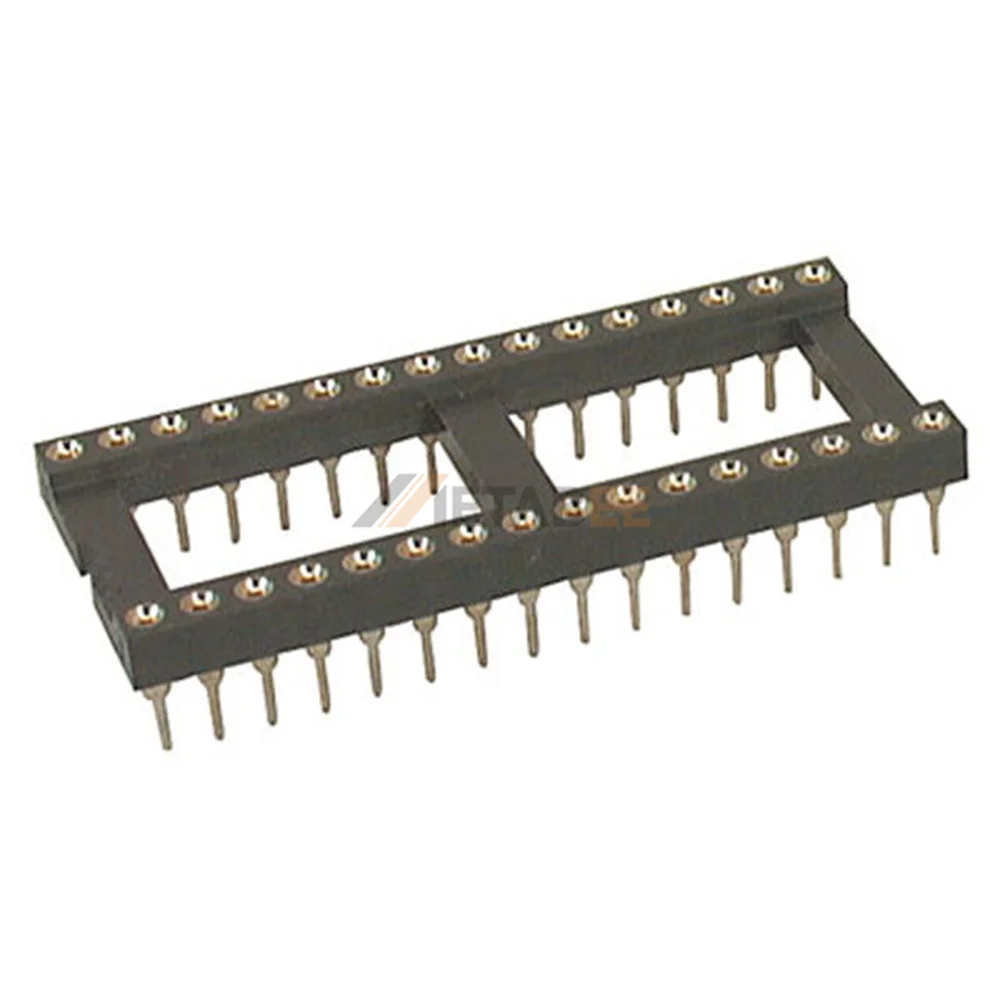

This 32 pin machined IC socket is a high-precision carrier designed for wide-body integrated circuits on networking circuit boards. It features screw-machined sleeves and four-finger Beryllium Copper clips to ensure a secure, 360-degree electrical bond that resists intense vibration. The housing is molded from high-performance PPS thermoplastic to withstand extreme industrial wave soldering temperatures without any structural warping. Utilizing a .600″ row spacing, this component provides a stable mounting interface for large dual-row DIP packages. Engineers utilize this 3A rated modular solution to facilitate fast chip updates while protecting expensive silicon from thermal damage during the assembly process. This robust interface ensures long-term signal stability in medical and industrial hardware.
Key Features
- Wide Body Design: Fits standard 15.24mm (.600″) wide-body IC packages.
- Machined Round Pins: Features four-finger clips for maximum contact reliability.
- High-Temp PPS Housing: Withstands extreme industrial soldering temperatures without warping.
- 3A Current Capacity: Supports higher power delivery than standard stamped versions.
Main Specifications:
General Information:
| Product No.: | ICM-632-1-GT-HT | |
| Product Type: | DIP IC Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 32 | |
| Contact Type: | Screw-Machined | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | 0.6″ (15.24mm) | |
| Tail Length: | 0.110″ (2.78mm) |
Materials and Plating:
| Insulator Material: | Polyphenylene Sulfide (PPS) | |
| Insulator Color: | Black | |
| Inner Clip Material: | Beryllium Copper (4-Finger) | |
| Inner Clip Plating: | Gold flash over Nickel | |
| Outer Sleeve Material: | Brass | |
| Outer Sleeve Plating: | Tin over Nickel |
Electrical:
| Current rating: | 3 Amp max | |
| Operating voltage: | 60 VAC/DC | |
| Contact resistance: | ≤ 4mΩ | |
| Insulation resistance: | ≧ 1,000MΩ at 100 V | |
| Mechanical life: | 200 Cycle min |
Environmental：
| Operating Temperature: | -40°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
ICM-6XX Series Dimensions & Part Number Selection Table
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of IC Sockets.
