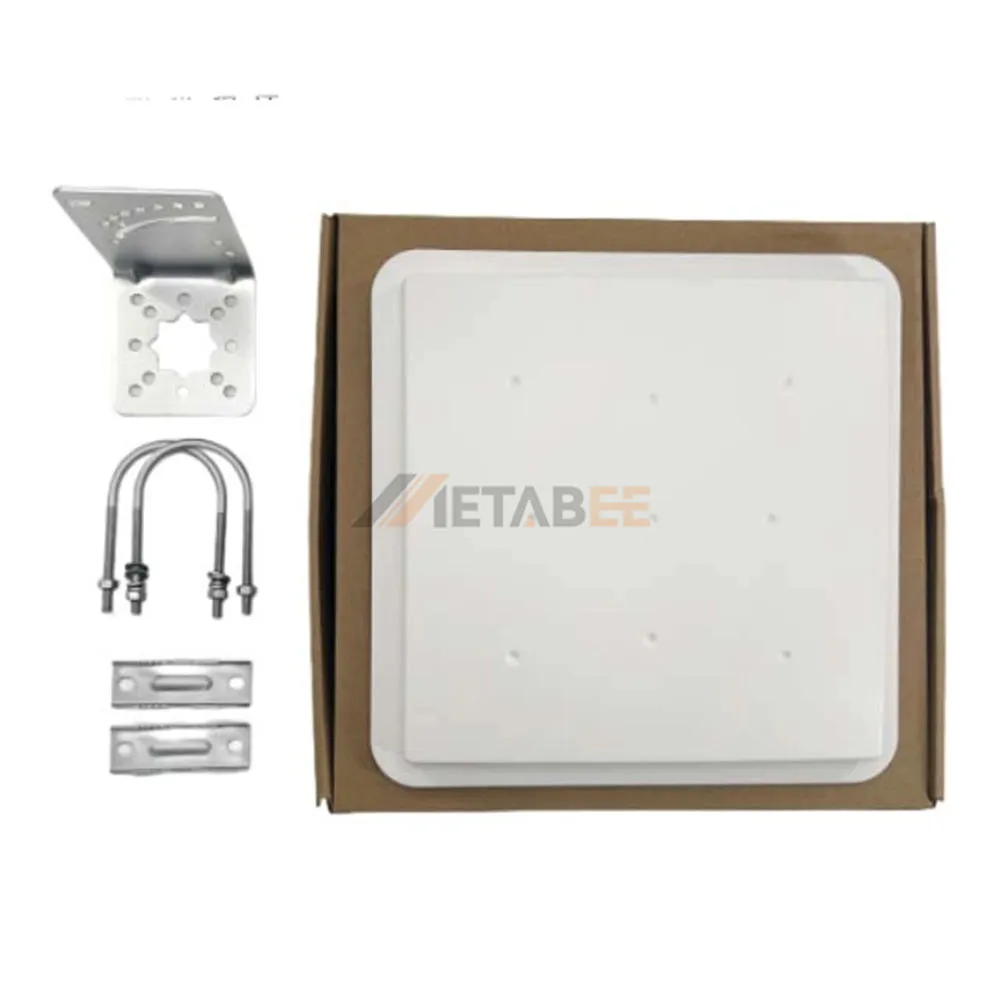

433 MHz High Gain LoRa Panel Antenna, 13dBi, N Female, IP66
Introduction:
Maximize your LoRa and IoT network coverage with this high-performance 433 MHz High Gain Panel Antenna. Engineering an impressive 13dBi gain, it significantly extends signal range and strengthens connectivity for long-range communications. Featuring a dual-radiation pattern (Vertical + Horizontal) and vertical polarization, this antenna ensures stable, omnidirectional-leaning coverage optimized for complex environments.
Built for demanding outdoor deployments, the antenna is housed in a rugged, UV-resistant ABS radome with an IP66 weatherproof rating. It safely operates in extreme temperatures ranging from -40°C to 85°C and features built-in DC Grounding lightning protection alongside 36.9 m/s wind survivability. Equipped with a standard N Female connector and low VSWR (less than 1.92), it offers seamless integration and maximum efficiency for smart metering, security systems, and industrial LoRaWAN gateways.
Key Features
- 13dBi High Gain: Dramatically extends 433 MHz LoRa and IoT network signal reach.
- IP66 Weatherproof: Rugged ABS radome protects against heavy rain, dust, and harsh outdoor climates.
- Dual Radiation Pattern: Vertical and Horizontal coverage optimizes signal reception.
- Industrial Durability: Withstands extreme temperatures (-40°C to 85°C) and winds up to 36.9 m/s.
- Lightning Protection: Integrated DC Grounding safeguards your valuable network equipment.
- High Efficiency: Low VSWR (less than 1.92) and 50Ω impedance ensure minimal signal loss.
General Information:
| Product No.: | YC-KS50059-433 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |
| Dimensions: | 260x260x40mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 433MHz | |
| Gain: | 13dBi | |
| VSWR: | <1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical+Horizontal | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP66 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 433 MHz High Gain LoRa Panel Antenna:
Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
