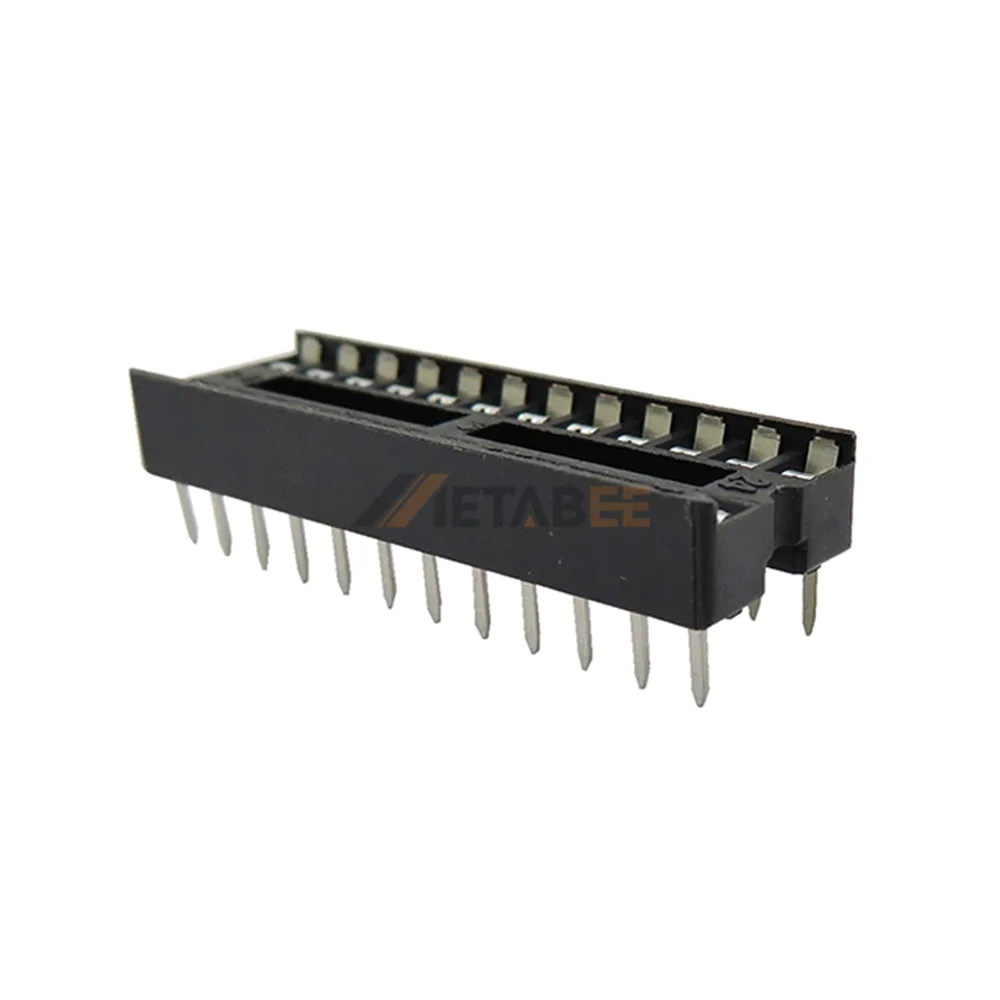

This 24 pin stamped type IC socket provides a durable mounting platform for dual-row integrated circuits on networking boards. It features THT solder tails that ensure stable mechanical anchoring while surviving high-temperature industrial wave soldering without distortion. Stamped Phosphor Bronze contacts with a Tin-over-Nickel finish provide consistent electrical mating and low resistance for 1A circuits. Utilizing a standard 2.54mm pitch and 7.62mm row spacing, this component fits narrow-body DIP packages perfectly. Technicians utilize this modular interface to allow for easy chip replacement or firmware updates. This solution effectively protects sensitive silicon from thermal damage during the initial assembly process.
Key Features
- 20 Pin Configuration: Fits standard dual-row integrated circuit packages.
- Stamped Contacts: Ensures reliable electrical mating and signal integrity.
- THT Termination: Provides stable mechanical anchoring to the board.
- UL 94V-0 PBT: Delivers high flame resistance and thermal stability.
Main Specifications:
General Information:
| Product No.: | ICS-324-T | |
| Product Type: | DIP Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 24 | |
| Contact Type: | Dual-Wipe Stamped | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | .300″ (7.62mm) |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Tin over Nickel underplate overall |
Electrical:
| Current rating: | 1 Amp max | |
| Operating voltage: | 250 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 5000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
DIP IC Socket Structure
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
