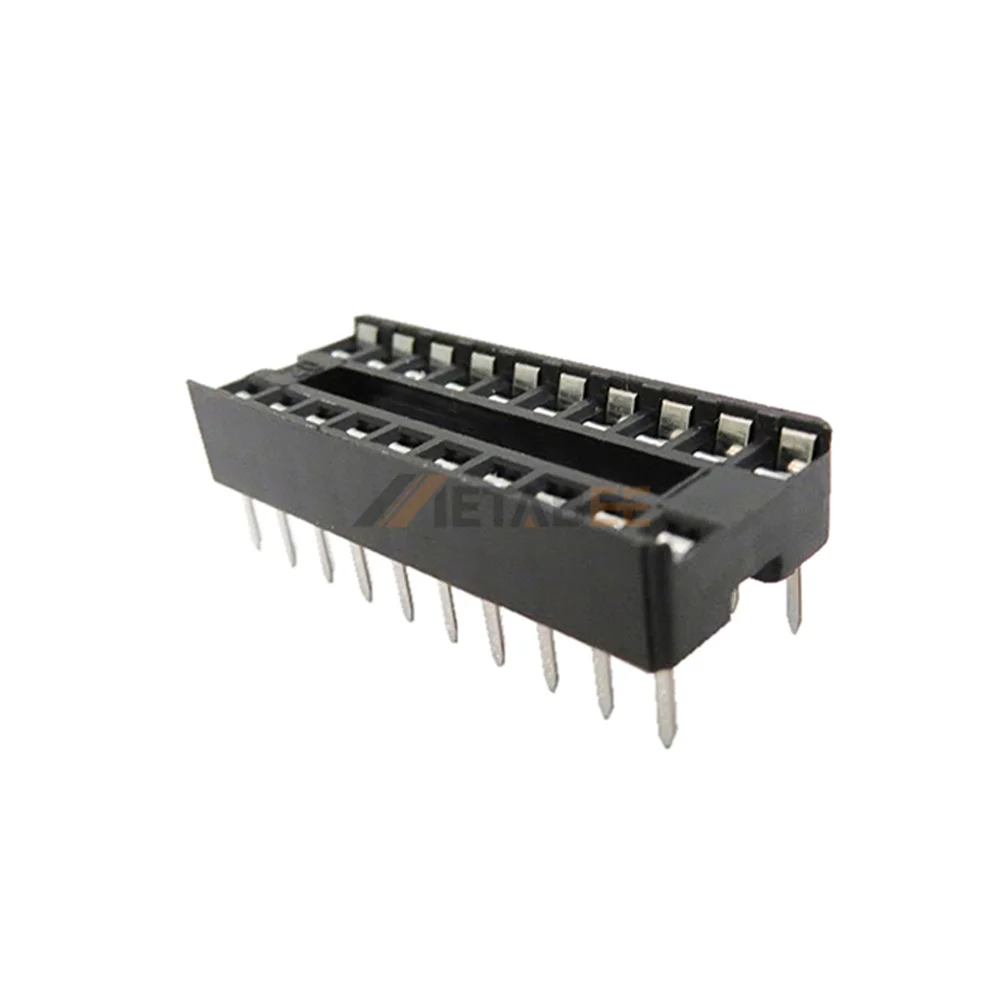

This 20 Pin DIP IC Socket provides a stable mounting platform for dual-row integrated circuits. It utilizes stamped contacts with a Tin-over-Nickel finish for consistent electrical mating and low resistance. The THT solder tails ensure secure mechanical anchoring to the PCB. Glass-filled PBT housing allows the unit to survive intense wave soldering heat without any distortion. Featuring a standard 2.54mm pitch and 7.62mm spacing, the component fits common DIP packages perfectly. Technicians integrate this modular interface to allow for easy chip replacement or rapid firmware updates. It effectively safeguards sensitive silicon from thermal stress during the manufacturing process.
Key Features
- 20 Pin Configuration: Fits standard dual-row integrated circuit packages.
- Stamped Contacts: Ensures reliable electrical mating and signal integrity.
- THT Termination: Provides stable mechanical anchoring to the board.
- UL 94V-0 PBT: Delivers high flame resistance and thermal stability.
Main Specifications:
General Information:
| Product No.: | ICS-320-T | |
| Product Type: | DIP Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20 | |
| Contact Type: | Dual-Wipe Stamped | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | .300″ (7.62mm) |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Tin over Nickel underplate overall |
Electrical:
| Current rating: | 1 Amp max | |
| Operating voltage: | 250 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 5000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
DIP IC Socket Structure
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
