2.4GHz WiFi Panel Antenna, 8dBi, Vertical Polarization, N Female, IP66
Introduction:
The 2.4GHz WiFi Panel Antenna is a high-performance directional antenna designed for stable and efficient wireless communication. Operating at 2.4GHz with 8dBi gain, it delivers enhanced signal focus and extended coverage for WiFi applications. Its vertical polarization ensures reliable signal alignment in fixed installations, making it ideal for point-to-point and point-to-multipoint networks.
Built with a robust ABS radome and IP66-rated protection, this antenna is engineered for harsh outdoor environments. It supports a maximum input power of 50W and maintains stable performance with a VSWR of ≤1.8 and 50 Ohm impedance. With DC grounding, lightning protection, and wind survivability up to 36.9 m/s, it ensures long-term durability and operational safety across demanding conditions.
Key Features
- 2.4GHz frequency with 8dBi high gain
- Directional radiation pattern for focused coverage
- Vertical polarization for stable signal performance
- IP66-rated ABS housing for outdoor durability
- N-Female connector for secure installation
- Operates -40°C to +85°C with lightning protection
General Information:
| Product No.: | YC-KS50043 | |
| Connector Series: | Panel Antennas | |
| Brand: | Metabee | |
| Connector Type: | N Female or Customized | |
| Connector Orientation: | Straight | |
| Radome Material: | ABS | |

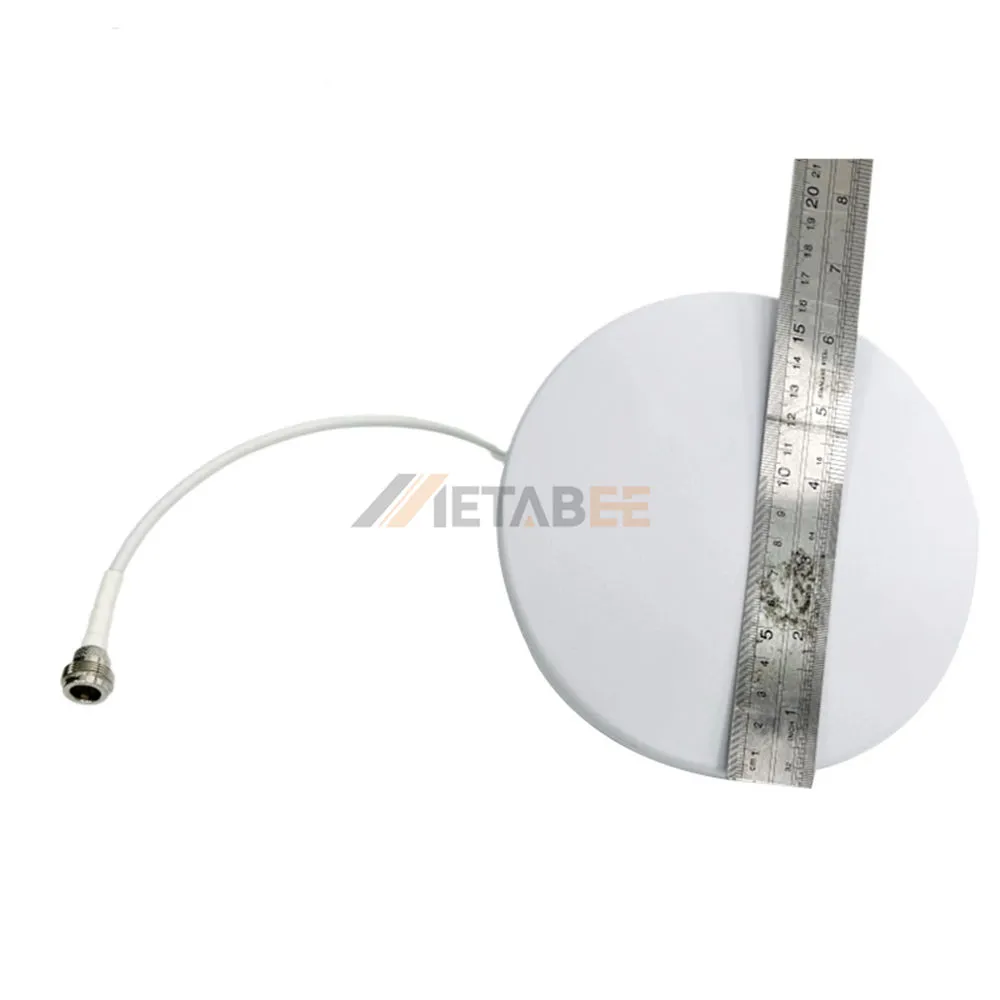

| Dimensions: | 160x15mm | |
| Color: | White | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2400-2500 MHz | |
| Gain: | 8±1dBi | |
| VSWR: | ≤1.8 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Directional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Environmental Performance:
| IP Rating: | IP65 | |
| Wind Survivability: | 36.9 m/s | |
| Lightning Protection: | DC Grounding | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this 2.4GHz WiFi Panel Antenna:

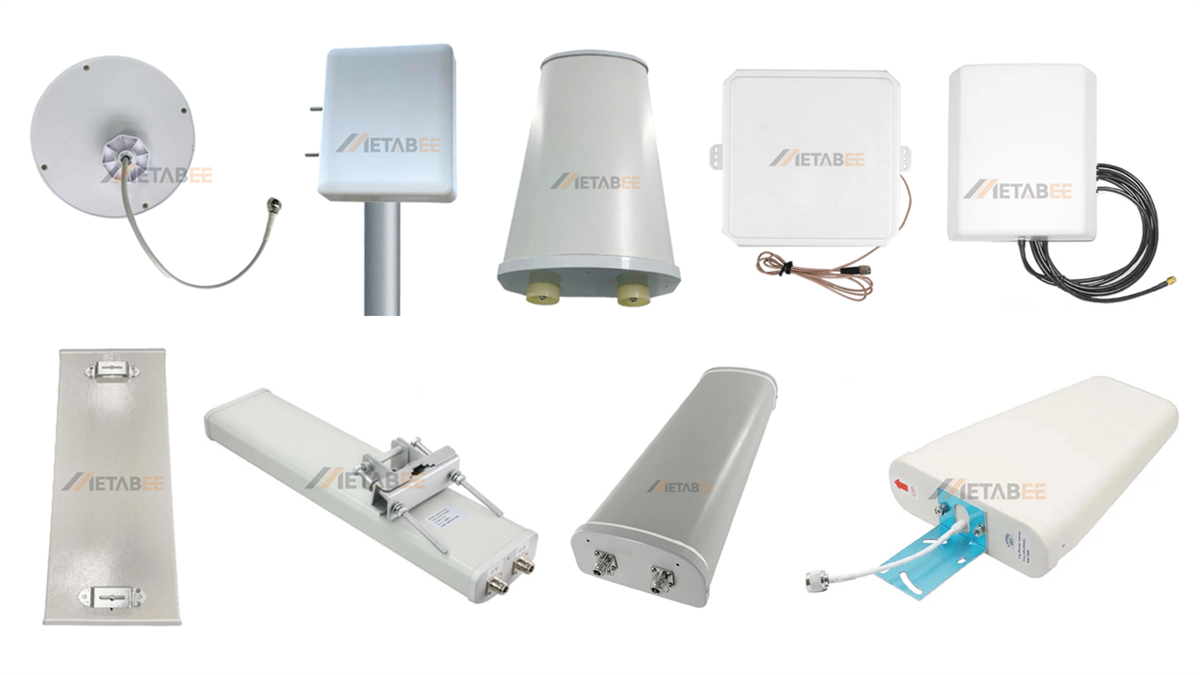

Panel antennas are a type of directional antenna designed with a flat-panel structure that focuses RF energy into a specific coverage area. It is widely used in wireless communication systems.
Here are some key applications:
- WiFi access points
- 4G/5G communication systems
- GPS/GNSS equipment
- RFID systems
- Wireless surveillance
- Industrial automation
- Smart transportation
- Point-to-point bridges
- IoT gateways
- Marine communication systems
