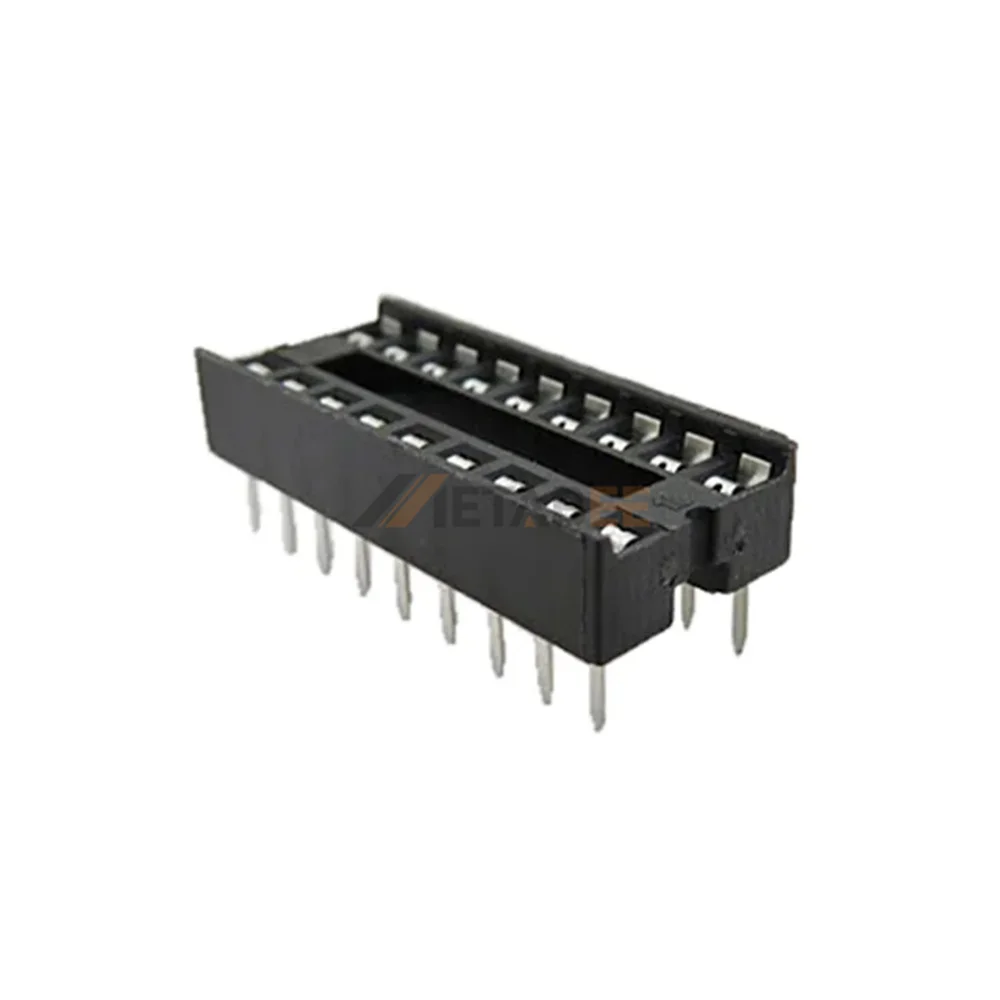

This 18 pin dual inline DIP socket provides a secure mounting platform for standard integrated circuits. Stamped contacts with a nickel-underplated tin finish ensure consistent electrical mating and low contact resistance. The THT solder tails provide reliable mechanical anchoring to the networking board. The housing is molded from glass-filled PBT to withstand high-temperature industrial wave soldering without any distortion. Utilizing a standard 2.54mm pitch and 7.62mm row spacing, this component fits common packages perfectly. Technicians utilize this modular interface to replace chips or update firmware easily. This solution also protects sensitive silicon from thermal damage during the initial assembly process.
Key Features
- DIP Configuration: Fits standard 18 pin dual-row packages.
- Stamped Contacts: Ensures reliable electrical mating and conductivity.
- THT Termination: Provides secure mechanical anchoring to the board.
- UL 94V-0 Material: Delivers high flame resistance and thermal stability.
Main Specifications:
General Information:
| Product No.: | ICS-318-T | |
| Product Type: | DIP Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 18 | |
| Contact Type: | Dual-Wipe Stamped | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | .300″ (7.62mm) |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Tin over Nickel underplate overall |
Electrical:
| Current rating: | 1 Amp max | |
| Operating voltage: | 250 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 5000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
DIP IC Socket Structure
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
