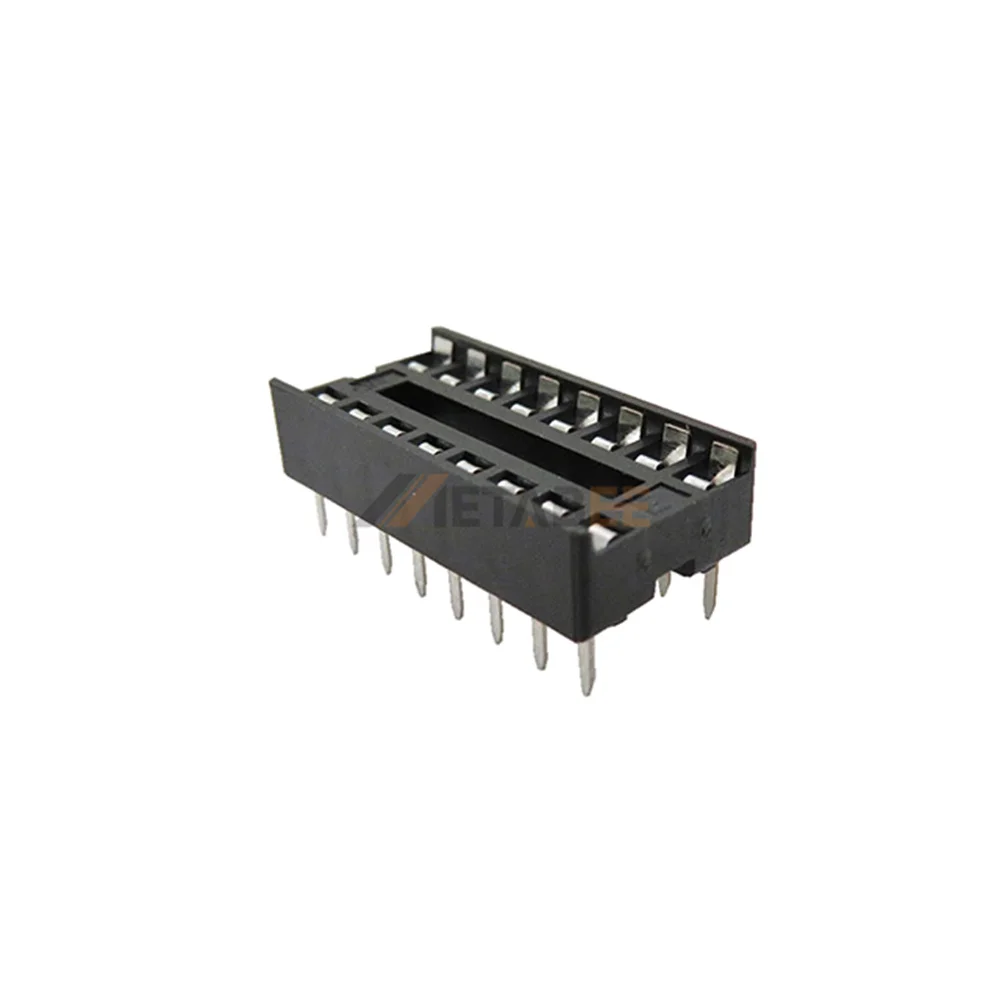

This 16 pin IC socket is a dual-row carrier designed for standard integrated circuits. It uses stamped contacts with a tin finish to ensure consistent electrical mating and low resistance. The THT solder tails provide a secure mechanical anchor to the PCB. Its durable glass-filled PBT housing survives high temperatures during industrial wave soldering without warping. Featuring a 2.54mm pitch and 7.62mm row spacing, the component fits common DIP packages perfectly. Technicians utilize this modular interface to replace chips or update firmware easily. This solution also protects sensitive silicon from thermal damage during the initial assembly process.
Key Features
- 16 Pin Configuration: Fits standard dual-row integrated circuit packages.
- Stamped Contacts: Ensures reliable electrical mating and signal integrity.
- THT Termination: Provides stable mechanical anchoring to the PCB.
- Standard Spacing: Features 2.54mm pitch and 7.62mm row spacing.
Main Specifications:
General Information:
| Product No.: | ICS-316-T | |
| Product Type: | DIP Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 16 | |
| Contact Type: | Dual-Wipe Stamped | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | .300″ (7.62mm) |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Tin over Nickel underplate overall |
Electrical:
| Current rating: | 1 Amp max | |
| Operating voltage: | 250 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 5000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
DIP IC Socket Structure
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
