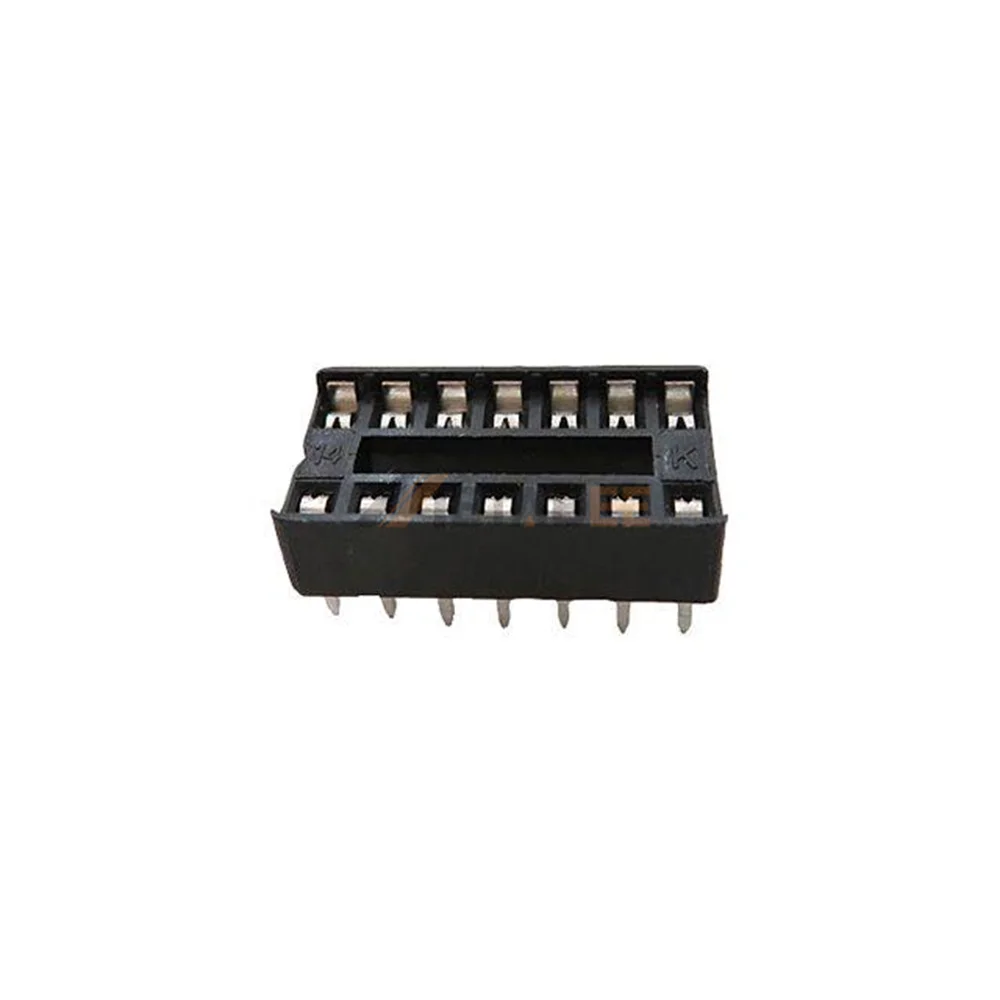

This 14 pin DIP IC socket provides a stable carrier for standard dual-row integrated circuits. It uses stamped Phosphor Bronze contacts with a Tin-over-Nickel finish for consistent electrical mating. The THT solder tails ensure a strong mechanical bond to the PCB. Its durable glass-filled PBT housing survives high temperatures during wave soldering without warping. Engineers utilize this modular interface to replace chips or update firmware easily. This solution also protects sensitive silicon from thermal damage during the initial assembly process.
Key Features
- 14 Pin Configuration: Fits standard dual-row integrated circuit packages.
- Stamped Contact Type: Ensures reliable electrical mating and low resistance.
- THT Solder Tails: Provides stable mechanical anchoring to the PCB.
- UL 94V-0 Material: Delivers high flame resistance and thermal stability.
- Standard Spacing: Features 2.54mm pitch and 7.62mm row spacing.
Main Specifications:
General Information:
| Product No.: | ICS-314-T | |
| Product Type: | DIP Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 14 | |
| Contact Type: | Dual-Wipe Stamped | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | .300″ (7.62mm) |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Tin over Nickel underplate overall |
Electrical:
| Current rating: | 1 Amp max | |
| Operating voltage: | 250 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 5000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
DIP IC Socket Structure
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
