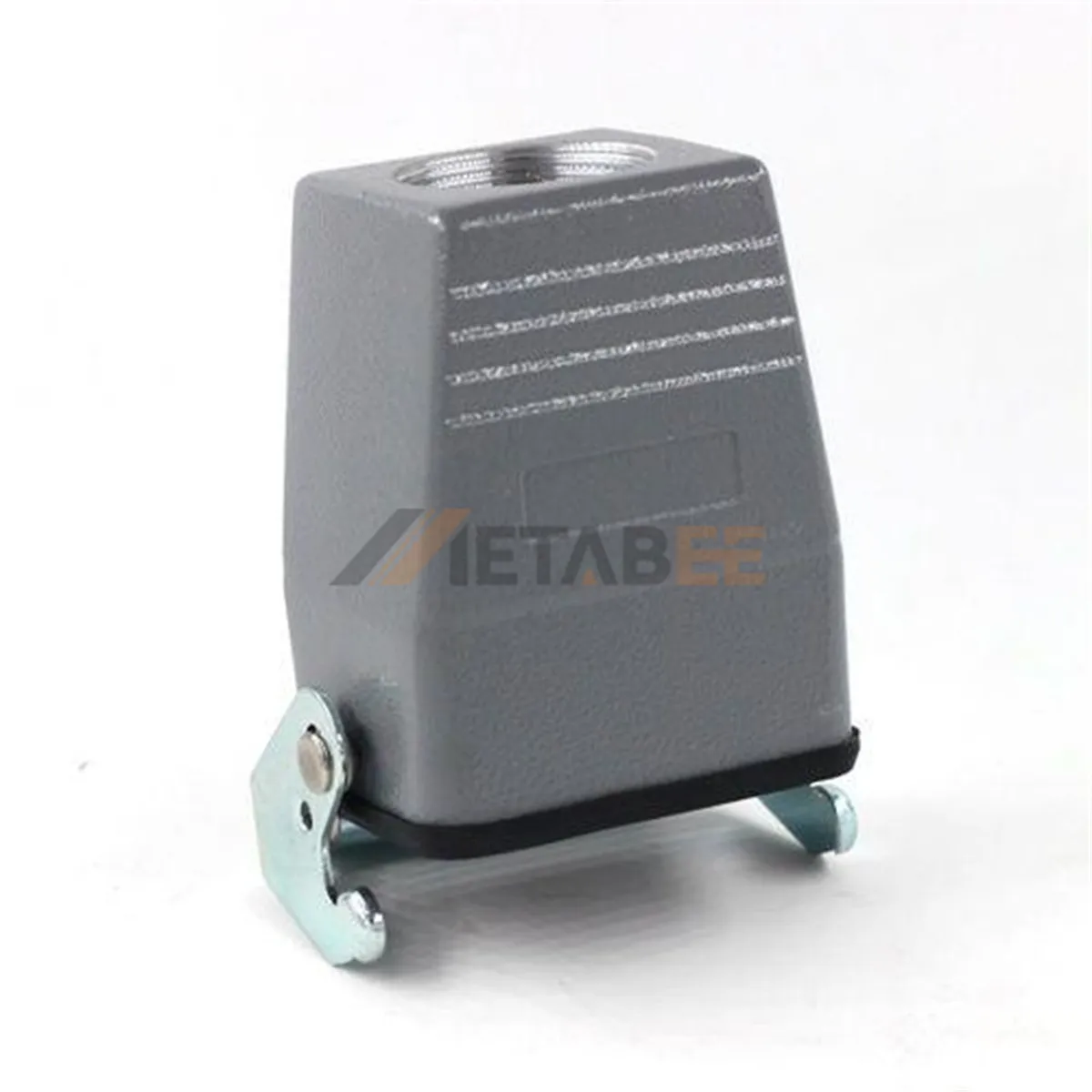

H6B Series High Construction Heavy Duty Connector Housing with Single Lever, Cable to Cable, Top Entry
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.
This H6B coupling housing is designed for cable-to-cable connections, functioning as the stationary half of an inline extension. Its high construction provides extra internal space, ideal for larger cables or easier wiring. The single locking lever is integrated into this housing to securely mate with a corresponding hood. The top entry accommodates vertical cable runs.
Main Specifications:
General Information:
| Product No.: | H6B-TBFH | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H6B Series | |
| Mounting Type: | Cable to Cable | |
| Cable Entry Angle: | Top Entry | |
| Housing/Hood Locking: | 1 Locking Lever | |
| Sealable: | N/A | |
| Thread Size: | PG21, PG29, M25, M32, M40 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Levers Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
