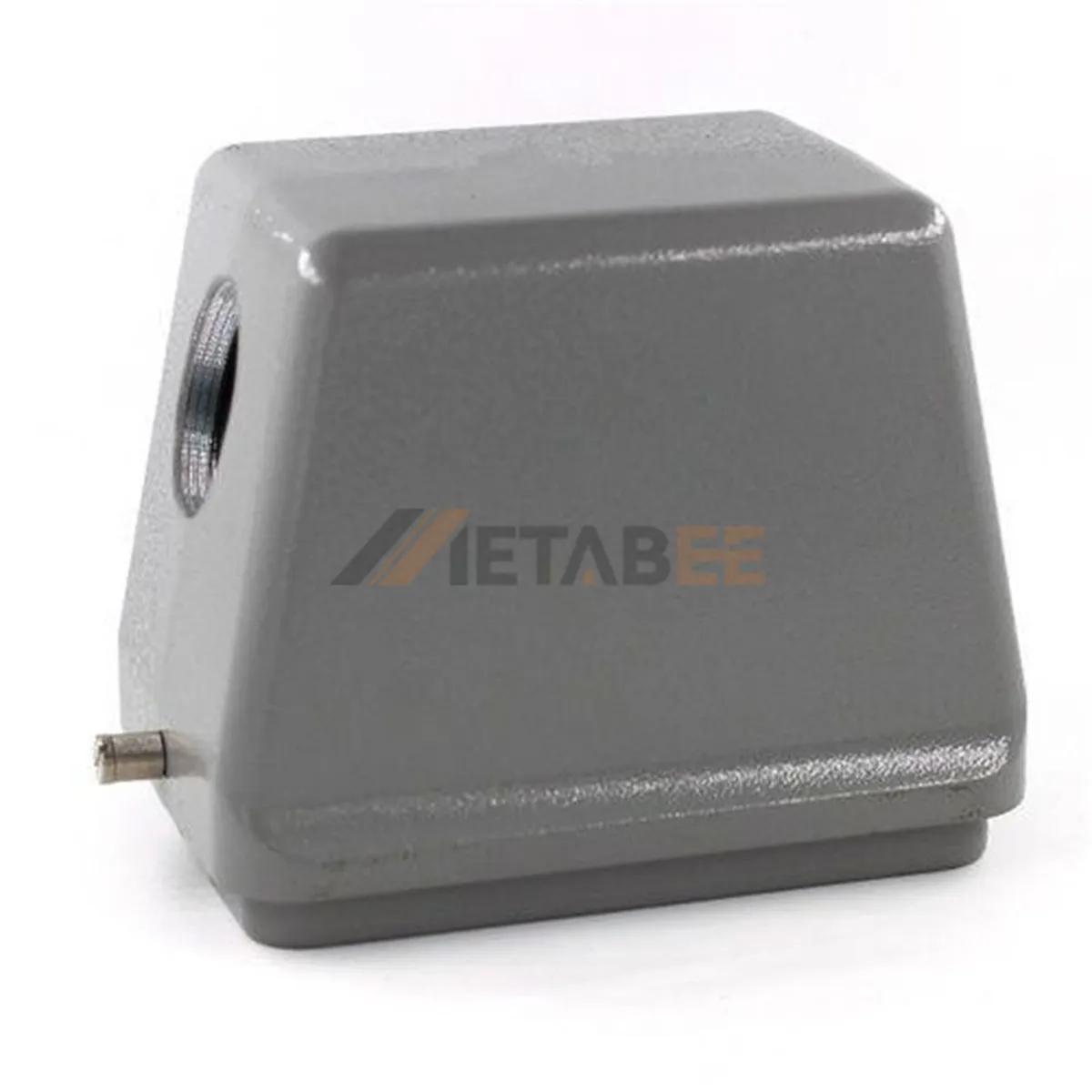

H48B Series Heavy Duty Connector Hood with 2 Bolts, Side Entry, Size 48B
Introduction:
The heavy-duty connector hoods are available in ten standard sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. They are made of aluminum die-cast material and provide reliable IP65 protection. Each hood features a robust locking interface and a built-in sealing gasket to ensure a secure connection with the matching housing. Multiple cable-entry directions and thread sizes are available to support different wiring layouts and installation needs.
This H48B hood is built to protect high-density connections in large-scale machinery. Its two-bolt system provides a balanced and secure hold, crucial for the large 48B size. A side entry port helps manage the substantial cable bundle, ensuring an organized and reliable installation.
Main Specifications:
General Information:
| Product No.: | H48B-TS | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Hoods | |
| Connector Series: | H48B Series | |
| Housing/Hood Size: | 48B | |
| Cable Entry Angle: | Side Entry | |
| Thread Size: | PG29, PG36, PG42, M32, M40, M50, M63 | |
| Locking Components: | 2 Bolts | |
| Housing/Hood Material: | Die-cast aluminum | |
| Hood Finish: | Powder Coated | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
