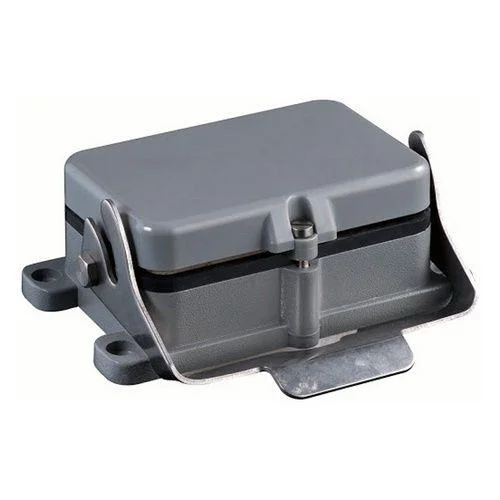

H32B Series Heavy Duty Connector Housing with Cover and Single Lever, Bulkhead Mounting, Bottom Entry
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.
This H32B housing allows for direct mounting through an enclosure wall. Its bottom entry facilitates routing cables from within a system. The single lever mechanism creates a powerful locking force, preventing accidental disconnection from the hood. This rugged housing is the foundation for a secure, panel-mounted connector assembly.
Main Specifications:
General Information:
| Product No.: | H32B-AD-LB | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H32B Series | |
| Mounting Type: | Bulkhead Mounting | |
| Cable Entry Angle: | Bottom Entry | |
| Housing/Hood Locking: | 1 Locking Lever | |
| Sealable: | With Cover | |
| Thread Size: | N/A | |
| Housing/Hood Material: | Die-cast aluminum | |
| Lever Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
