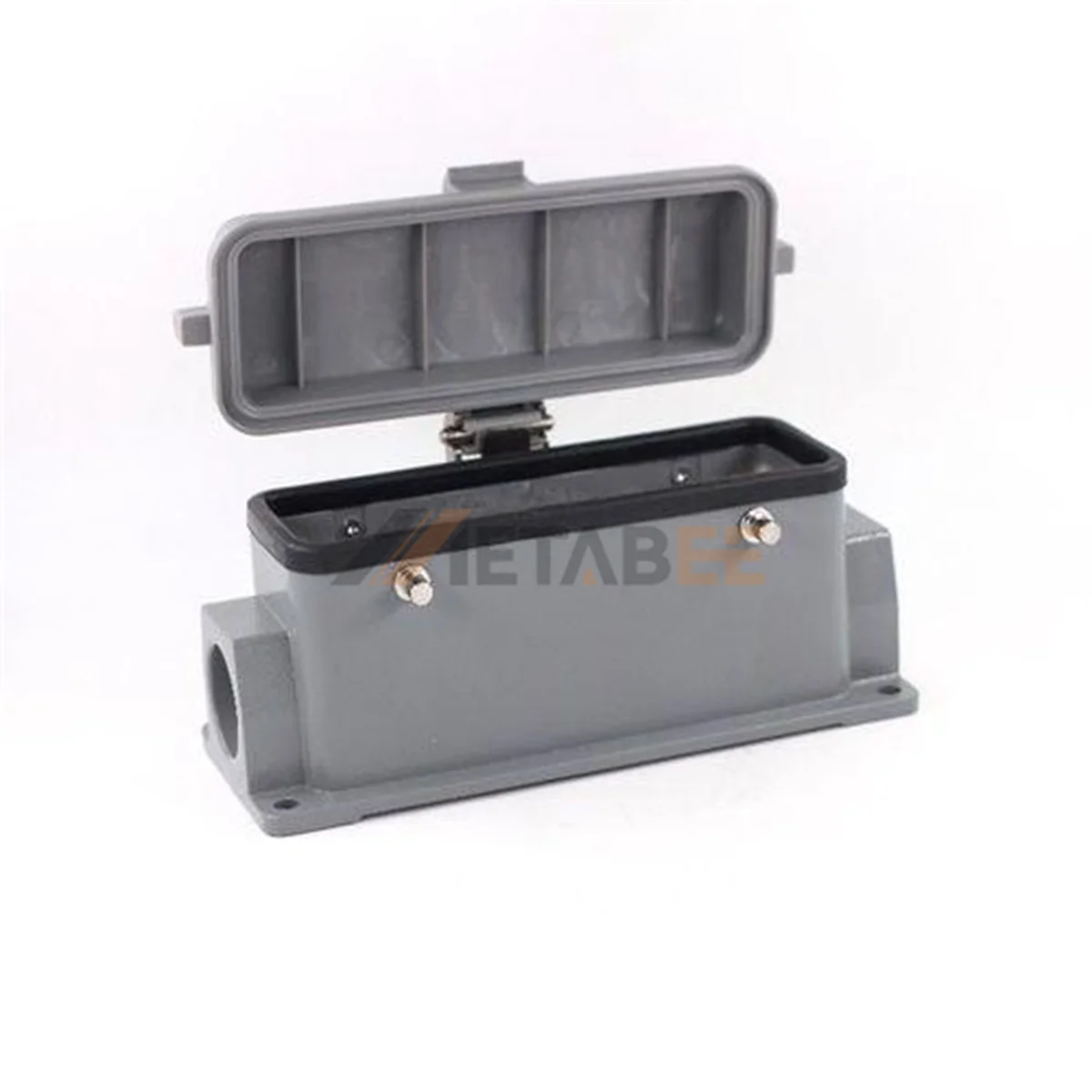

H24B Series Heavy Duty Connector Housing with Plastic Cover, Surface Mounting, Side Entry, 4 Bolts
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.
Engineered for surface mounting, this H24B housing is secured with four bolts. This provides high resistance to vibration. A plastic cover offers protection for the contacts when unmated. Cable installation is simplified by the side entry point. It is a durable base for fixed industrial connections on machinery or control cabinets.
Main Specifications:
General Information:
| Product No.: | H24B-SDR-BO | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H24B Series | |
| Mounting Type: | Surface Mounting | |
| Cable Entry Angle: | Side Entry | |
| Housing/Hood Locking: | 4 Bolts | |
| Sealable: | With Cover | |
| Thread Size: | PG21, 2PG21, M25, 2M25 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Lever Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
