H16B Series Surface Mounting Heavy Duty Connector Housing with Single Lever, High Construction, Side Entry
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.
This H16B series housing is designed for surface mounting. Its high construction profile provides ample space for wiring. The housing features a single lever for secure locking with a corresponding hood. A side entry port allows for convenient cable connection. It offers robust protection for electrical inserts in industrial environments.
Main Specifications:
General Information:
| Product No.: | H16B-SGR-LB | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H16B Series | |
| Mounting Type: | Surface Mounting | |
| Cable Entry Angle: | Side Entry | |
| Housing/Hood Locking: | 1 Locking Lever | |
| Sealable: | N/A | |
| Thread Size: | PG21, 2PG21, M25, 2M25, M32 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Lever Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector

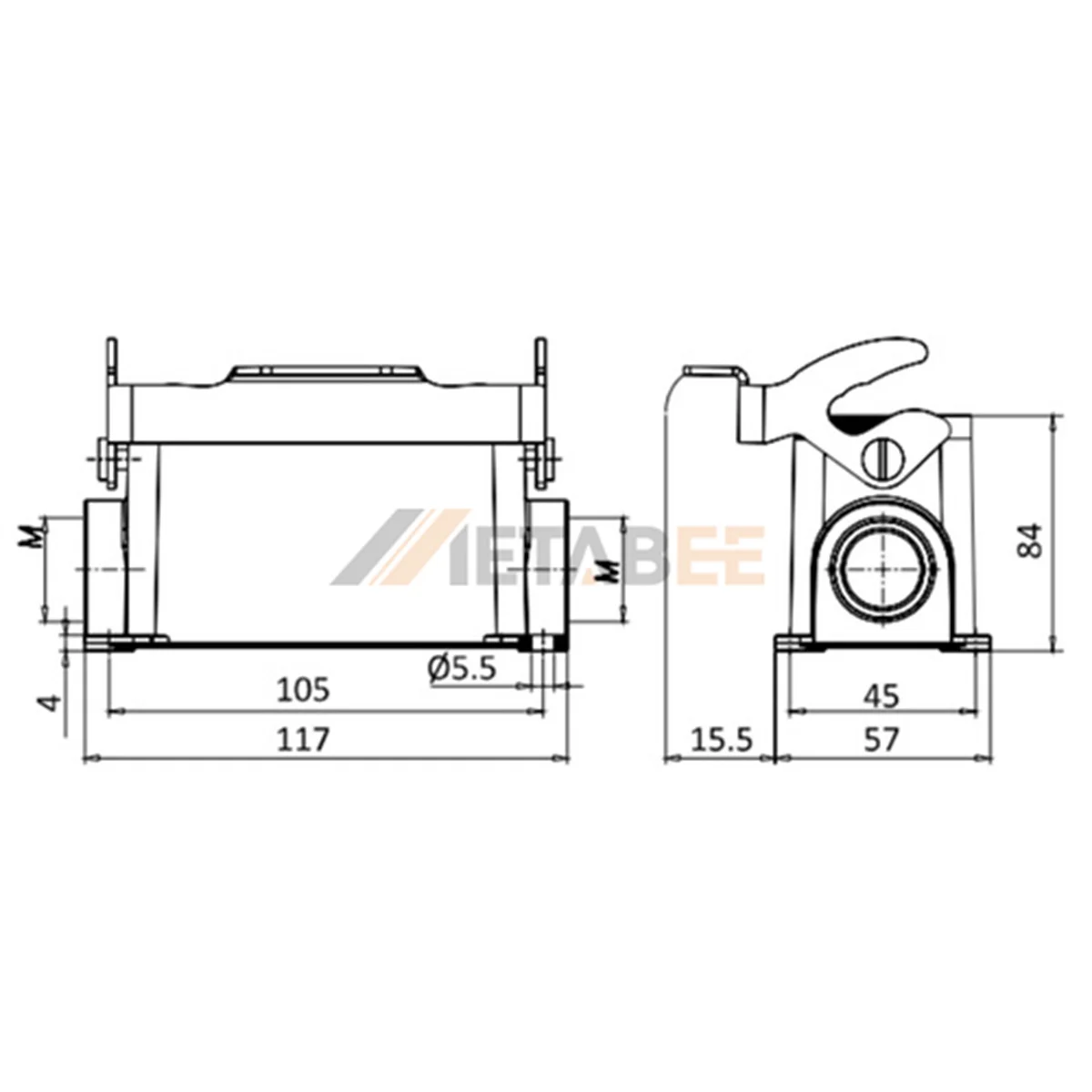

Hoods and Housings Example Diagram
Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
