H16B Series Heavy Duty Connector Housing with Double Lever, Bulkhead, Bottom Entry
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.

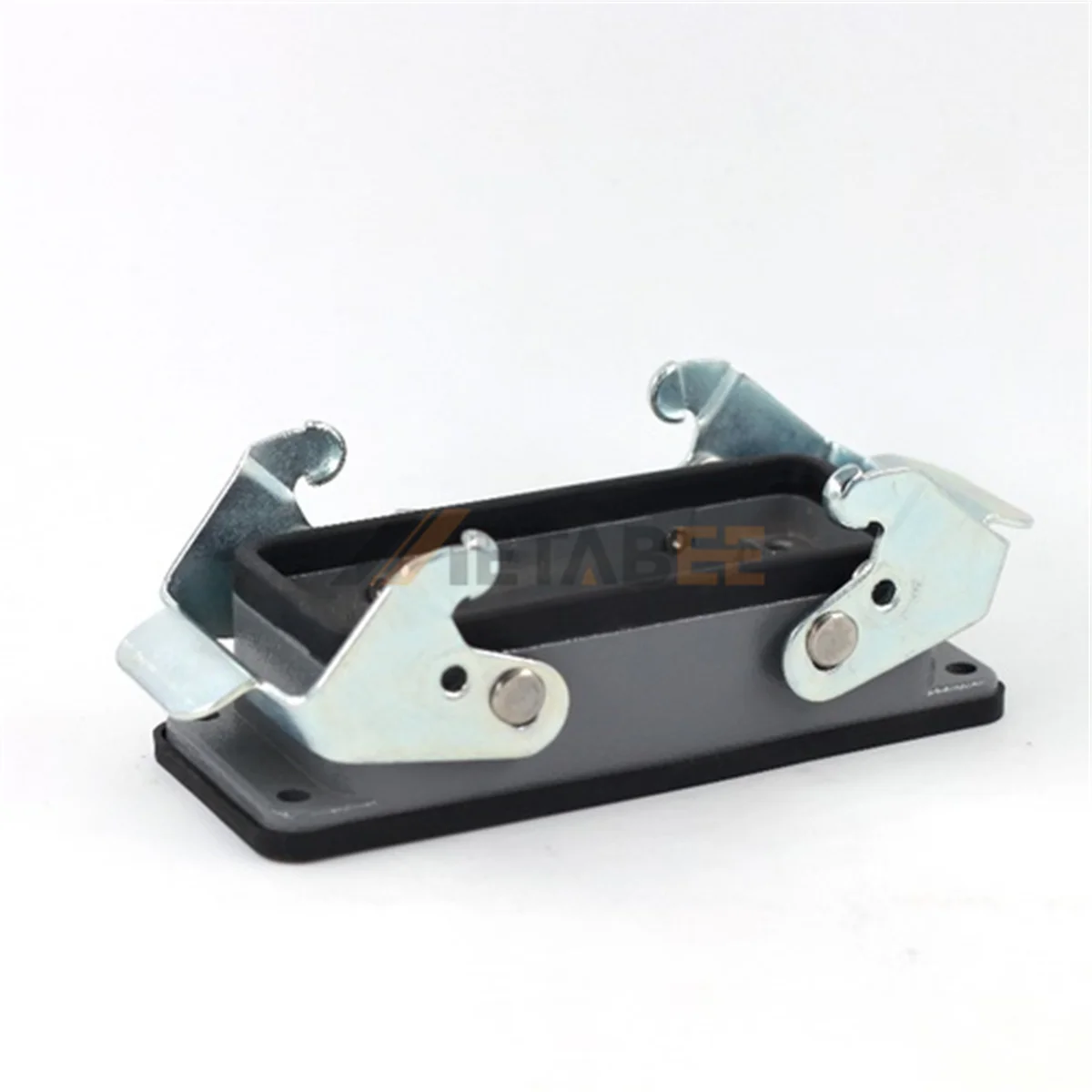

The H16B bulkhead mounting housing is the fixed half of a heavy duty coupling. Its design allows the cable to exit neatly via the bottom entry port, directly through the mounting surface. Two secure levers facilitate reliable mating and decoupling. The durable metal shell offers excellent mechanical and environmental protection for industrial control applications.
Main Specifications:
General Information:
| Product No.: | H16B-AG | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H16B Series | |
| Mounting Type: | Bulkhead Mounting | |
| Cable Entry Angle: | Bottom Entry | |
| Housing/Hood Locking: | 2 Locking Levers | |
| Sealable: | N/A | |
| Thread Size: | N/A | |
| Housing/Hood Material: | Die-cast aluminum | |
| Levers Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
