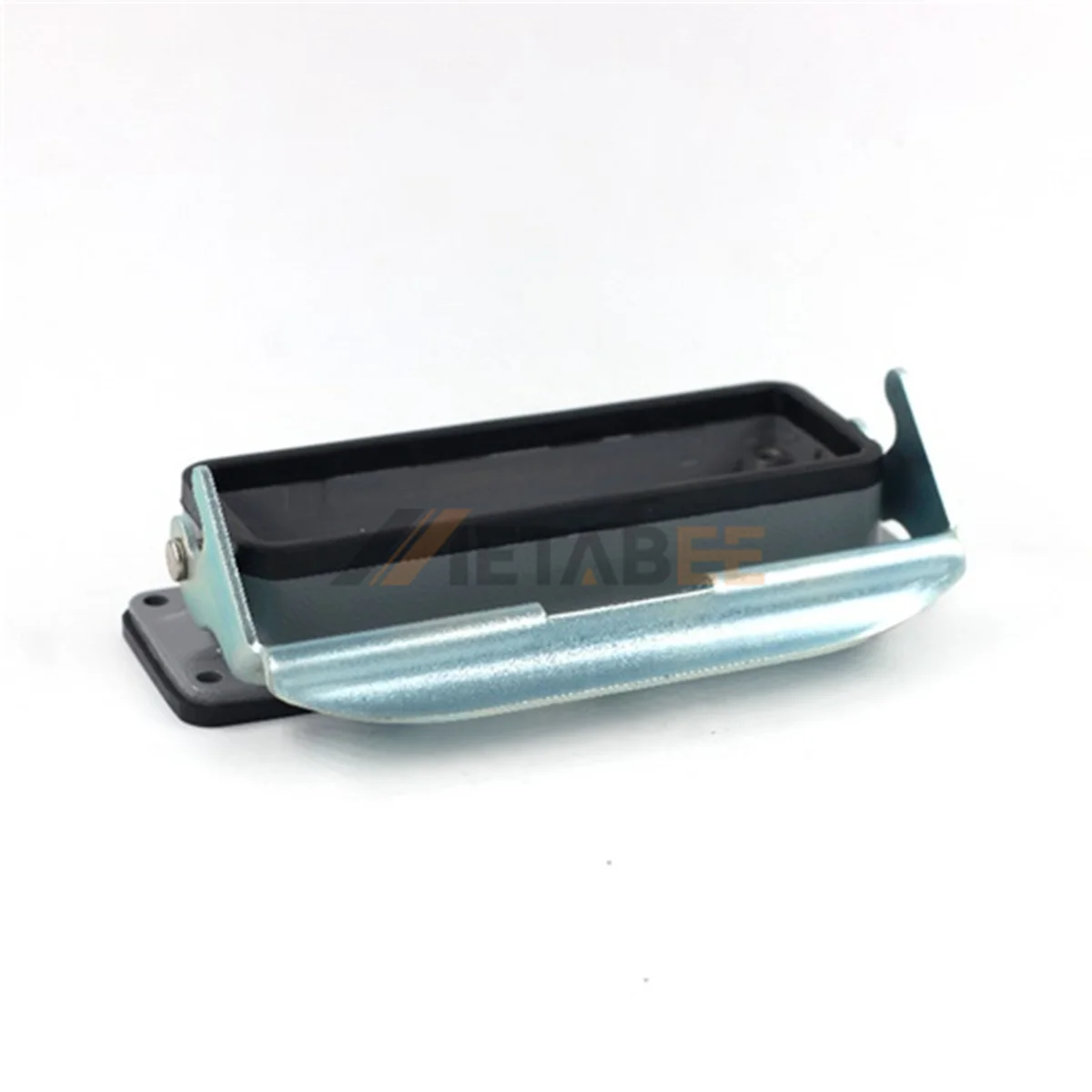

H16B Series Heavy Duty Connector Housing with Single Lever, Bulkhead Mounting, Bottom Entry
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.
The bulkhead mounting design of this H16B housing allows for direct integration into an enclosure wall. This is optimal for applications requiring a durable, fixed external interface that protects the internal system. A single lever secures the mating hood. The bottom entry accommodates straight cable runs from within the cabinet.
Main Specifications:
General Information:
| Product No.: | H16B-AG-LB | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H16B Series | |
| Mounting Type: | Bulkhead Mounting | |
| Cable Entry Angle: | Bottom Entry | |
| Housing/Hood Locking: | 1 Locking Lever | |
| Sealable: | N/A | |
| Thread Size: | N/A | |
| Housing/Hood Material: | Die-cast aluminum | |
| Levers Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
