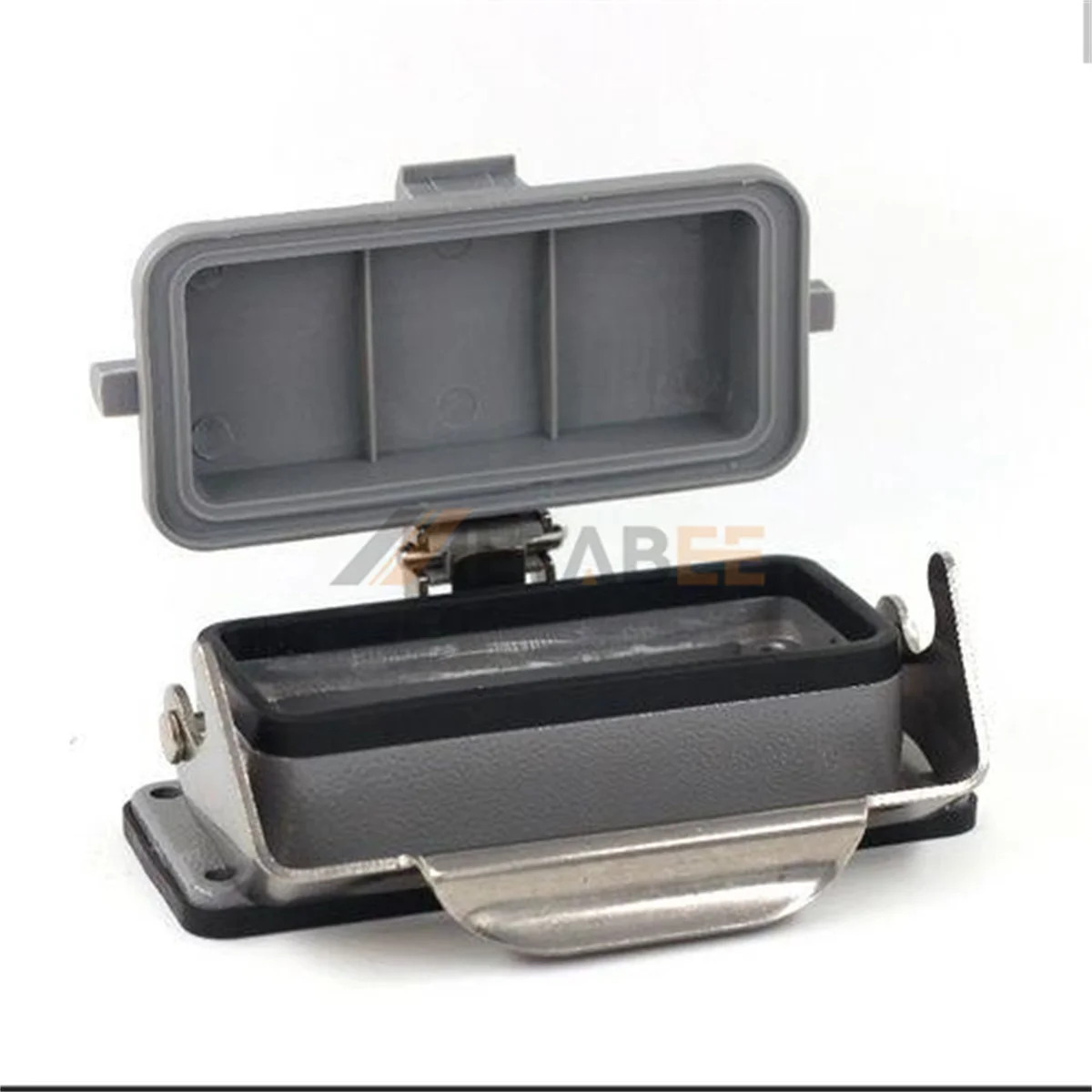

H16B Series Heavy Duty Connector Housing with Plastic/Metal Cover, Bulkhead, Bottom Entry, 1 Locking Lever
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.
A reliable H16B bulkhead shell for industrial installations. It enables bottom cable routing directly through the mounting plate. The single integrated lever simplifies the locking and unlocking operation. This durable component, along with its removable cover, is standard for establishing a robust, yet easily accessible, sealed electrical interface on any cabinet or machine.
Main Specifications:
General Information:
| Product No.: | H16B-AD-LB, H16B-ADM-LB | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H16B Series | |
| Mounting Type: | Bulkhead Mounting | |
| Cable Entry Angle: | Bottom Entry | |
| Housing/Hood Locking: | 1 Locking Lever | |
| Sealable: | With Cover | |
| Thread Size: | N/A | |
| Housing/Hood Material: | Die-cast aluminum | |
| Levers Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
