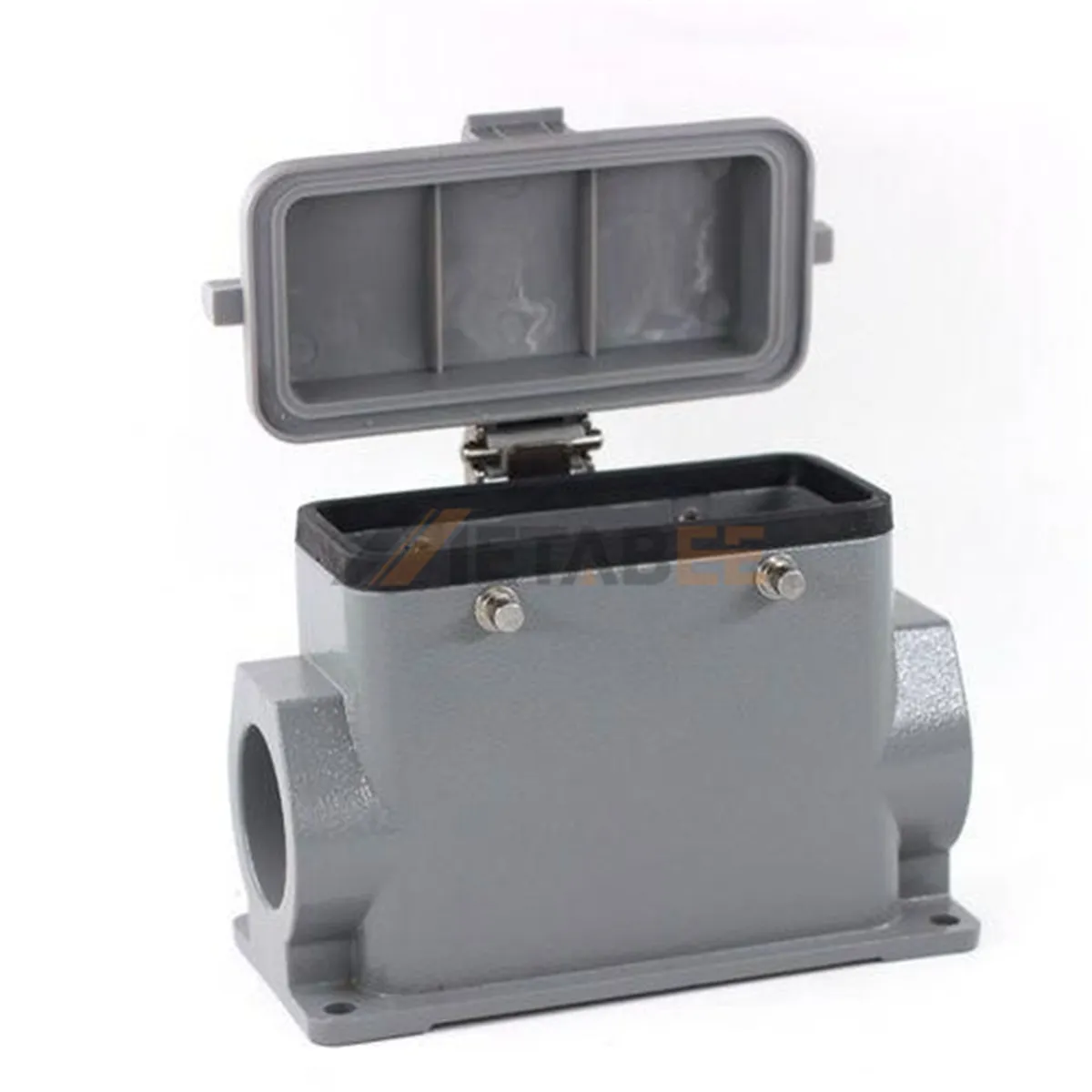

H10B Series Heavy Duty Connector Housing with Plastic Cover and 4 Bolts, Surface Mounting, Side Entry
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.
This H10B housing uses a surface mounting design, ideal for adding a fixed I/O point without a large panel cutout. It utilizes a four-bolt locking system for a highly secure, vibration-proof connection. The integrated plastic cover protects the contacts when unmated, and the side entry port is designed for low-profile cable routing.
Main Specifications:
General Information:
| Product No.: | H10B-SDR-BO | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H10B Series | |
| Mounting Type: | Surface Mounting | |
| Cable Entry Angle: | Side Entry | |
| Housing/Hood Locking: | 4 Bolts | |
| Sealable: | With Cover | |
| Thread Size: | 2PG16, 2M20, M25, 2M25 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Levers Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |

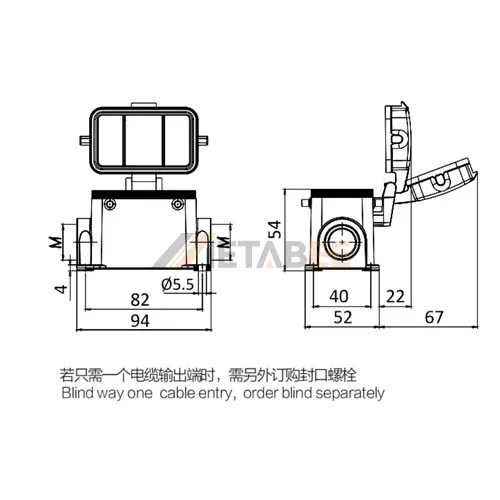

Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
