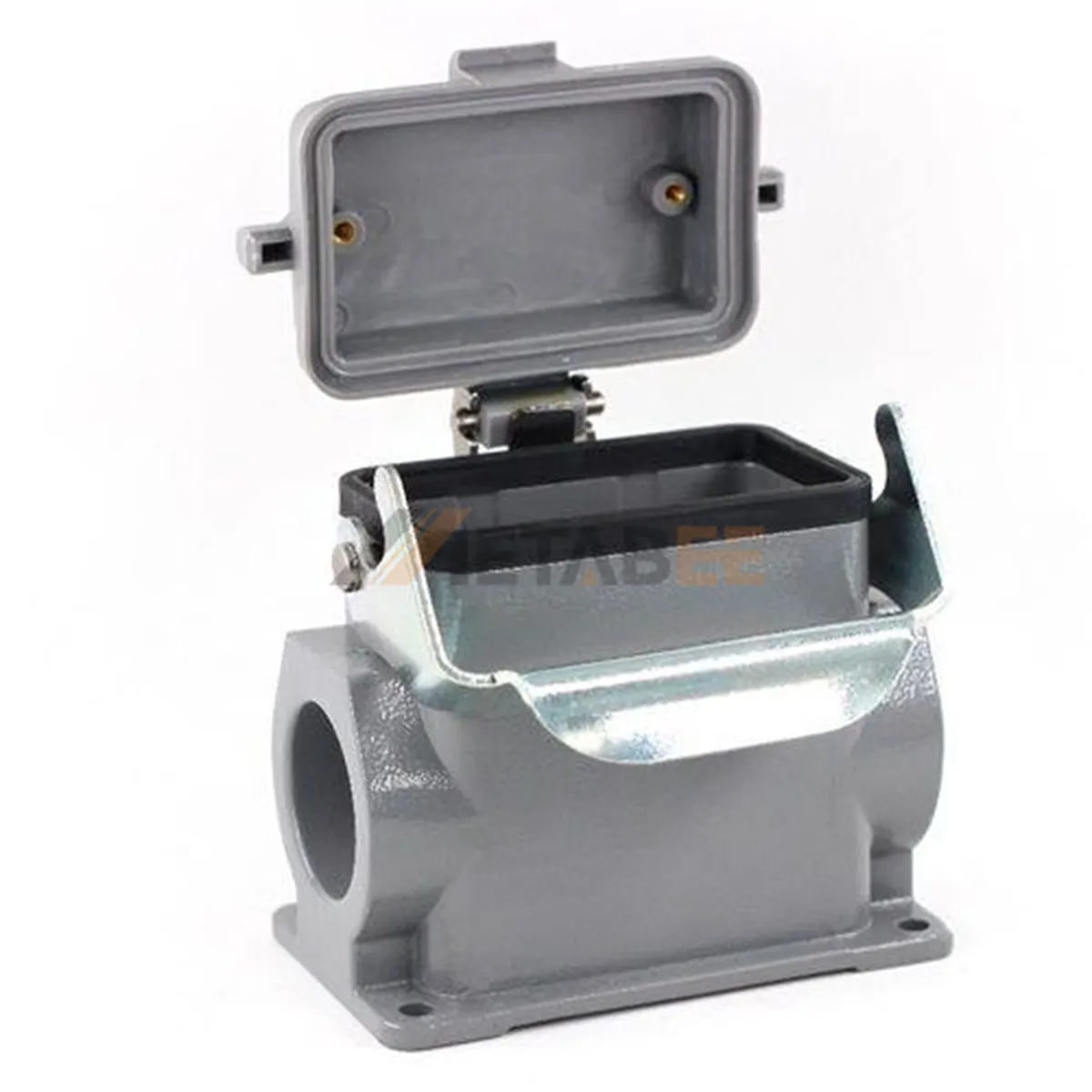

H10B Series Heavy Duty Connector Housing with Plastic Cover, Surface Mounting, Side Entry, 1 Locking Lever
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.
This H10B surface mount housing provides a durable connection base for control cabinets. The integrated plastic cover prevents debris from accumulating in the insert, which extends the operational life of the connection point. The single locking lever provides a strong, reliable mate, and the side entry design facilitates organized horizontal wiring.
Main Specifications:
General Information:
| Product No.: | H10B-SDR-LB | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H10B Series | |
| Mounting Type: | Surface Mounting | |
| Cable Entry Angle: | Side Entry | |
| Housing/Hood Locking: | 1 Locking Lever | |
| Sealable: | With Cover | |
| Thread Size: | PG16, 2PG16, M20, 2M20, M25, 2M25 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Levers Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector

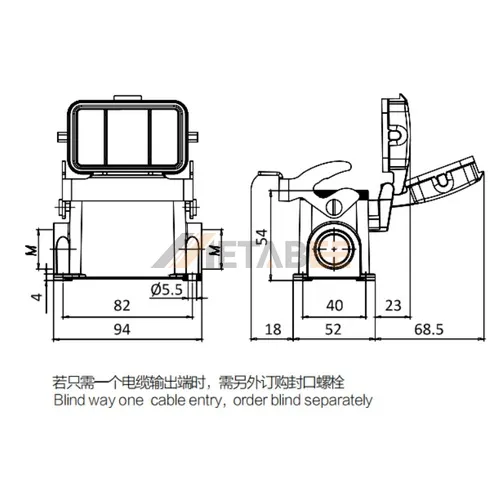

Hoods and Housings Example Diagram
Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
