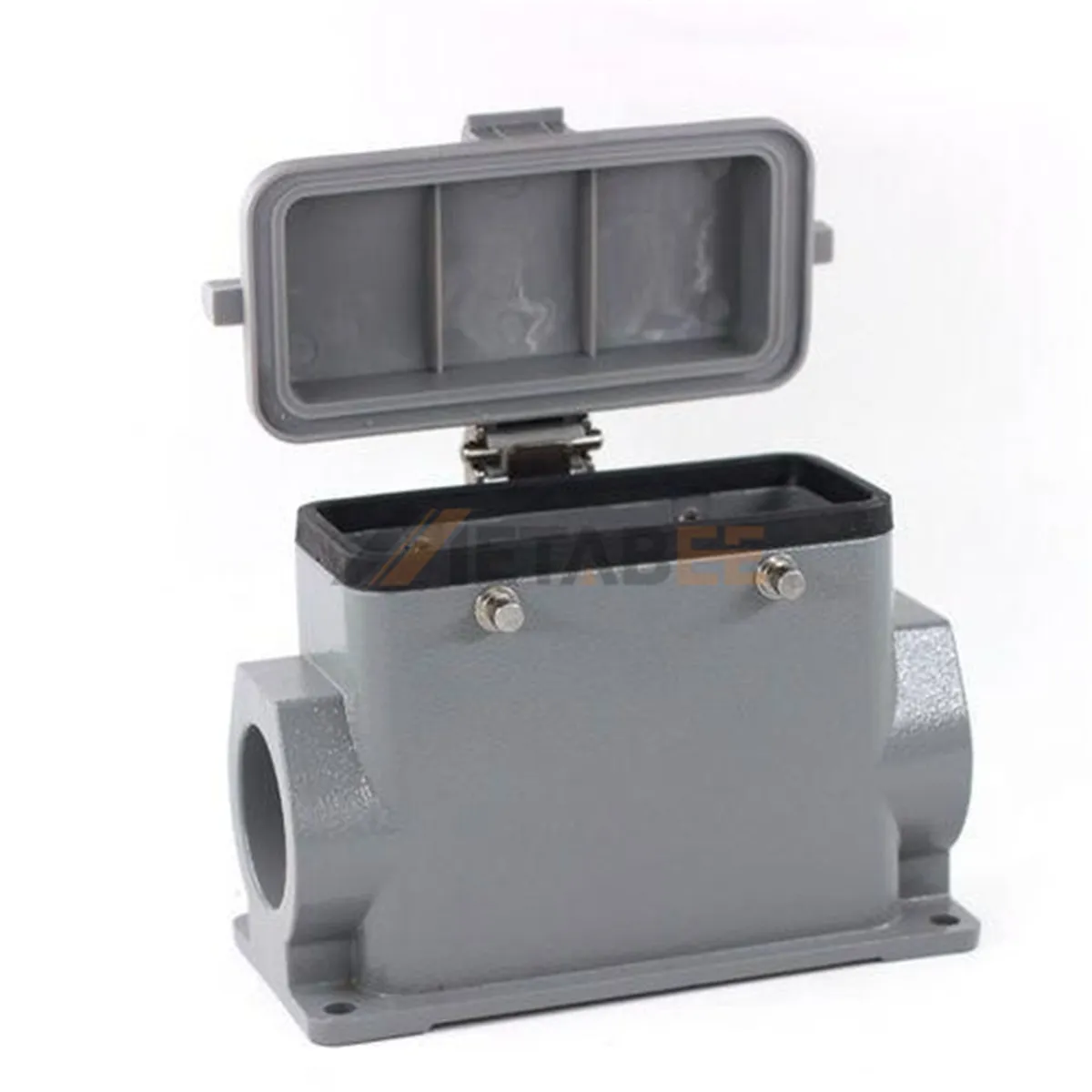

H10B Series Heavy Duty Connector High Construction Housing with Plastic Cover and 4 Bolts, Surface Mounting, Side Entry
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.
This H10B housing is designed for surface mounting, providing a stable, fixed base on machinery. Its four-bolt locking mechanism is suitable for high-vibration environments. The high construction adds internal clearance for easier wiring, while the attached plastic cover protects the insert when not in use. The side entry routes cables parallel to the surface.
Main Specifications:
General Information:
| Product No.: | H10B-SDRH-BO | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H10B Series | |
| Mounting Type: | Surface Mounting | |
| Cable Entry Angle: | Side Entry | |
| Housing/Hood Locking: | 4 Bolts | |
| Sealable: | With Cover | |
| Thread Size: | 2PG16, 2M20, M25, 2M25 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Levers Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
