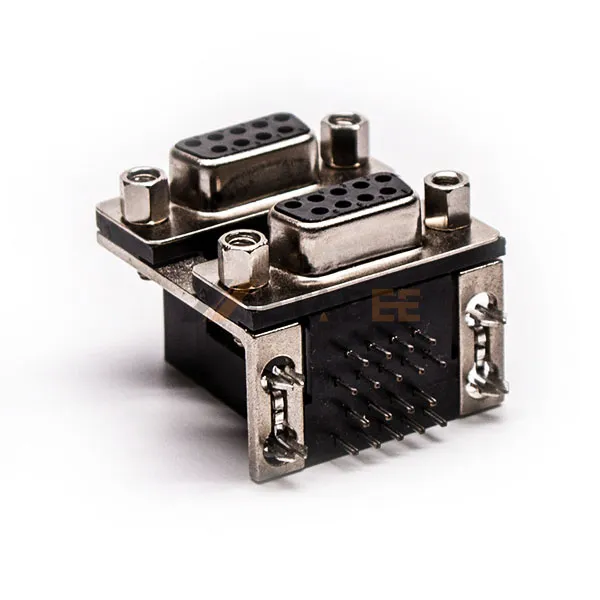

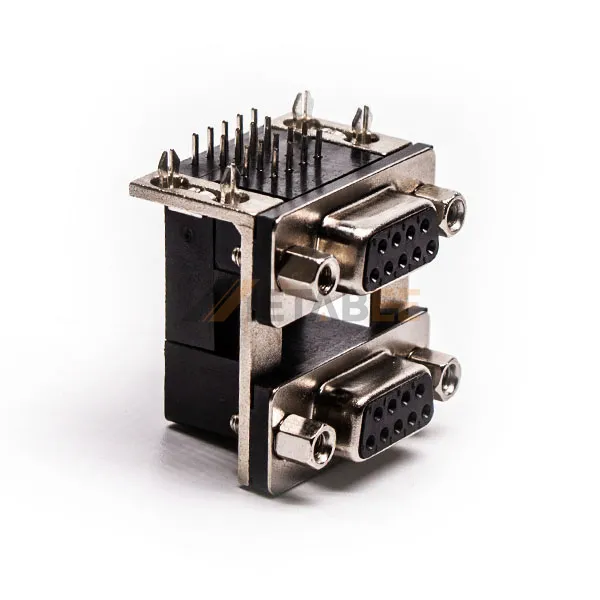

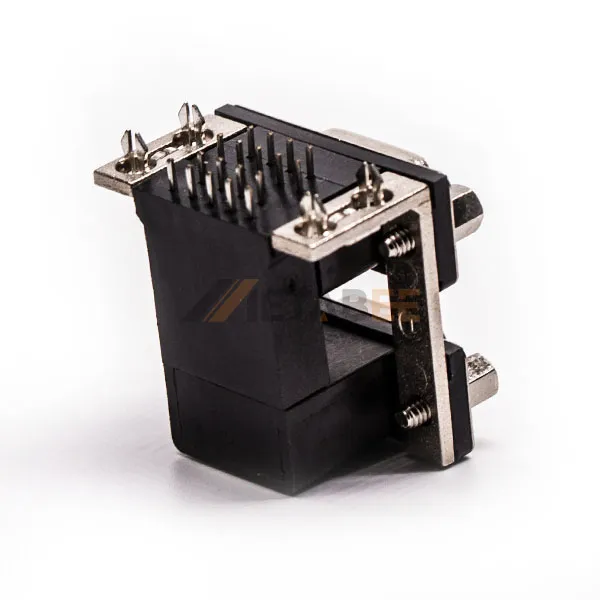

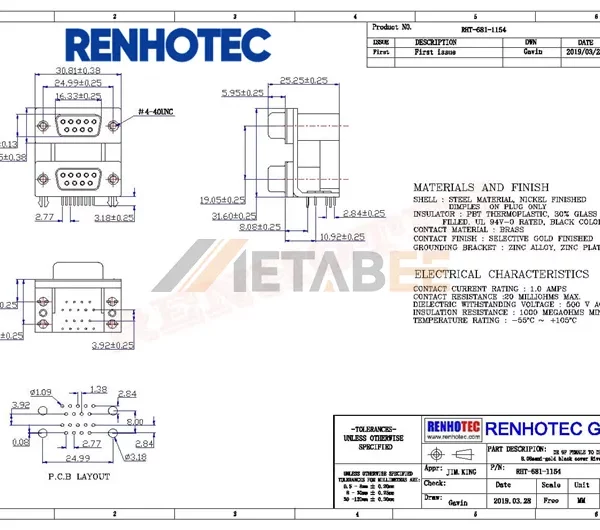

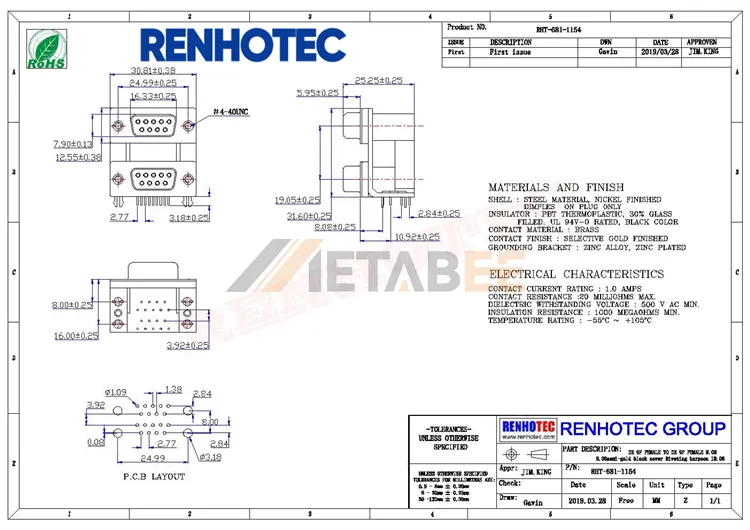

Dual-Port Stacked D-Sub 9 Pin Female Connector for PCB Mount, Through Hole
Introduction:
This stacked D-sub 9 pin female connector vertically integrates two 90-degree angled connectors, maximizing the use of limited PCB space and enabling multiple connector interfaces. Constructed of high-temperature-resistant thermoplastic and meeting the UL94 V-0 flame retardant standard, the connector ensures high reliability and safety in a variety of industrial applications. This connector features affordable stamped terminals. This model features dual 9-pin female headers, secure through-hole mounting, and optional mounting hardware to accommodate diverse panel mounting requirements.
This stacked D-sub 9 pin female connector has many great features, including:
- Doubled I/O Port: Integrated dual-port design saves valuable PCB space, ideal for high-density applications.
- Right-Angle Design: Saves critical vertical space, optimizing layouts for compact devices.
- Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
- Precision Machined Contacts: Gold-plated brass contacts offer superior conductivity and long-term corrosion resistance.
- Wide Operating Temperature: Reliable performance in extreme conditions, from -55°C to +105°C.
- Metal Shielding Shell: Provides excellent EMI shielding and robust protection against shock and vibration.
Main Specifications:
General Information:
| Product Number: | YC-681-1154 | |
| Connector Series: | Stacked D-Sub | |
| Orientation: | Right Angle | |
| Connector Gender: | Female | |
| Number of Contacts: | 9 Pin | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | Solder | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Nickel Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 25 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of the stacked D-sub 9 pin female connector:
- Industrial PCs and Single-Board Computers;
- PLCs and Motion Controllers;
- Medical and Scientific Instruments;
- Point of Sale (POS) and Kiosk Systems;
- Broadcasting & Satellite Communications;
- Transportation Systems;
