Dual Port D-Sub 37 Pin R/A Connector, Male and Female, PCB Mount, Through Hole

Dual Port D-Sub 37 Pin R/A Connector, Male and Female, PCB Mount, Through Hole

Introduction:

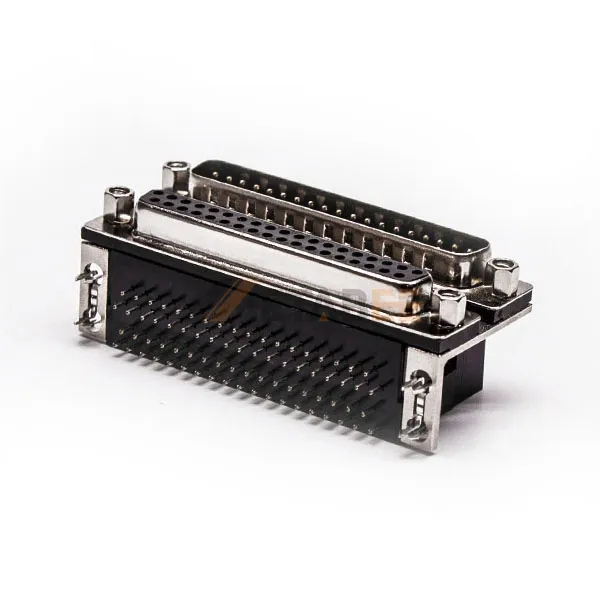

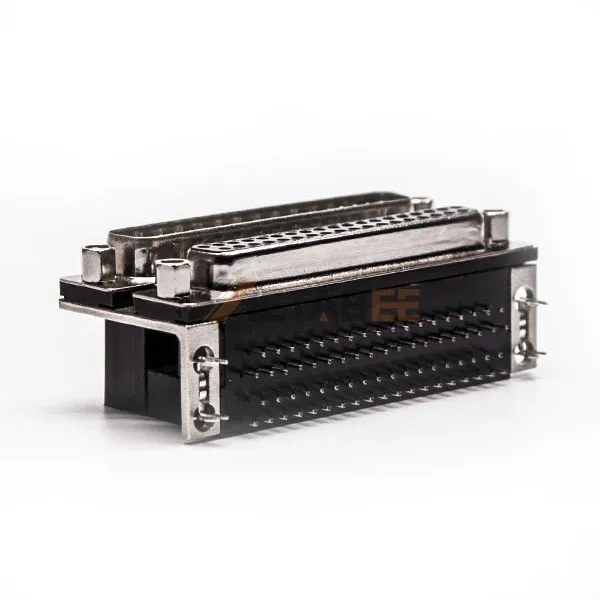

This dual-port D-sub 37 pin connector vertically integrates two 90-degree angled connectors, maximizing the use of limited PCB space and enabling multiple connector interfaces. Constructed of high-temperature-resistant thermoplastic and meeting the UL94 V-0 flame retardant standard, the connector ensures high reliability and safety in a variety of industrial applications. This connector features affordable stamped terminals. The model is a stacked D-Sub connector featuring one 37-pin male and one 37-pin female interface, secure through-hole mounting, and optional mounting hardware to accommodate diverse panel mounting requirements.

This dual-port D-sub 37 pin connector has many great features, including:

• Doubled I/O Port: Integrated dual-port design saves valuable PCB space, ideal for high-density applications.
• Right-Angle Design: Saves critical vertical space, optimizing layouts for compact devices.
• Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
• Precision Machined Contacts: Gold-plated brass contacts offer superior conductivity and long-term corrosion resistance.
• Wide Operating Temperature: Reliable performance in extreme conditions, from -55°C to +105°C.
• Metal Shielding Shell: Provides excellent EMI shielding and robust protection against shock and vibration.

Main Specifications:

General Information:

Materials and Plating:

Electrical Performance:

Environmental Performance:

Applications of the dual-port D-sub 37 pin connector:

• Industrial PCs and Single-Board Computers;
• PLCs and Motion Controllers;
• Medical and Scientific Instruments;
• Point of Sale (POS) and Kiosk Systems;
• Broadcasting & Satellite Communications;
• Transportation Systems;
