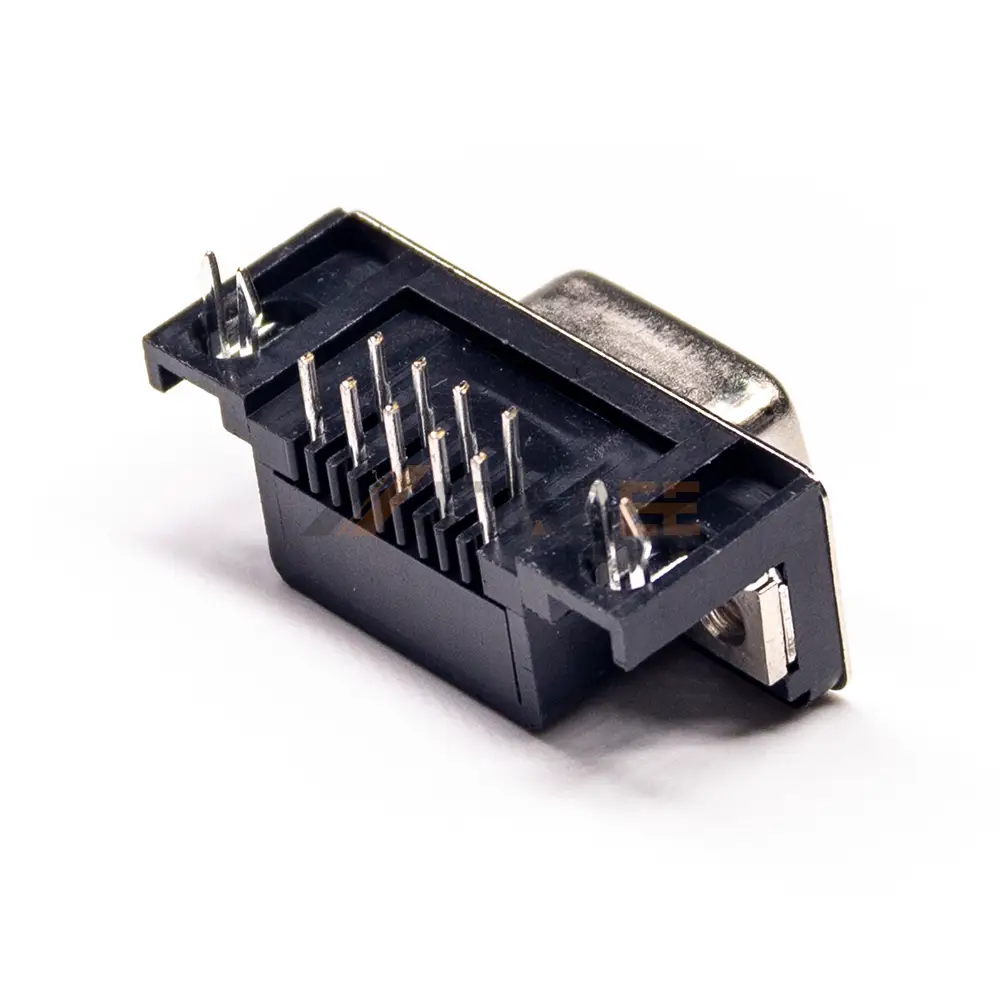

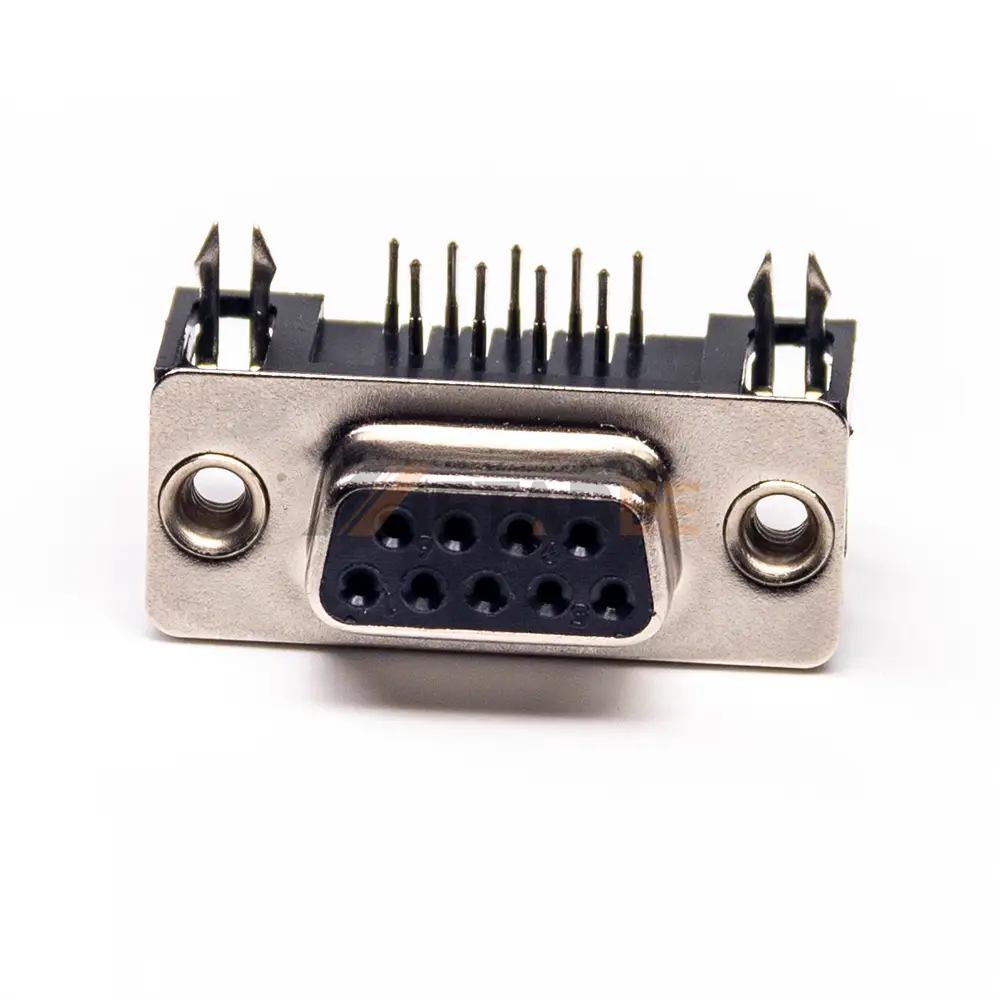

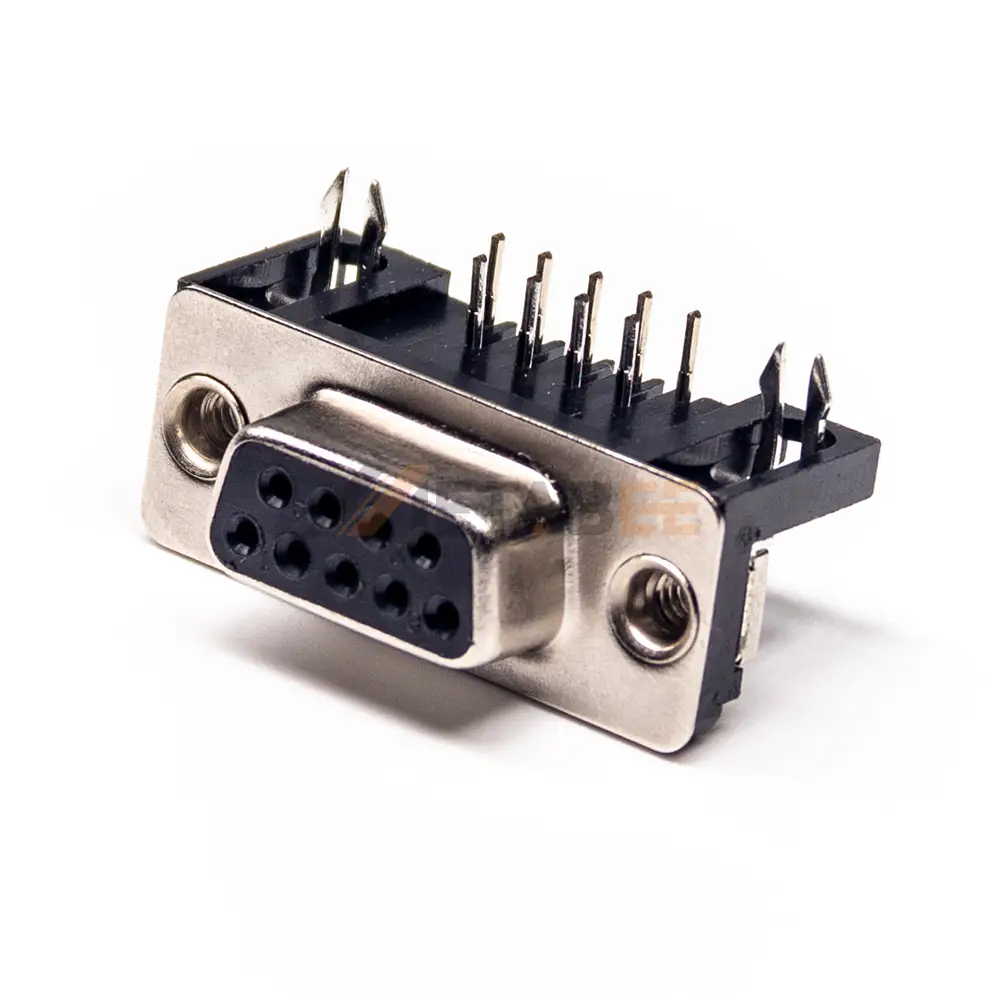

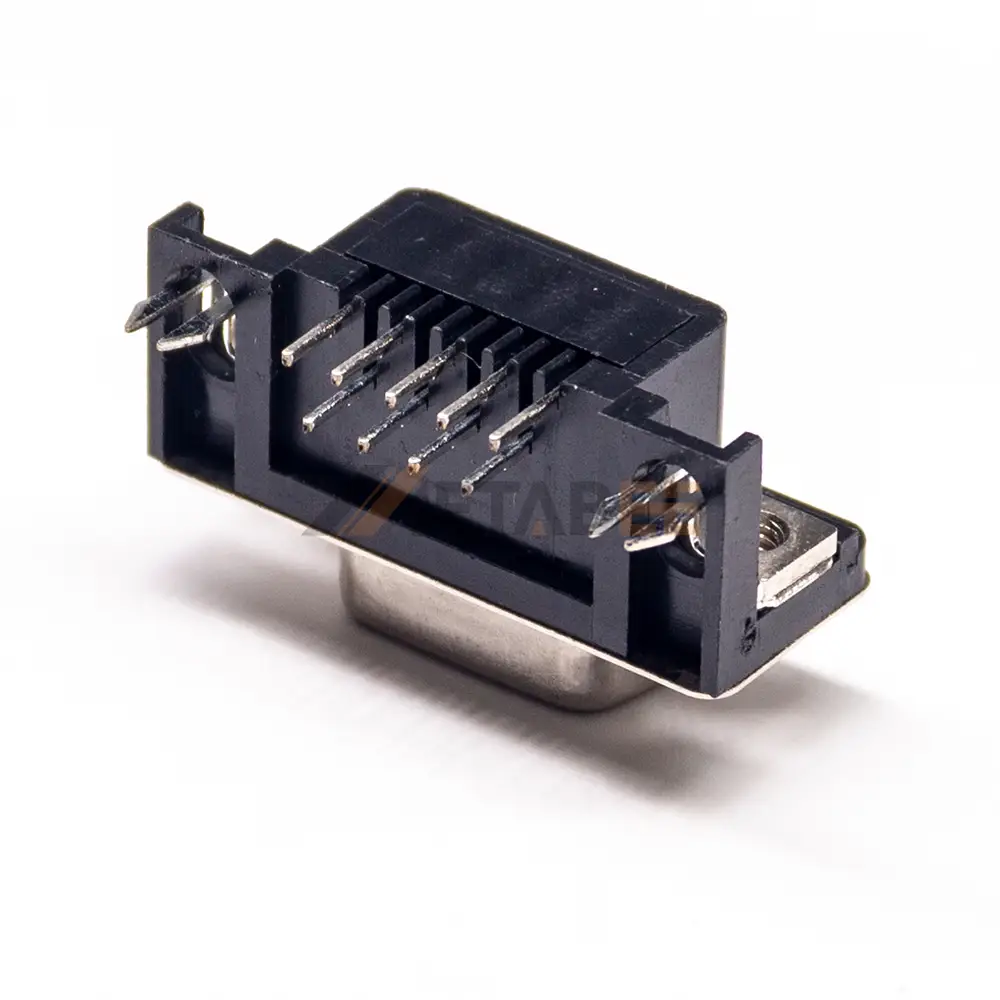

D-Sub DB9 Right Angle Female Connectors For PCB Mount, Through Hole, 2.77mm Pitch, IP20

D-Sub DB9 Right Angle Female Connectors For PCB Mount, Through Hole, 2.77mm Pitch, IP20

Introduction:

This D-sub DB9 right angle female connector is designed for PCB mounting. Its 90-degree orientation is perfect for space-constrained designs where cables need to exit parallel to the board. It uses the through-hole mounting method, creating a strong and reliable solder joint for excellent mechanical stability. The connector features tin-plated contacts, offering an economical and dependable connection. A durable steel shell protects it from physical stress. It’s an ideal choice for adding a standard serial port to industrial controls or embedded systems.

Engineered for both safety and easy integration, this D-sub DB9 right angle female connector includes the following key features:

• Right Angle Orientation: Saves vertical space by exiting cables parallel to the PCB.
• PCB Through-Hole Mount: Provides a strong, permanent mechanical bond to the circuit board
• Solder Termination: Creates a permanent electrical connection by soldering the pins to the PCB traces.
• IP20 Rating: Ensures touch-proof safety for use in standard indoor equipment.
• Durable Steel Shell: Offers robust physical protection and basic EMI shielding for the connection.

Main Specifications:

General Information:

Materials and Plating:

Electrical Performance:

Environmental Performance:

Applications of this D-sub DB9 right angle female connector:

• Industrial Automation;
• Serial Communication;
• Telecommunications;
• Test & Measurement Equipment;
• Computer Peripherals;
• Robotics and CNC Machine Control;
• Prototyping and Custom Assemblies;
• Medical and Laboratory Equipment;
