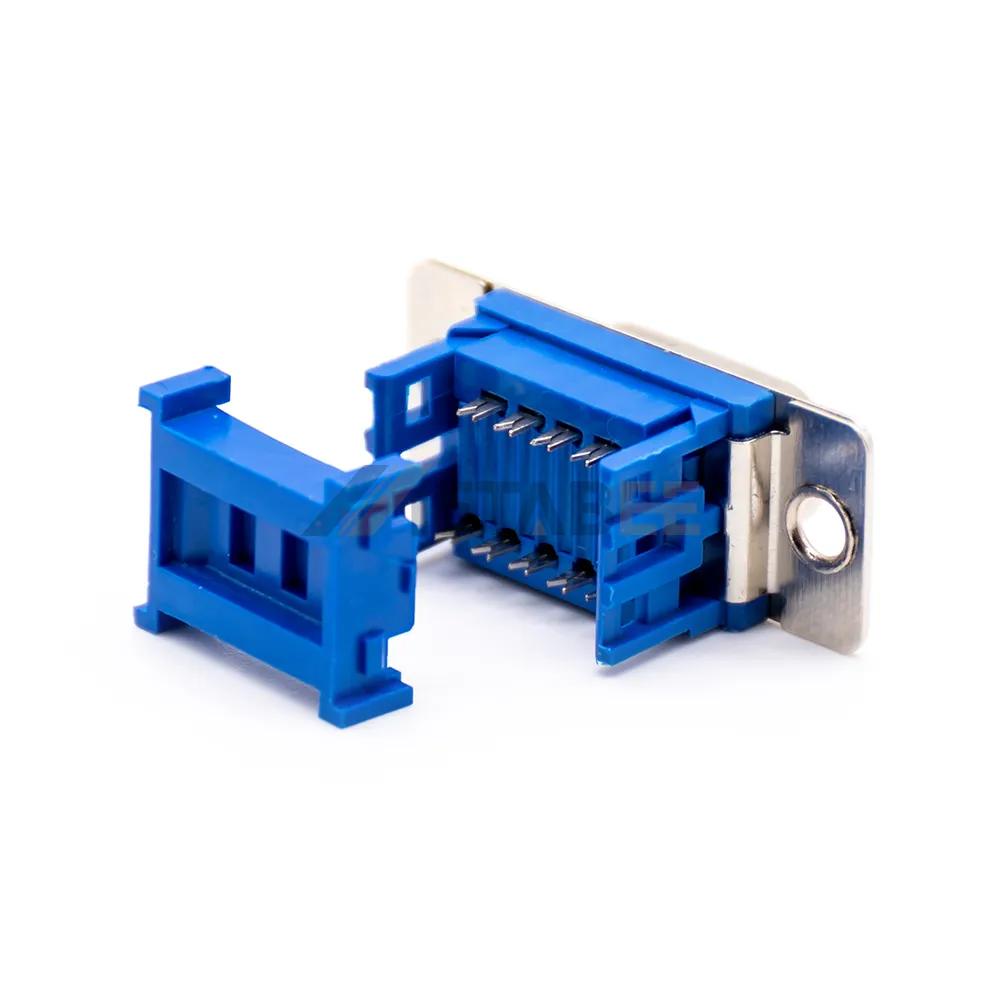

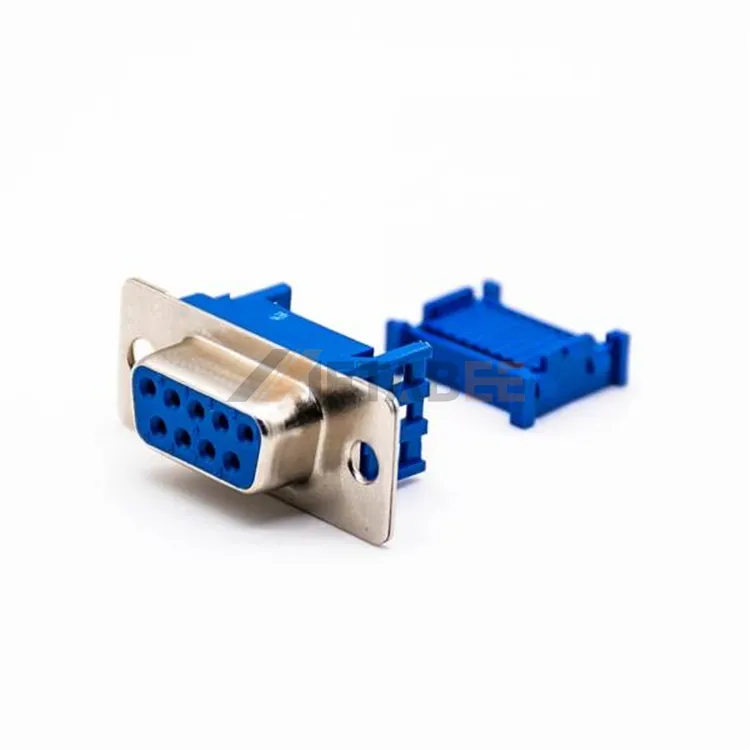

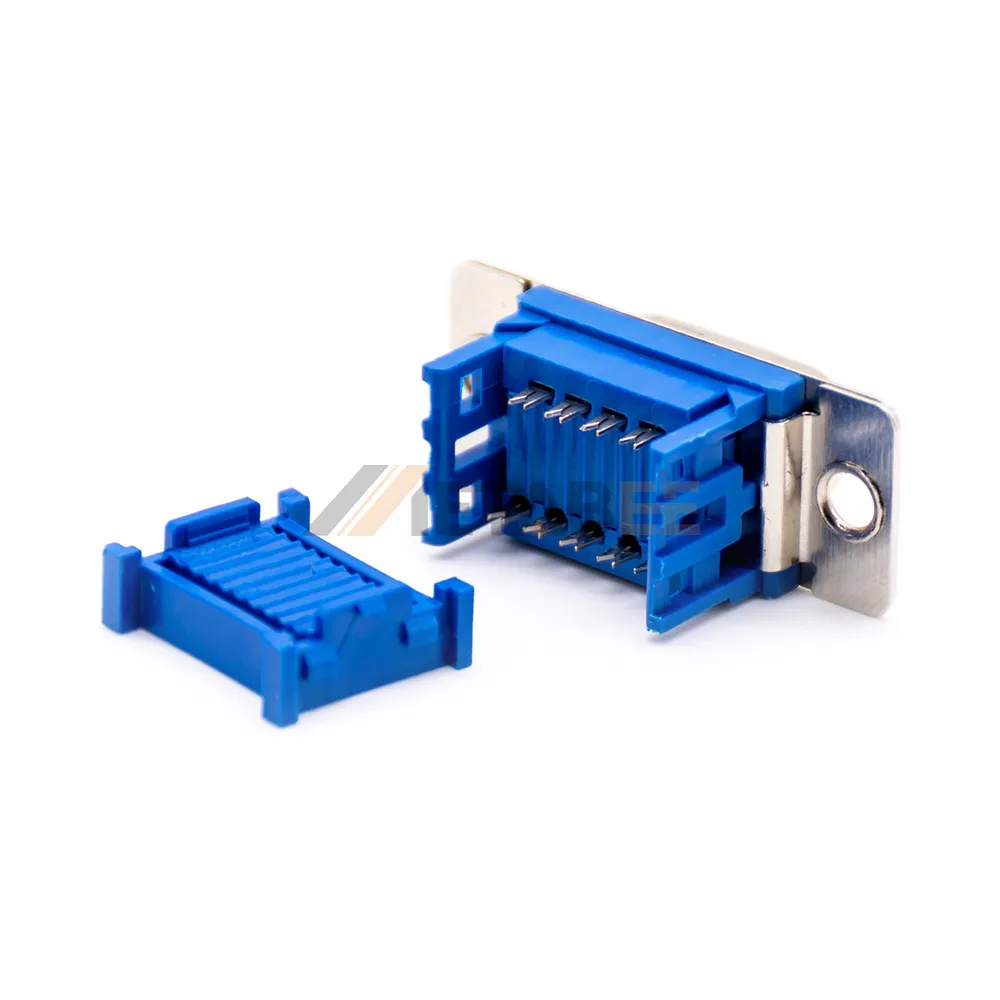

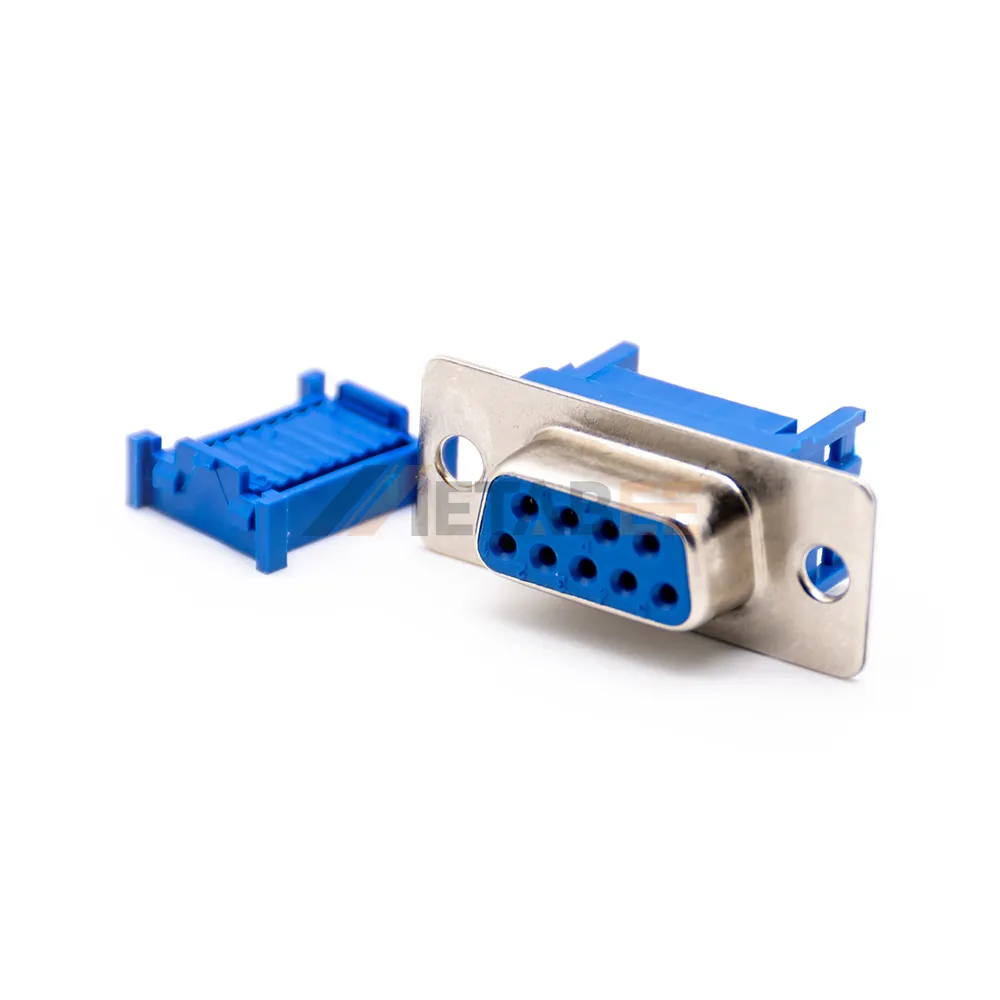

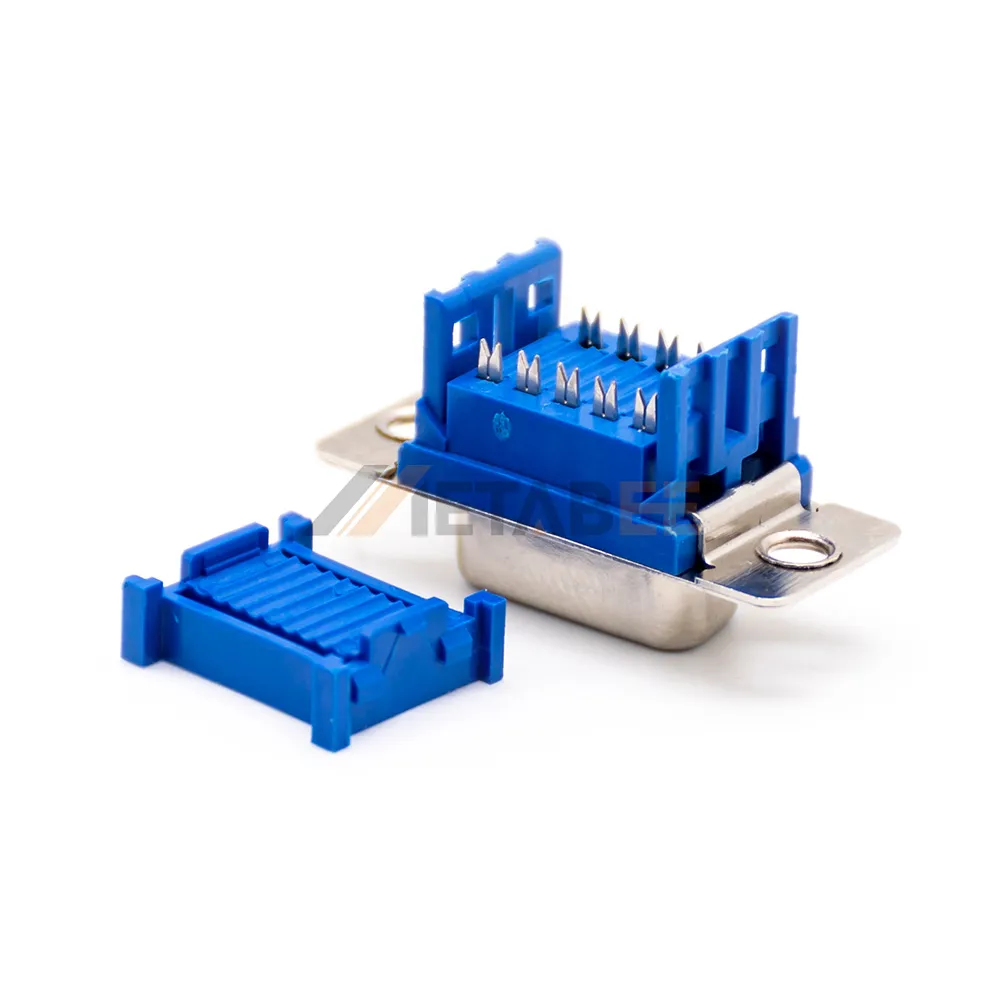

IDC D-Sub 9 Pin Female Connector for Flat Ribbon Cable, 2.77mm Pitch
Introduction:
This IDC D-Sub 9 pin female connector provides an incredibly fast and efficient way to terminate flat ribbon cables. It utilizes Insulation Displacement Connection (IDC) technology, which allows you to create a secure, reliable connection without the need for stripping or soldering individual wires. Simply position the flat ribbon cable and press it into place; the sharp tines on the contacts pierce the insulation to make a solid electrical bond. Gold-plated contacts ensure excellent signal integrity. This connector is the ideal solution for quickly building custom cable assemblies in production environments, for computer peripherals, and for industrial equipment.
This IDC D-Sub 9 pin female connector is designed for rapid and reliable cable assembly, featuring:
- IDC Termination: Allows for fast, solder-free termination of flat ribbon cable, saving significant assembly time.
- Flat Ribbon Cable: Specifically designed to be crimped directly onto standard flat ribbon cables.
- Gold-Plated Contacts: Ensures reliable signal conductivity and long-term corrosion resistance.
- Durable Steel Shell: A strong nickel-plated housing protects against physical damage and EMI.
- 9-Pin Female Interface: Standard D-Sub 9-pin female port for serial and data applications.
Main Specifications:
General Information:
| Product No.: | YC-681-4040 | |
| Connector Series: | D-Sub Connectors | |
| Orientation: | Straight | |
| Connector Gender: | Female | |
| Number of Contacts: | 9 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77 mm | |
| Shell Sizes: | E | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | IDC | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Nickel Plating | |
| Contact Plating Thickness: | 3.00 µin (0.076 µm) | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 500V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of this IDC D-Sub 9 pin female connector:
- Industrial Automation;
- Serial Communication;
- Telecommunications;
- Test & Measurement Equipment;
- Computer Peripherals;
- Robotics and CNC Machine Control;
- Prototyping and Custom Assemblies;
- Medical and Laboratory Equipment;
