Waterproof D-Sub DB9 Male Connector, Cable Type, Machined Contacts, 2.77mm Pitch, IP67
Introduction:

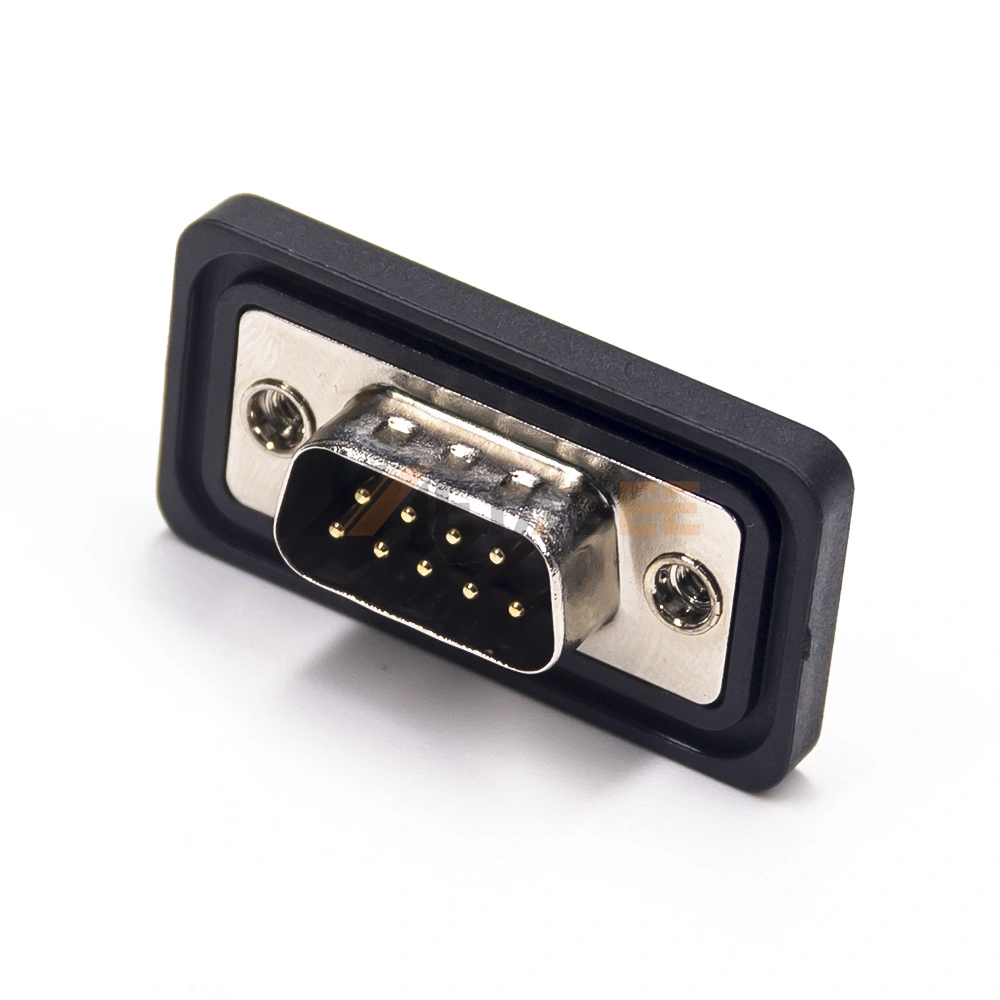

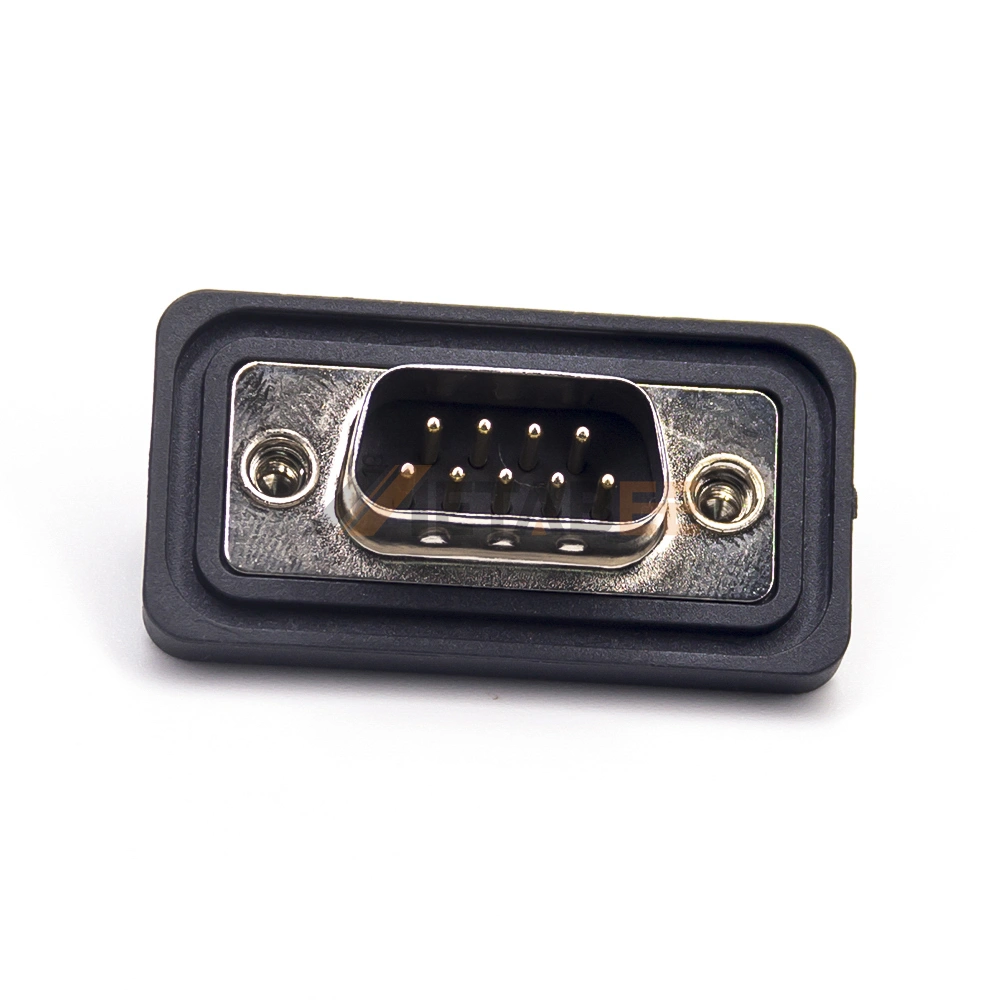

This is a waterproof 9-pin male D-sub connector designed for cable mounting. It features a straight orientation and a rugged E-size shell. Contacts terminate in solder cups for secure wire attachment. It achieves a reliable IP67 environmental seal. A rear rivet nut provides positive mating retention. The nickel-plated steel shell ensures excellent corrosion resistance. Precision-machined brass contacts are gold plated for optimal signal integrity. The connector uses a durable PBT insulator. It operates reliably in extreme temperatures from -55°C to +125°C. Rated for 5A current and 250V voltage. Ideal for industrial, marine, and outdoor applications where moisture resistance is critical.
Main Features:
- 9 Pin Male Contacts: Machined brass construction ensures precision and durability.
- IP67 Sealed Design: Guarantees waterproof and dustproof performance.
- Cable Mount Type: Designed for direct cable attachment and termination.

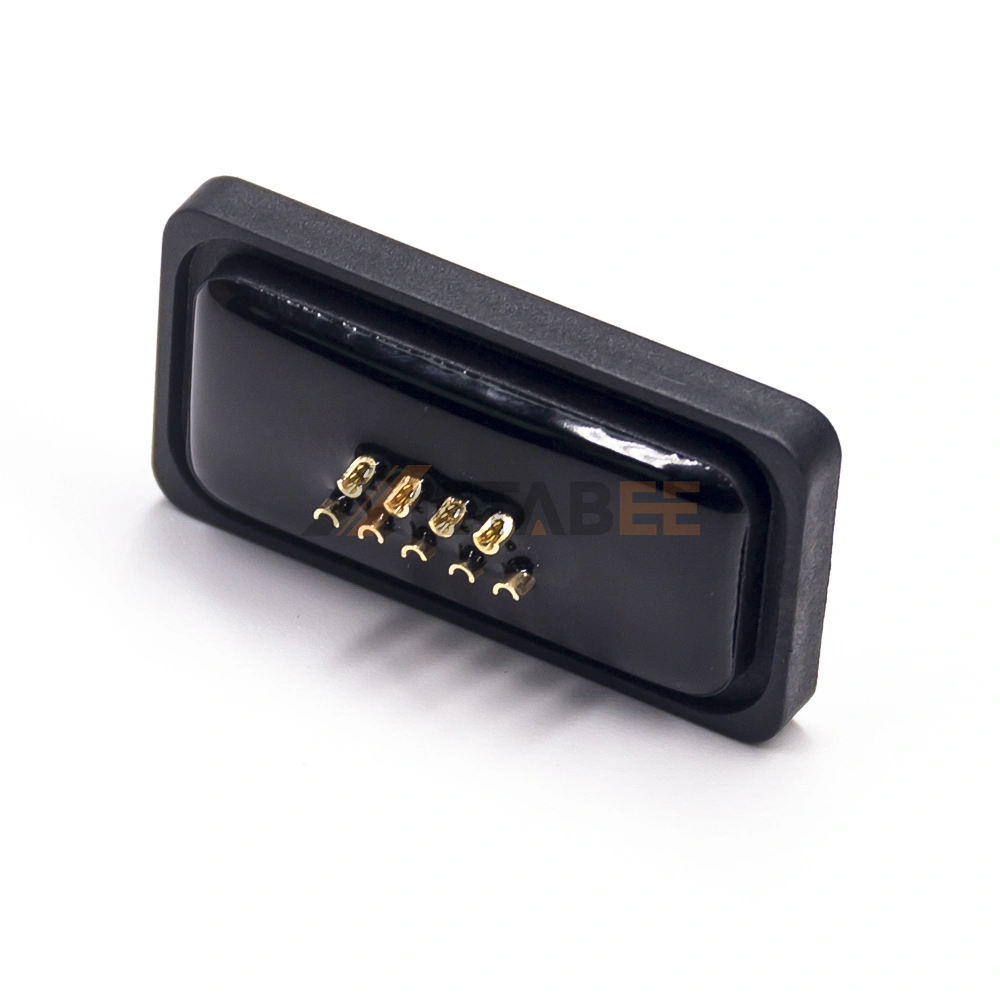

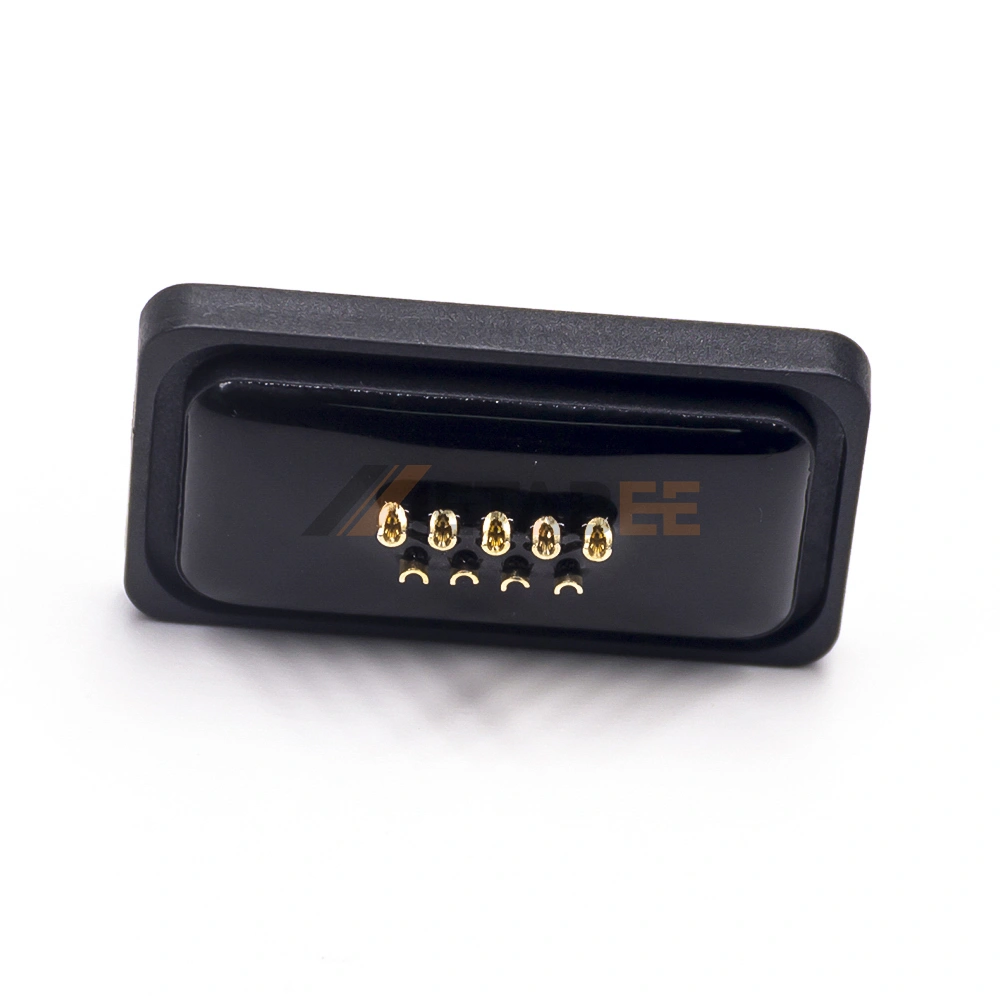

- Solder Cup Termination: Enables reliable and strong wire connections.
- Wide Operating Temperature: Functions reliably from -55°C to +125°C.
- Gold-Plated Contacts: Gold over nickel plating provides superior conductivity and corrosion resistance.
Main Specifications:
General Information:
| Product Number: | YC-681-5013 | |
| Connector Series: | Standard D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 9 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77mm | |
| Shell Sizes: | E | |
| Mount Type: | Cable Type | |
| Mount Feature: | Rear Rivet Nut | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contacts | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 10 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94 V-0 |
Applications of the Waterproof D-Sub 9 Pin Male Connector:
- RS-232 Serial Communication
- Legacy Computer Peripherals
- Industrial Automation & Control Systems
- Scientific & Test Equipment
- Point-of-Sale (POS) Systems
- Audio/Visual Control Interfaces
