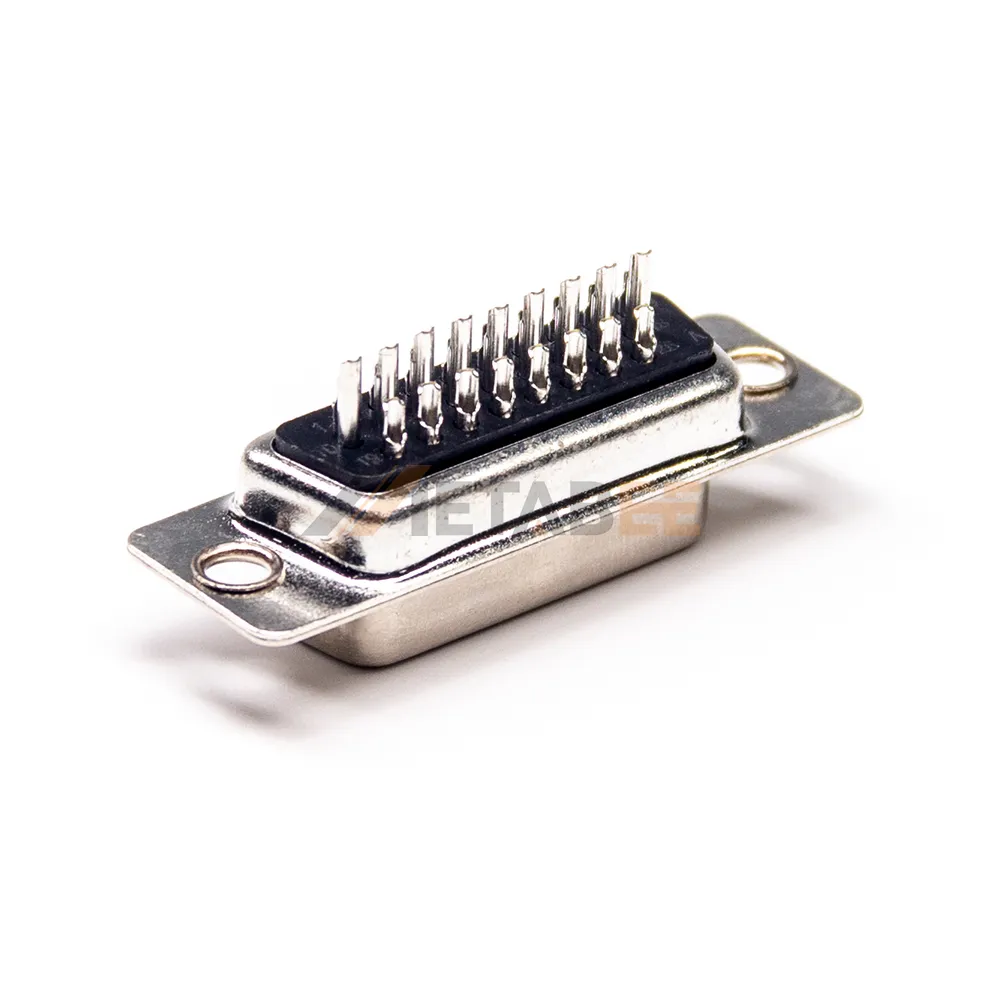

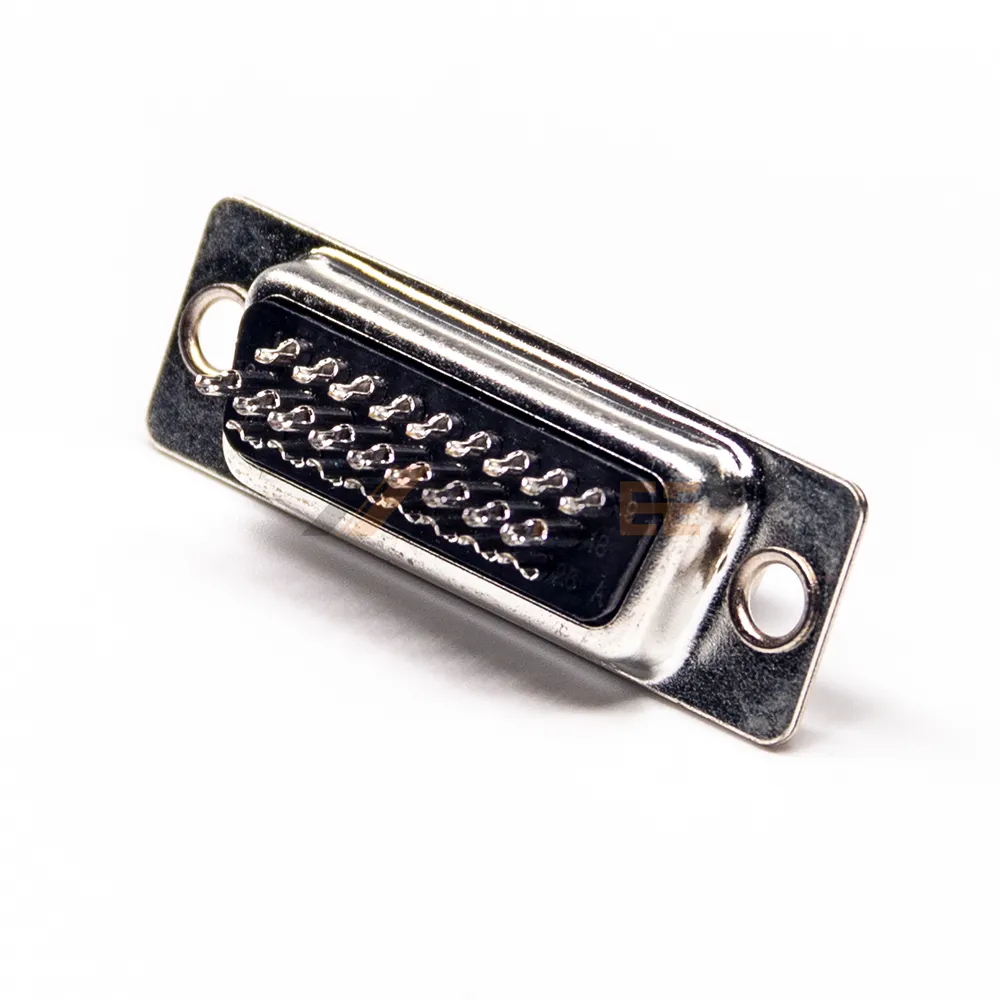

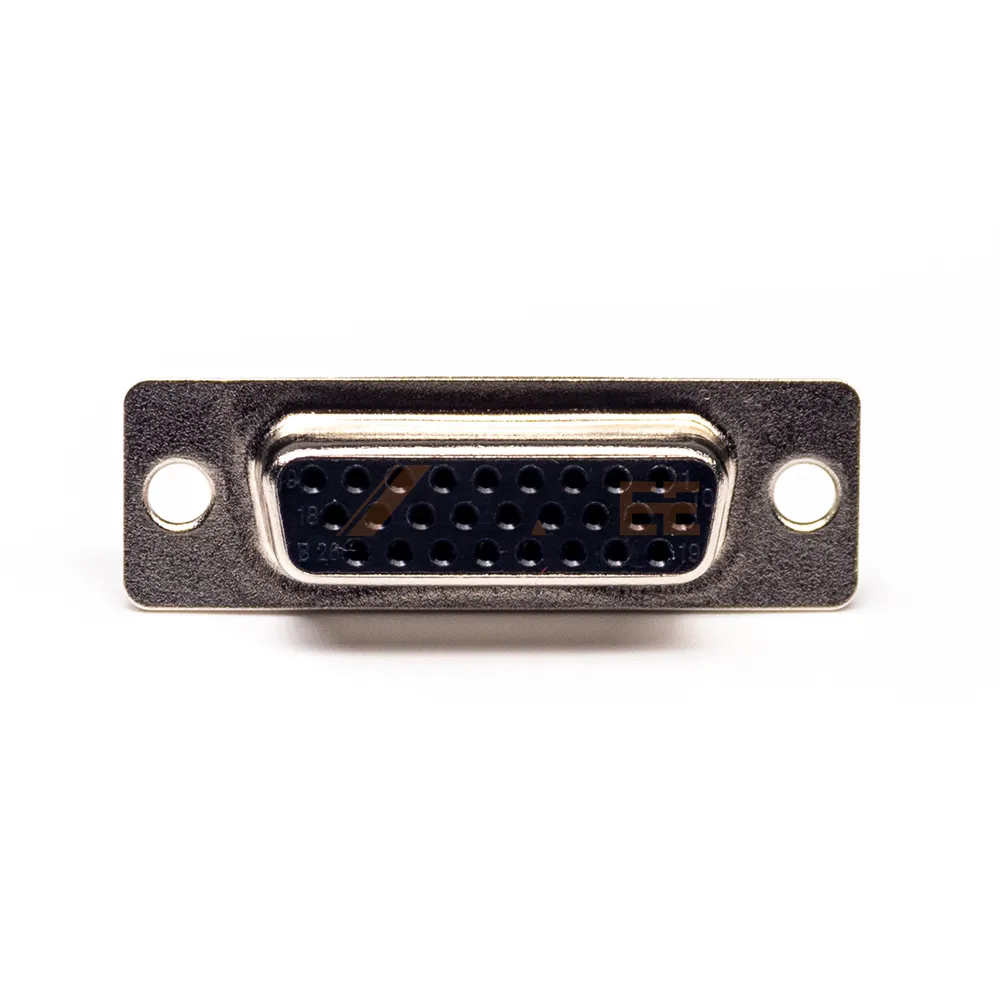

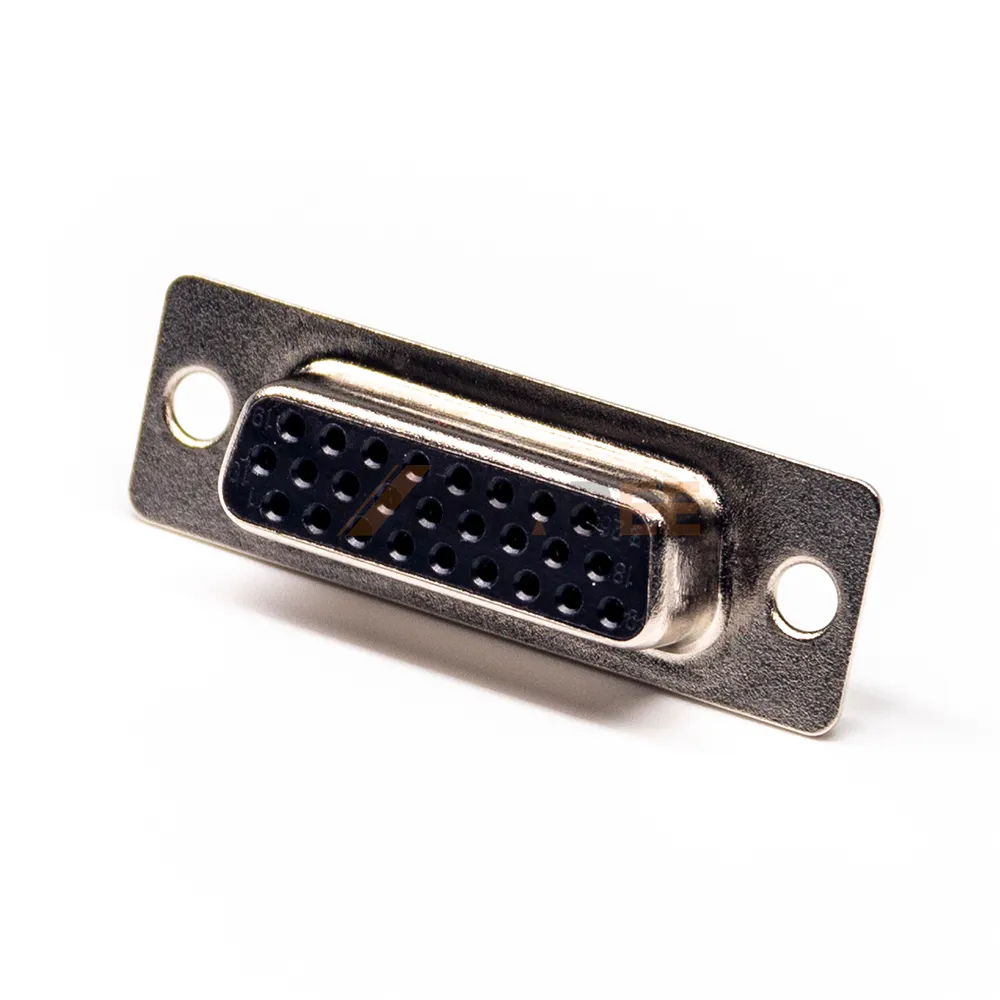

DB 26 Pin Female Connector for Cable Mount, Solder Cup, 2.29mm Pitch
Introduction:
This DB 26 pin connector provides a high-density solution for complex I/O applications. It is engineered for cable mounting, featuring solder cup terminals for a secure, permanent connection of individual wires. It is built with stamped contacts, offering a cost-effective solution for reliable connectivity. Its contacts are tin-plated, a cost-effective alternative to gold. Tin is specifically engineered to provide superior solderability, creating a stronger, more reliable metallurgical bond with the wires in the solder cups. With a rugged steel shell for protection, it’s an ideal choice for medical devices, industrial control systems, and specialized data communication equipment.
This DB 26 pin connector has many great features, including:
- High-Density: Offers a compact solution for applications requiring a high number of signal lines.
- Solder Cup Termination: Allows for direct, secure soldering of individual wires for custom cable assemblies.
- Cable Mount Design: Designed to be mounted directly on a cable, perfect for building custom I/O harnesses.
- Tin-Plated Contacts: A cost-effective finish providing great corrosion protection and superior solderability.
- Durable Steel Shell: A strong nickel-plated housing offers robust physical protection and EMI shielding.
Main Specifications:
General Information:
| Product No.: | YC-681-4156 | |
| Connector Series: | High Density D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 26 Pin | |
| Number of Rows: | 3 | |
| Pitch: | 2.29mm | |
| Shell Sizes: | A | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Not Applicable | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Tin Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 2A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of this DB 26 pin connector:
- Industrial Automation;
- Data Acquisition (DAQ) Systems;
- Test & Measurement Equipment;
- Medical and Laboratory Devices;
- Telecommunications & Networking;
- Legacy Computer Interfaces;
- Aviation and Marine Electronics;
