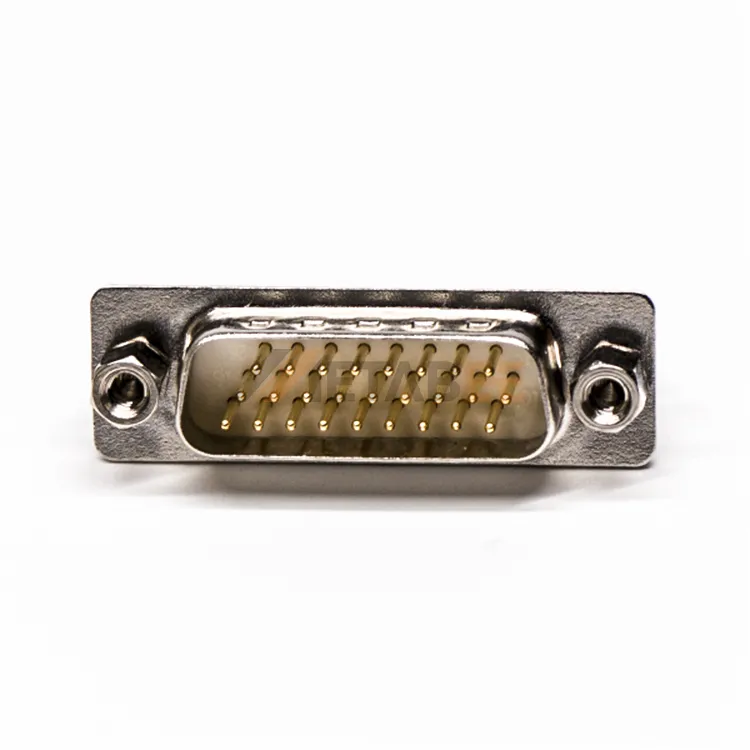

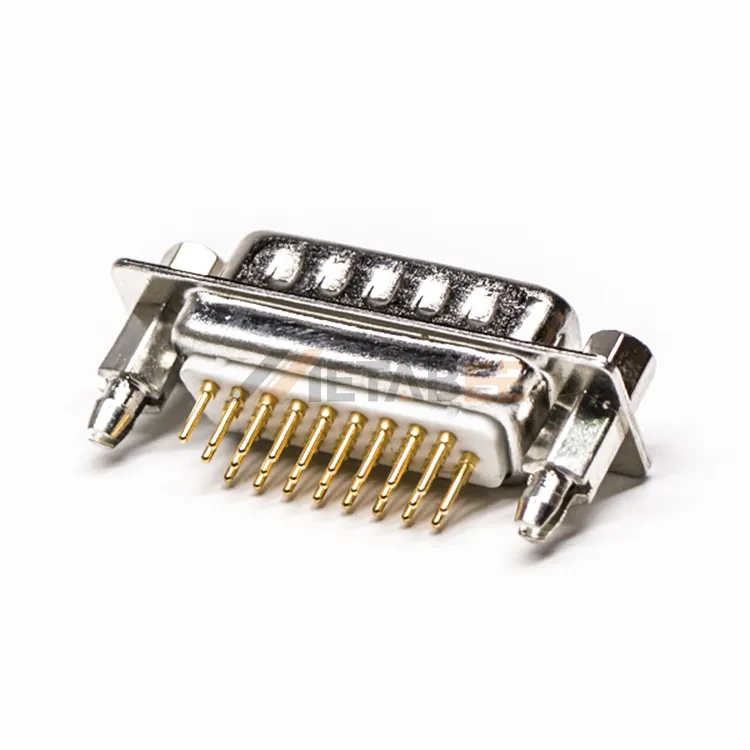

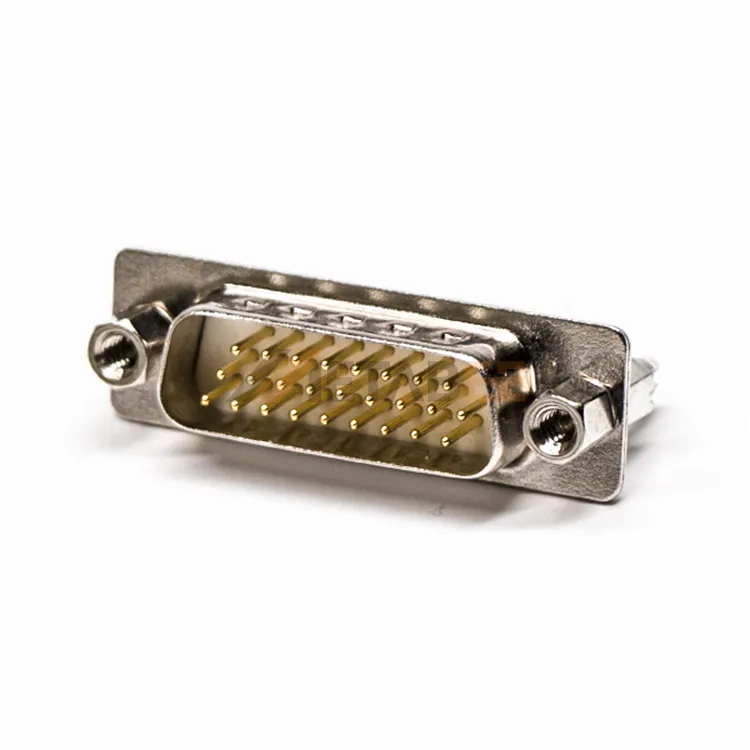

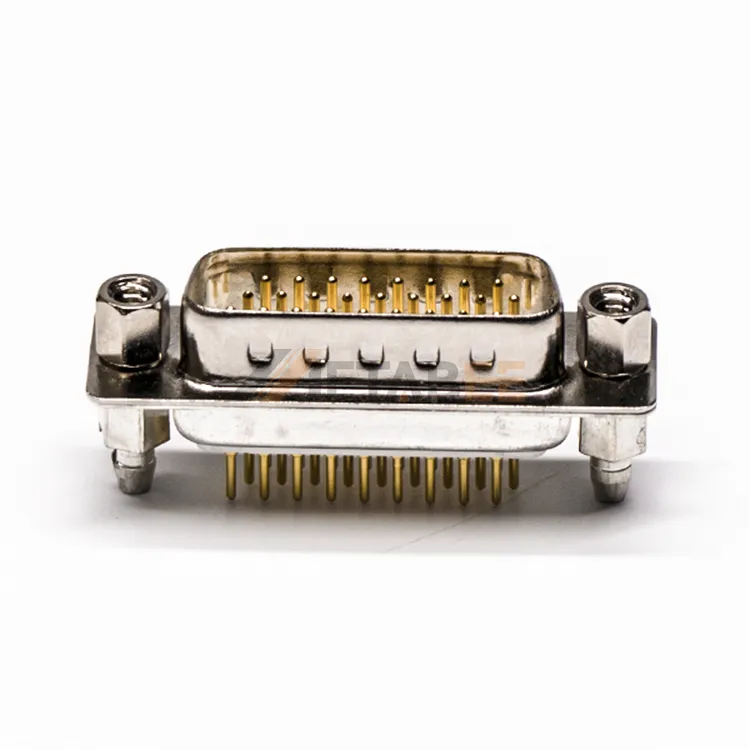

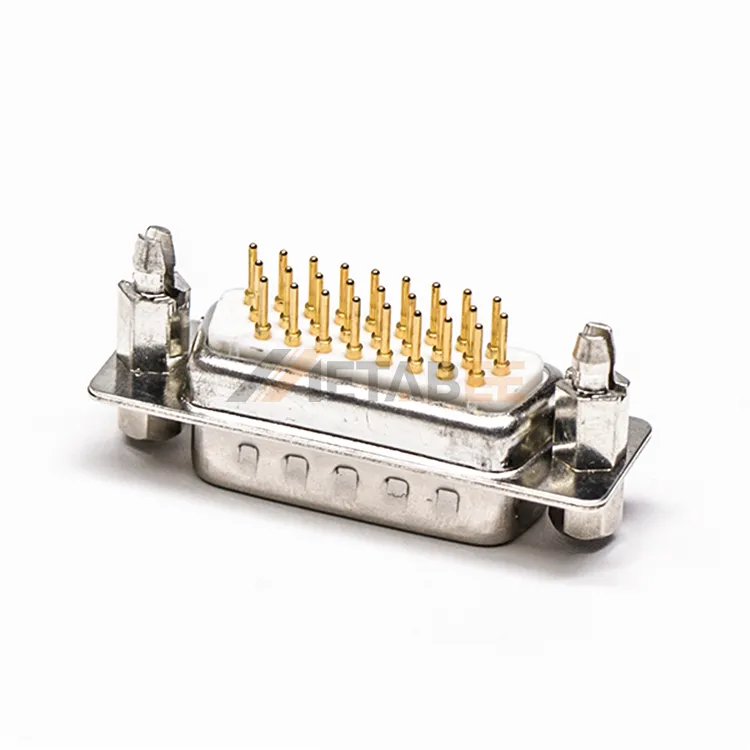

26 Pin D-Sub Male Connector for PCB Mount, Through Hole, Machined Contacts, 2.29mm Pitch
Introduction:
This 26 pin D-sub male connector is engineered for secure PCB mounting. It features integrated 4-40 UNC screw locks, ensuring a vibration-proof mating connection. This connector is built with high-quality machined contacts, offering superior durability and a more reliable connection than standard stamped types. Its gold-plated contacts ensure excellent signal integrity across all 26 pins. With a rugged steel shell for protection, it’s an ideal choice for medical devices, industrial control systems, and specialized data communication equipment.
This 26 pin D-sub male connector has many great features, including:
- High-Density: Offers a compact solution for applications requiring a high number of signal lines.
- Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
- Machined Contacts: Provides superior durability and a more reliable connection for critical, high-mating-cycle use.
- Gold-Plated Contacts: Ensures excellent conductivity and long-term corrosion resistance across all pins.
- Durable Steel Shell: A strong nickel-plated housing offers robust physical protection and EMI shielding.
Main Specifications:
General Information:
| Product No.: | YC-681-1213 | |
| Connector Series: | High Density D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 26 Pin | |
| Number of Rows: | 3 | |
| Pitch: | 2.29mm | |
| Shell Sizes: | A | |
| Mount Type: | PCB Mount | |
| Mount Feature: | 4-40 UNC Screwlocks | |
| Contact Termination: | Solder | |
| Contact Type: | Machined Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 2A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of this 26 pin D-sub male connector:
- Industrial Automation;
- Data Acquisition (DAQ) Systems;
- Test & Measurement Equipment;
- Medical and Laboratory Devices;
- Telecommunications & Networking;
- Legacy Computer Interfaces;
- Aviation and Marine Electronics;
