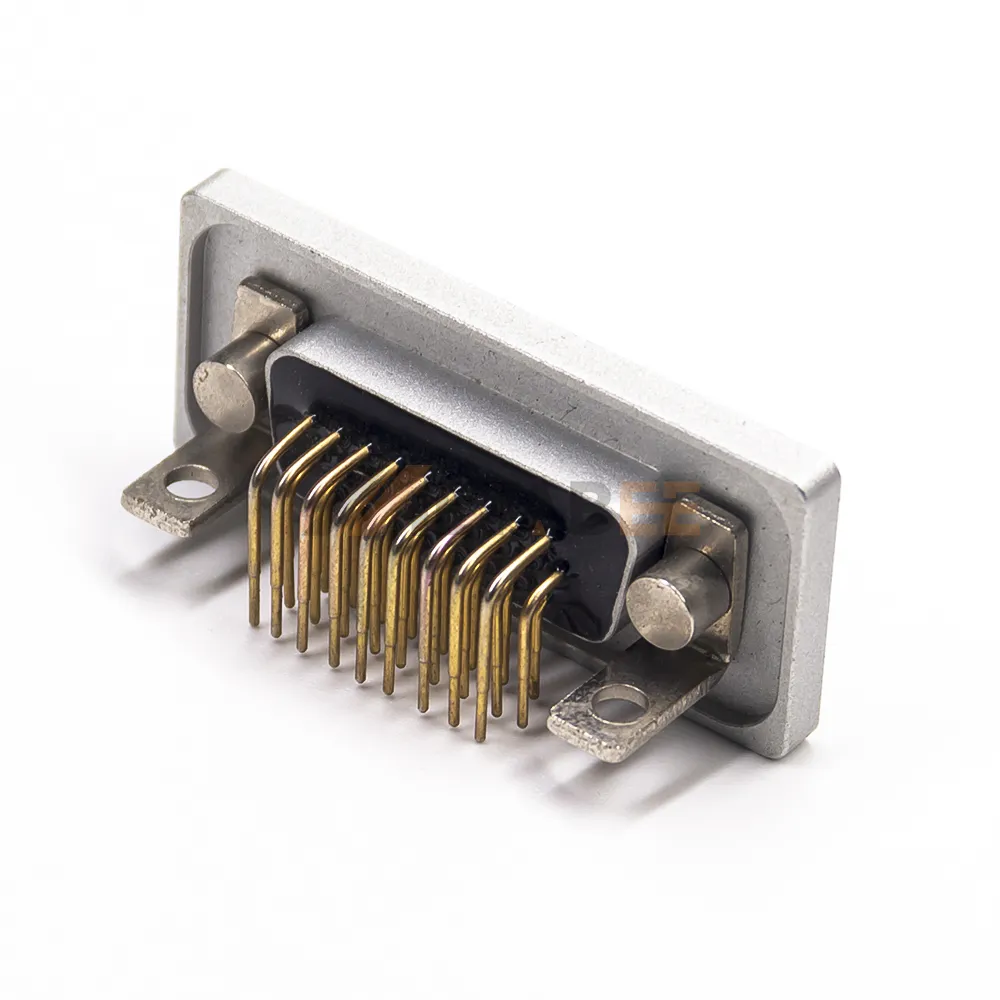

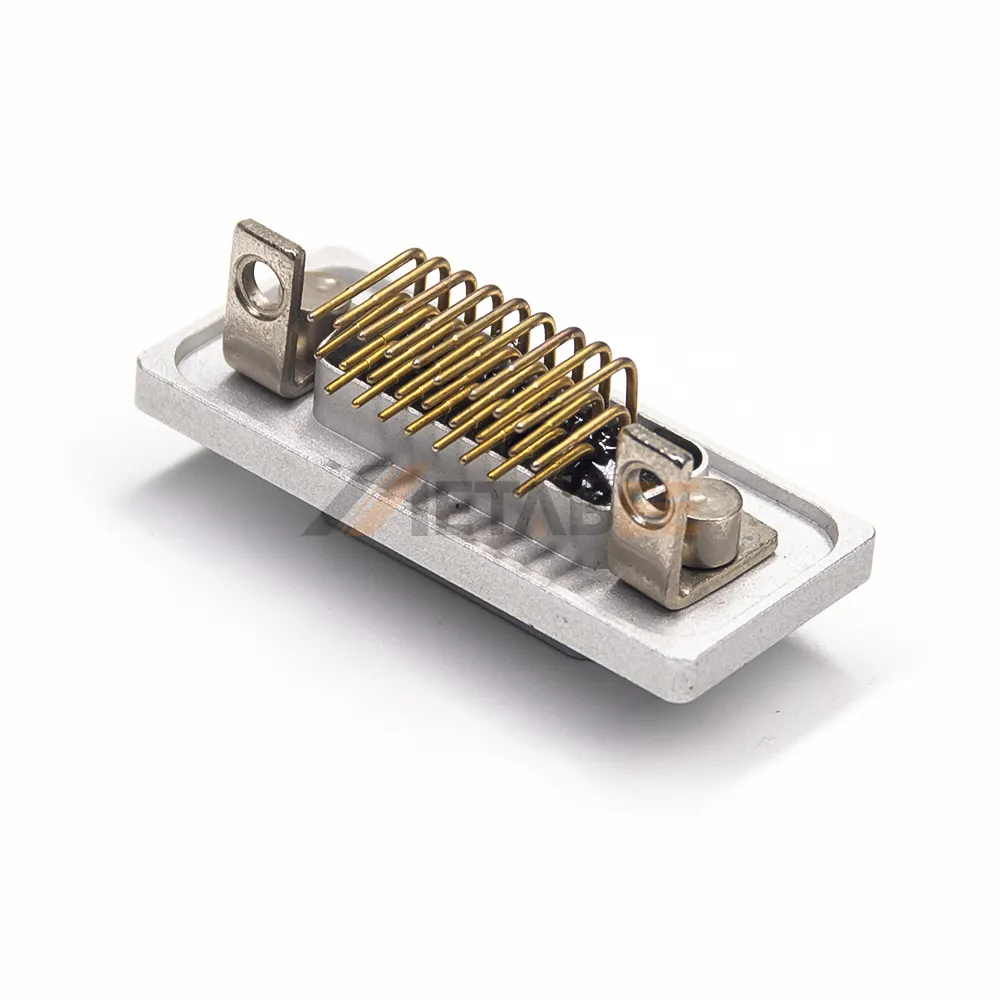

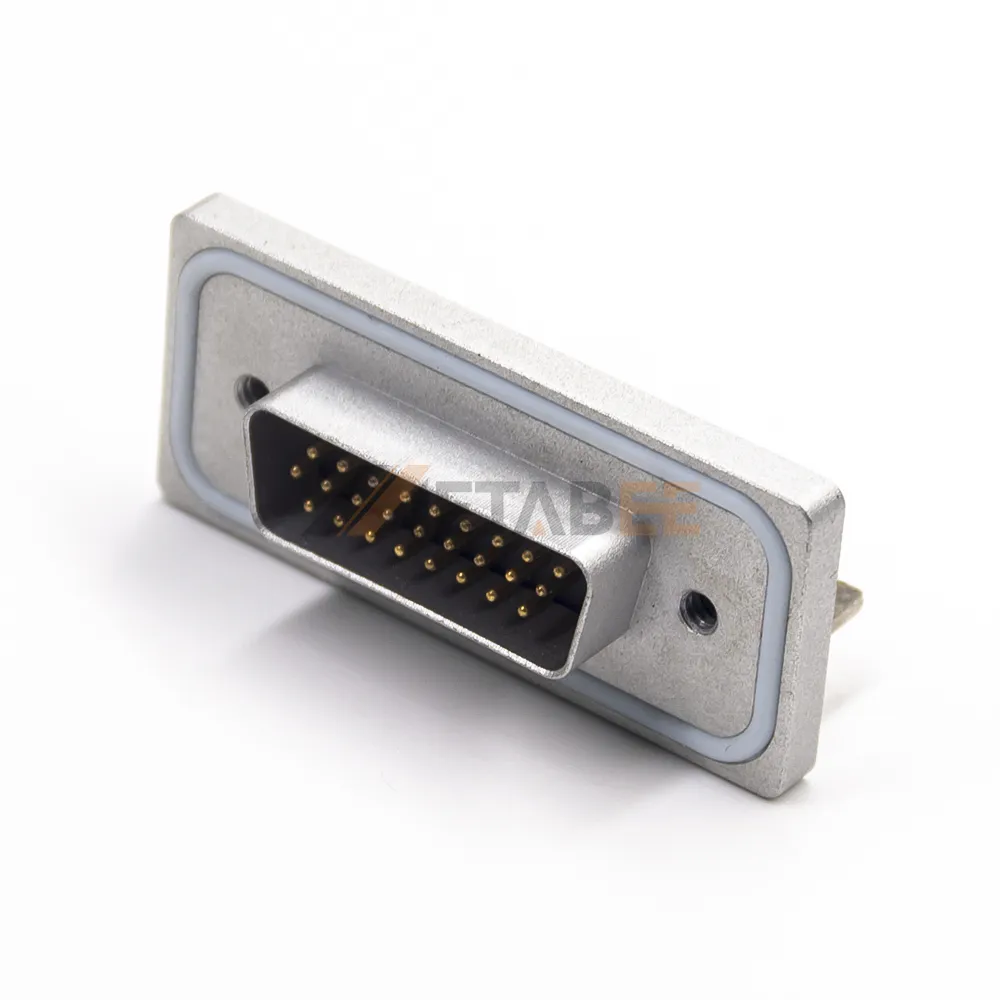

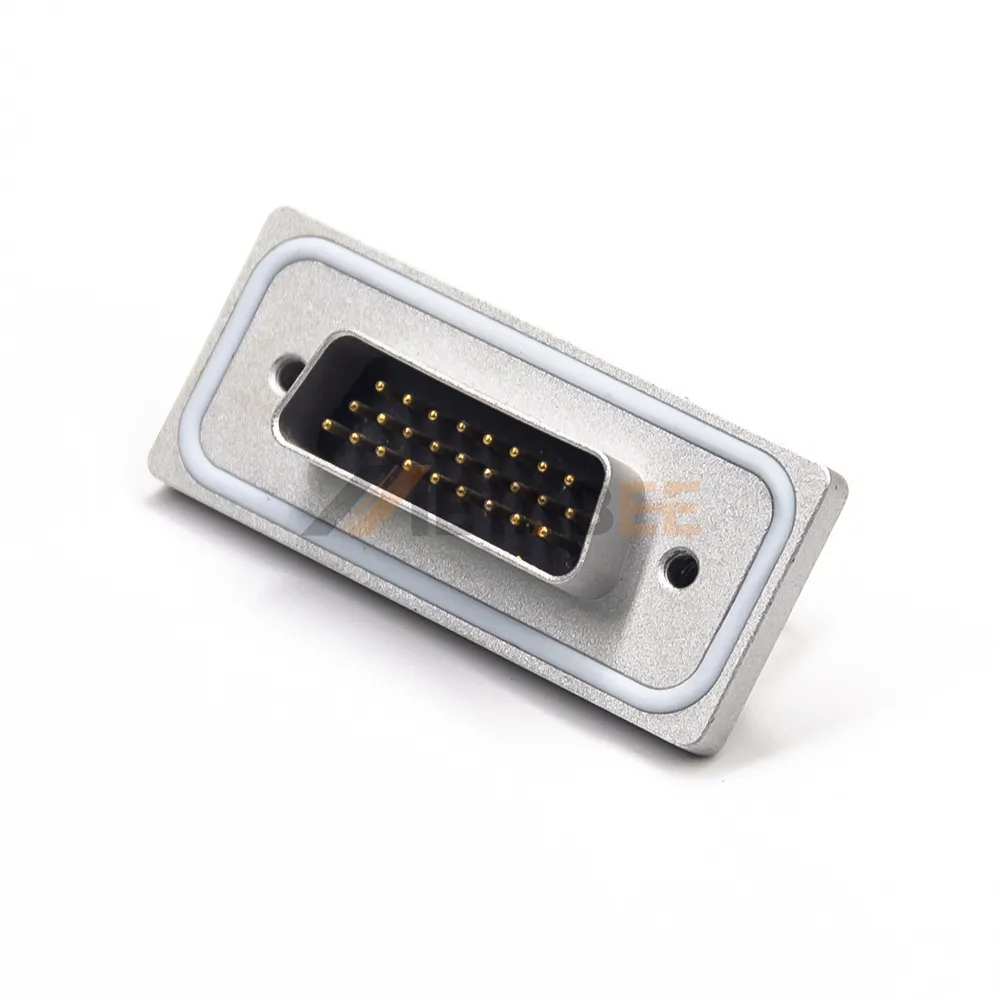

D-sub HD 26 Pin Female Connector for PCB Mount, Through Hole, 2.29mm Pitch, IP67
Introduction:
This HD 26 pin female connector is engineered for secure PCB mounting. It features integrated 4-40 UNC screw locks, ensuring a vibration-proof mating connection. This connector is built with high-quality machined contacts, offering superior durability and a more reliable connection than standard stamped types. Its gold-plated contacts ensure excellent signal integrity across all 26 pins. With a rugged steel shell for protection, it’s an ideal choice for medical devices, industrial control systems, and specialized data communication equipment.
This HD 26 pin female connector has many great features, including:
- High-Density: Offers a compact solution for applications requiring a high number of signal lines.
- Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
- Machined Contacts: Provides superior durability and a more reliable connection for critical, high-mating-cycle use.
- Gold-Plated Contacts: Ensures excellent conductivity and long-term corrosion resistance across all pins.
- Durable Steel Shell: A strong nickel-plated housing offers robust physical protection and EMI shielding.
- IP67 Rated Performance: Certified waterproof for immersion and completely sealed against dust, ideal for industrial and outdoor use.
Main Specifications:
General Information:
| Product No.: | YC-681-5050 | |
| Connector Series: | High Density D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Female | |
| Number of Contacts: | 26 Pin | |
| Number of Rows: | 3 | |
| Pitch: | 2.29mm | |
| Shell Sizes: | A | |
| Mount Type: | PCB Mount | |
| Mount Feature: | 4-40 UNC Screwlocks | |
| Contact Termination: | Solder | |
| Contact Type: | Machined Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 2A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94 V-0 |
Applications of this HD 26 pin female connector:
- Industrial Automation;
- Data Acquisition (DAQ) Systems;
- Test & Measurement Equipment;
- Medical and Laboratory Devices;
- Telecommunications & Networking;
- Legacy Computer Interfaces;
- Aviation and Marine Electronics;
