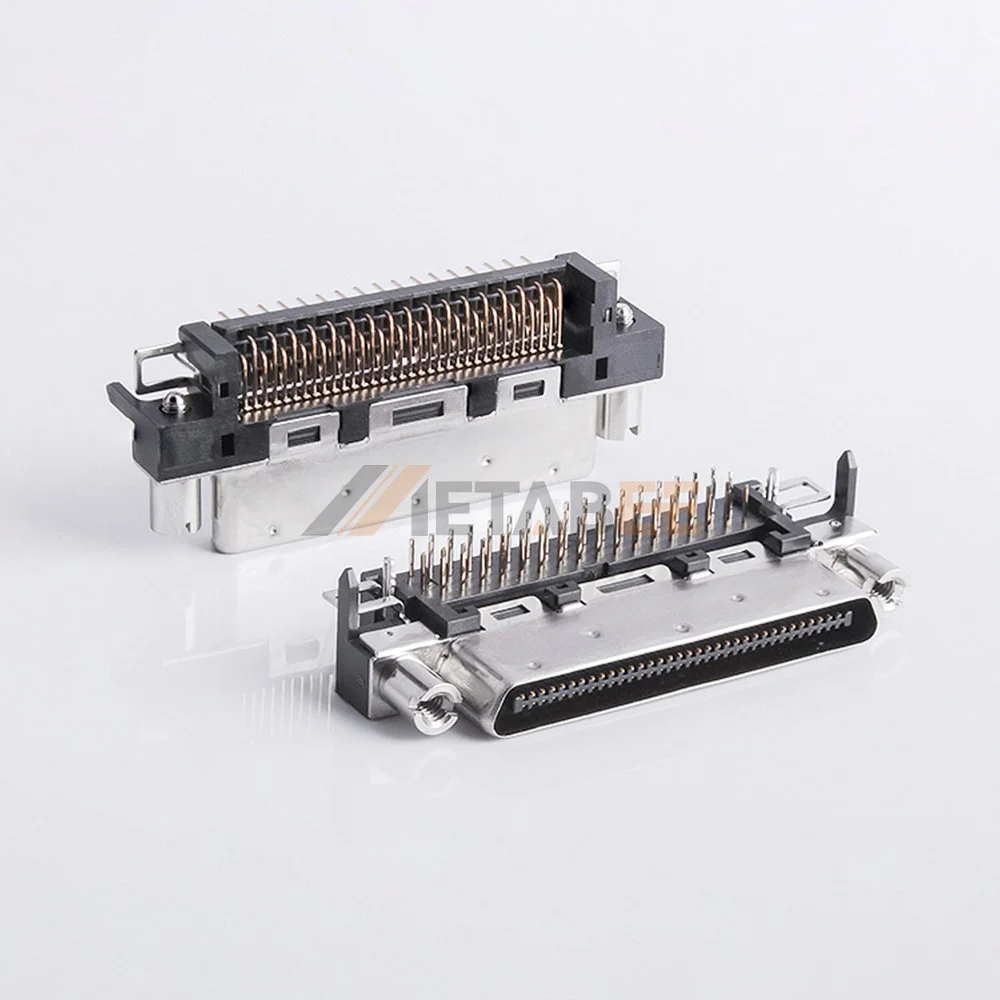

68 Pin Right Angle Through Hole VHDCI Male Connector, 0.8mm Pitch, Solder
Introduction:
The 68-Pin Right Angle Through Hole VHDCI Male Connector is a high-performance SCSI connector designed for reliable, high-density signal transmission. With a compact 0.8mm pitch, this right-angle connector ensures space-saving integration in tight PCB layouts. Its through-hole solder termination provides strong mechanical stability and secure electrical connections, making it ideal for demanding applications. The zinc alloy housing with nickel plating offers durability and corrosion resistance, while the phosphor bronze contacts with gold plating ensure excellent conductivity and low contact resistance (≤35mΩ). Rated for 1A current and an insulation resistance of ≥500MΩ, this connector operates reliably in temperatures ranging from -55°C to +125°C.
Engineered for precision, this VHDCI male connector features tin-plated solder tails for easy PCB mounting and long-term solder joint reliability. The silver-colored nickel-plated shell provides a sleek, professional appearance while enhancing EMI shielding. Whether used in industrial, medical, or high-speed data applications, this connector delivers consistent performance in harsh environments.
Features:
- 68-pin right-angle VHDCI male connector (0.8mm pitch)
- Through-hole solder termination for secure PCB mounting
- Zinc alloy shell with nickel plating (silver color)
- Phosphor bronze contacts with gold plating (≤35mΩ resistance)
- 1A current rating, 500MΩ insulation resistance
- Wide operating temperature: -55°C to +125°C
- Tin-plated solder tails for reliable PCB connections
- High-density, space-saving design for compact layouts
Main Specifications:
General Information:
| Part Number: | YC-VHDCI68P-08M-R31-02 | |
| Product Type: | SCSI I/O Connector | |
| Brand: | Metabee | |
| Connector Type: | VHDCI | |
| Connector Series: | 0.80mm | |
| Number of Contacts: | 68 Pin | |
| Gender: | Male | |
| Orientation: | Right Angle | |
| Mount Method: | Through Hole | |
| Termination Method: | Solder | |
| Lock Type: | Screw Lock | |
| Operation Temperature: | -55℃ to +125℃ | |
| Durability: | up to 500 cycles |
Electrical Performance:
| Contact Current Rating: | 1 AMP | |
| Insulation Resistance: | 500 MΩ Minimum | |
| Contact Resistance: | 35 mΩ Maximum | |
| Dielectric Voltage: | 500V AC for 1 Minute |
Materials and Plating:
| Insulator Material: | PBT + 30% G/F | |
| Contact Material: | Phosphor Bronze | |
| Contact Finish: | Gold Plated | |
| Shell Material: | Zinc Alloy | |
| Shell Finish: | Nickel Plated |
Applications of this 68 Pin Right Angle Through Hole VHDCI Male Connector:
Here are common application scenarios for SCSI connectors:
- Data Storage Systems
- Server Environments
- Enterprise Backup Solutions
- High-Performance Computing (HPC)
- Medical Imaging Equipment
- Broadcast and Video Production
- Industrial Automation
- Legacy Systems Maintenance
- Network Attached Storage (NAS)
