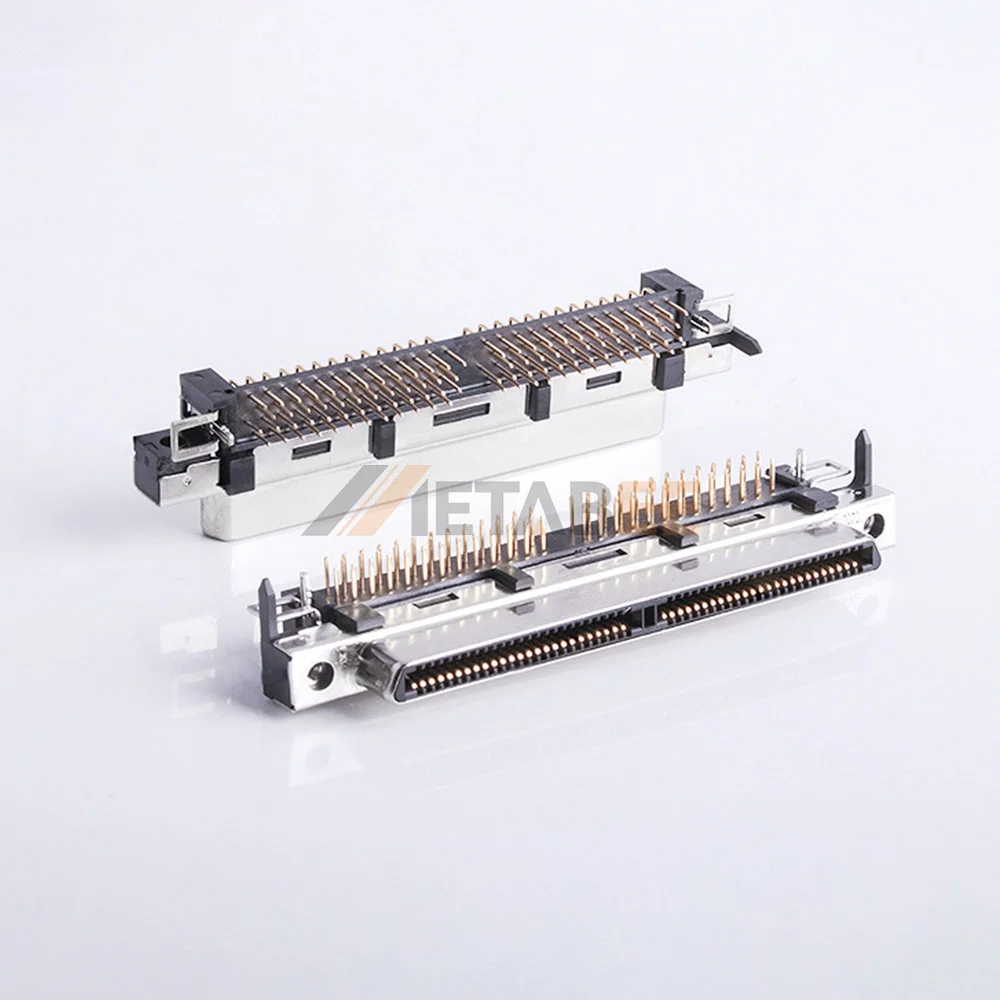

100 Pin Right Angle Through Hole VHDCI Female Connector, 0.8mm Pitch, Solder
Introduction:
This 100-pin right-angle through-hole VHDCI female connector is designed for high-density SCSI applications, offering reliable signal transmission with a compact 0.8mm pitch. The right-angle orientation saves space in tight PCB layouts, while the through-hole solder termination ensures a secure and durable connection. With a 1 AMP current rating, 500 MΩ minimum insulation resistance, and ≤35 mΩ contact resistance, this connector delivers stable performance in demanding environments.
Constructed with a zinc alloy shell (nickel-plated, silver color) for durability and corrosion resistance, the connector features phosphor bronze contacts for optimal conductivity. The contact ends are gold-plated for superior signal integrity, while the solder tails are tin-plated for excellent solderability. Rated for a wide operating temperature range (-55°C to +125°C), this VHDCI connector is ideal for industrial, medical, and high-speed data applications.
Features:
- 100-pin right-angle VHDCI female connector
- 8mm pitch for high-density PCB layouts
- Through-hole solder termination for secure mounting
- 1 AMP current rating, ≤35 mΩ contact resistance
- Zinc alloy shell with nickel plating (silver)
- Phosphor bronze contacts with gold-plated mating ends
- Tin-plated solder tails for reliable PCB attachment
- Wide operating temperature: -55°C to +125°C
Main Specifications:
General Information:
| Part Number: | YC-VHDCI100P-08F-R31-02 | |
| Product Type: | SCSI I/O Connector | |
| Brand: | Metabee | |
| Connector Type: | VHDCI | |
| Connector Series: | 0.80mm | |
| Number of Contacts: | 100 Pin | |
| Gender: | Female | |
| Orientation: | Right Angle | |
| Mount Method: | Through Hole | |
| Termination Method: | Solder | |
| Lock Type: | Screw Lock | |
| Operation Temperature: | -55℃ to +125℃ | |
| Durability: | up to 500 cycles |
Electrical Performance:
| Contact Current Rating: | 1 AMP | |
| Insulation Resistance: | 500 MΩ Minimum | |
| Contact Resistance: | 35 mΩ Maximum | |
| Dielectric Voltage: | 500V AC for 1 Minute |
Materials and Plating:
| Insulator Material: | PBT + 30% G/F | |
| Contact Material: | Phosphor Bronze | |
| Contact Finish: | Gold Plated | |
| Shell Material: | Zinc Alloy | |
| Shell Finish: | Nickel Plated |
