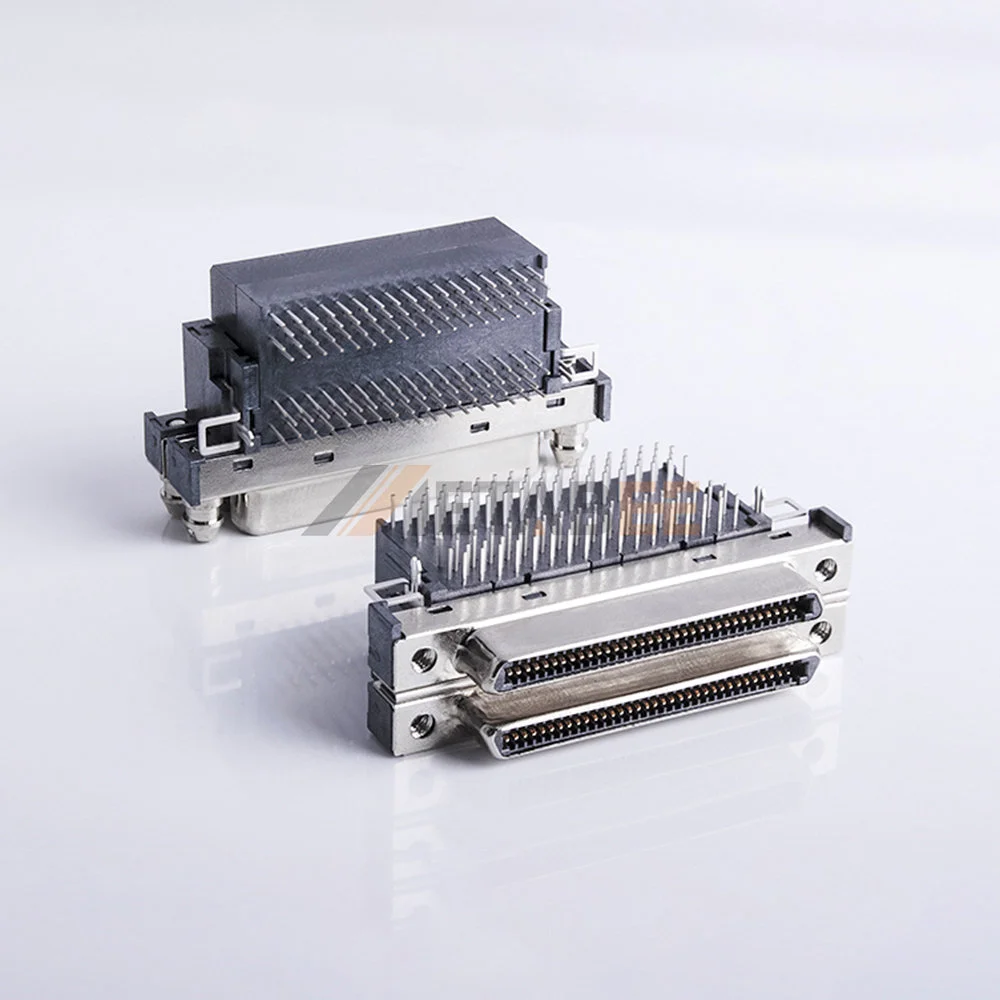

68 Pin Right Angle Dual Stacked Through Hole VHDCI Female Connector, 0.8mm Pitch, Solder
Introduction:
This dual 68-pin VHDCI SCSI connector features a right-angle dual-stacked through-hole design with a compact 0.8mm pitch, ensuring high-density connectivity in space-constrained applications. The female connector has a straight orientation and is designed for solder termination, providing a secure and reliable electrical connection. Constructed with a zinc alloy shell and nickel-plated finish, it offers durability and corrosion resistance, while the phosphor bronze contacts with gold-plated mating ends ensure excellent conductivity. The tin-plated solder tails enhance solderability for robust PCB mounting.
Rated for 1A current, this connector delivers stable performance with an insulation resistance of ≥500MΩ and contact resistance of ≤35mΩ. It operates reliably across a wide temperature range of -55°C to +125°C, making it suitable for industrial, telecom, and high-performance computing applications.
Features:
- 68-pin right-angle VHDCI female connector
- 8mm pitch, dual-stacked through-hole design
- Zinc alloy shell with nickel plating (silver)
- Phosphor bronze contacts, gold-plated mating ends
- Solder termination with tin-plated tails
- 1A current rating, ≤35mΩ contact resistance
- Insulation resistance ≥500MΩ
- Operating temperature: -55°C to +125°C
Main Specifications:
General Information:
| Part Number: | YC-VHDCI68P-08F-R32-02 | |
| Product Type: | SCSI I/O Connector | |
| Brand: | Metabee | |
| Connector Type: | VHDCI | |
| Connector Series: | 0.80mm | |
| Number of Contacts: | 2x 68 Pin | |
| Gender: | Female | |
| Orientation: | Right Angle | |
| Mount Method: | Through Hole | |
| Termination Method: | Solder | |
| Lock Type: | Screw Lock | |
| Operation Temperature: | -55℃ to +125℃ | |
| Durability: | up to 500 cycles |
Electrical Performance:
| Contact Current Rating: | 1 AMP | |
| Insulation Resistance: | 500 MΩ Minimum | |
| Contact Resistance: | 35 mΩ Maximum | |
| Dielectric Voltage: | 500V AC for 1 Minute |
Materials and Plating:
| Insulator Material: | PBT + 30% G/F | |
| Contact Material: | Phosphor Bronze | |
| Contact Finish: | Gold Plated | |
| Shell Material: | Zinc Alloy | |
| Shell Finish: | Nickel Plated |
Applications of this 68 Pin Right Angle Dual Stacked Through Hole VHDCI Female Connector:
Here are common application scenarios for SCSI connectors:
- Data Storage Systems
- Server Environments
- Enterprise Backup Solutions
- High-Performance Computing (HPC)
- Medical Imaging Equipment
- Broadcast and Video Production
- Industrial Automation
- Legacy Systems Maintenance
- Network Attached Storage (NAS)
