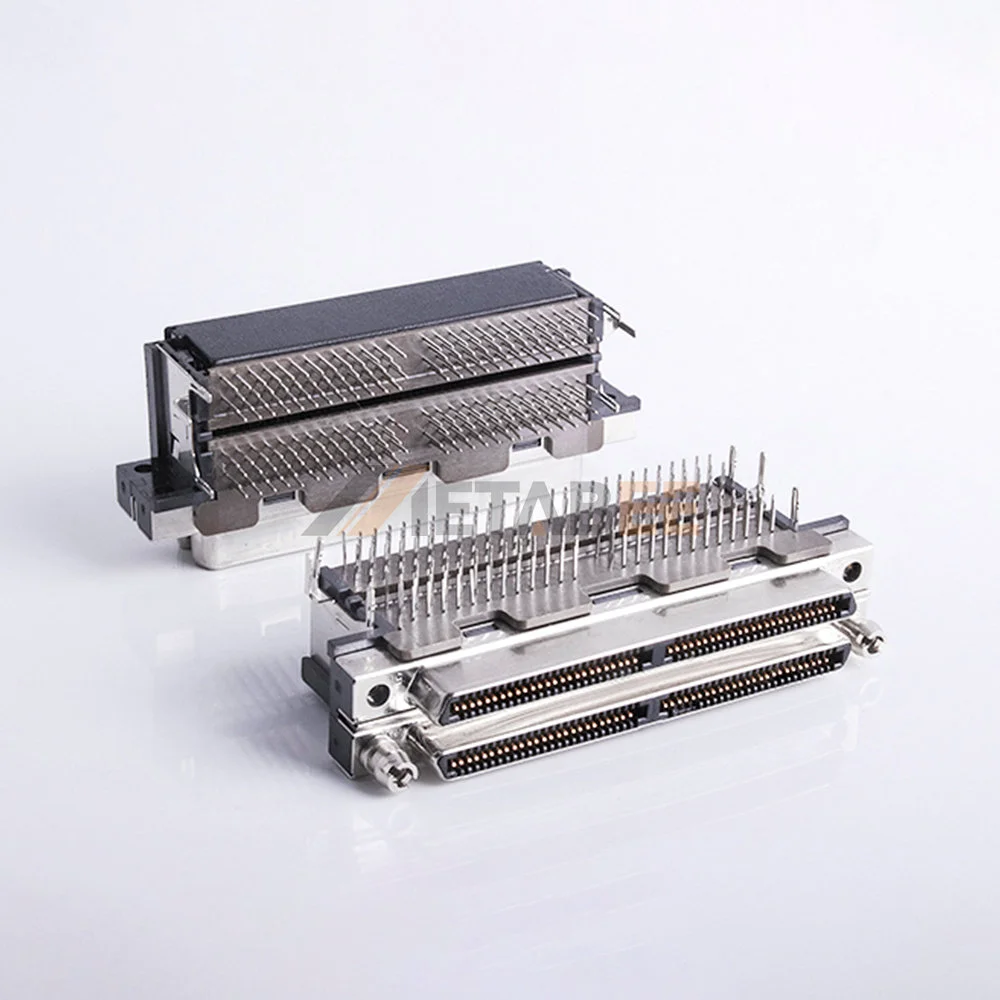

100 Pin Right Angle Dual Stacked Through Hole VHDCI Female Connector, 0.8mm Pitch, Solder
Introduction:
The 100 Pin Right Angle Dual Stacked Through Hole VHDCI Female Connector is a high-density SCSI connector designed for reliable signal transmission in demanding applications. Featuring a compact 0.8mm pitch, this right-angle connector ensures space-saving PCB integration while maintaining a secure connection. Its dual-stacked configuration provides increased pin density, making it ideal for high-performance computing, industrial automation, and data storage systems. The through-hole solder termination ensures robust mechanical stability and excellent electrical conductivity.
Constructed with a zinc alloy housing and nickel-plated finish, this connector offers durability and corrosion resistance. The phosphor bronze contacts with gold-plated mating surfaces ensure low contact resistance (≤35mΩ) and reliable signal integrity, while the tin-plated solder tails enhance solderability. Rated for 1A current, it operates in a wide temperature range of -55°C to +125°C, with an insulation resistance of ≥500MΩ, making it suitable for harsh environments.
Features:
- 100-pin VHDCI female connector with 0.8mm pitch
- Right-angle, dual-stacked design for high-density applications
- Through-hole solder termination for secure PCB mounting
- Zinc alloy nickel-plated housing for durability
- Phosphor bronze contacts with gold-plated mating surfaces
- Tin-plated solder tails for reliable soldering
- Rated 1A current, insulation resistance ≥500MΩ
- Operating temperature range: -55°C to +125°C
Main Specifications:
General Information:
| Part Number: | YC-VHDCI100P-08F-R32-02 | |
| Product Type: | SCSI I/O Connector | |
| Brand: | Metabee | |
| Connector Type: | VHDCI Dual-Stacked | |
| Connector Series: | 0.80mm | |
| Number of Contacts: | 2x 100 Pin | |
| Gender: | Female | |
| Orientation: | Straight | |
| Mount Method: | Through Hole | |
| Termination Method: | Solder | |
| Lock Type: | Screw Lock | |
| Operation Temperature: | -55℃ to +125℃ | |
| Durability: | up to 500 cycles |
Electrical Performance:
| Contact Current Rating: | 1 AMP | |
| Insulation Resistance: | 500 MΩ Minimum | |
| Contact Resistance: | 35 mΩ Maximum | |
| Dielectric Voltage: | 500V AC for 1 Minute |
Materials and Plating:
| Insulator Material: | PBT + 30% G/F | |
| Contact Material: | Phosphor Bronze | |
| Contact Finish: | Gold Plated | |
| Shell Material: | Zinc Alloy | |
| Shell Finish: | Nickel Plated |
Applications of this 100 Pin Right Angle Dual Stacked Through Hole VHDCI Female Connector:
Here are common application scenarios for SCSI connectors:
- Data Storage Systems
- Server Environments
- Enterprise Backup Solutions
- High-Performance Computing (HPC)
- Medical Imaging Equipment
- Broadcast and Video Production
- Industrial Automation
- Legacy Systems Maintenance
- Network Attached Storage (NAS)
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
