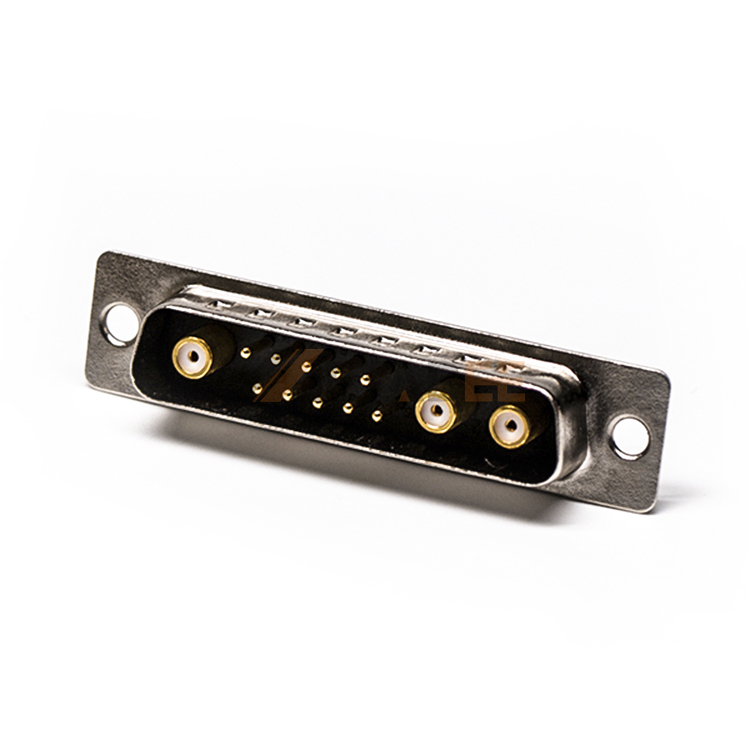

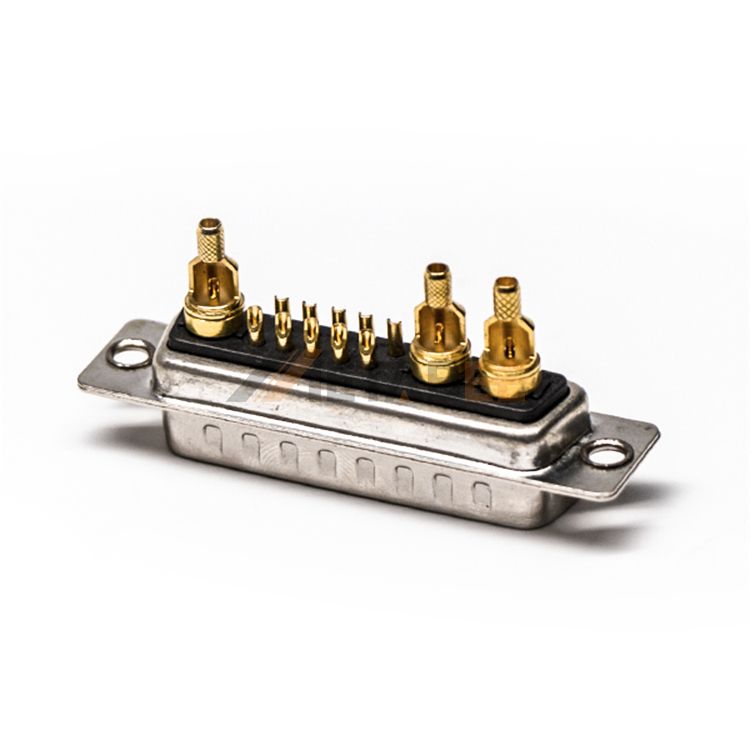

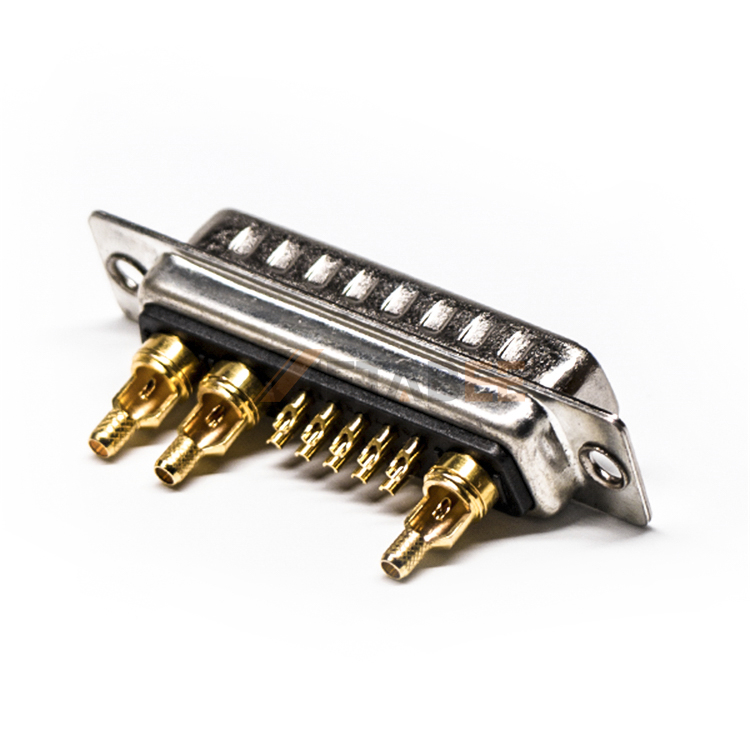

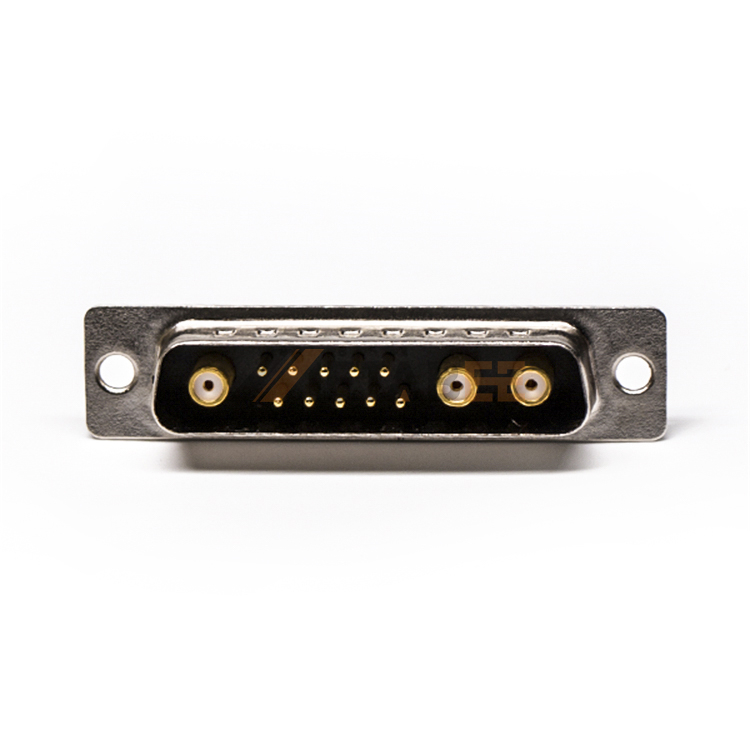

13W3 Mixed D-Sub Male Connector, Cable Type, Solder Cup, Coaxial & Signal
Introduction:
This is a 13W3 hybrid D-Sub connector with a B-size shell. The Combo D-Sub mixes both coaxial contacts and signal contacts in the same connector. 13W3 has three coaxial contacts and thirteen standard signal contacts. This design allows for simultaneous transmission of high-frequency RF and low-frequency control signals within a single interface, significantly optimizing system wiring. The connector utilizes precision-machined gold-plated terminals and a solder-cup cable termination, ensuring easy field installation. Our complete D-sub product line and dedicated accessories enable us to provide flexible and cost-effective connectivity solutions to meet any complex application challenge.
This 13W3 mixed D-sub connector has many great features, including:
- Coaxial Contacts: Deliver superior fidelity and low-loss transmission for RF and video signals.
- Solder Cup Termination: Allows for fast, secure, and reliable cable soldering.
- Precision Machined Contacts: Gold-plated brass contacts offer superior conductivity and long-term corrosion resistance.
- 4-40 UNC Screw Lock: Provides a secure, vibration-proof connection with mating cables.
- Metal Shielding Shell: Provides excellent EMI shielding and robust protection against shock and vibration.
Main Specifications:
General Information:
| Product Number: | YC-681-1236 | |
| Connector Series: | Combo D-Sub | |
| Contact Arrangement: | 13W3 | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 13 Pin | |
| Shell Sizes: | B | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Not Applicable | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contact | |
| Contact Function: | Coaxial and Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| current rating: | 2A | |
| Rated Voltage: | 250V AC |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of the 13W3 mixed D-sub connector:
- Mobile Robotics and AGV;
- Professional A/V and Stage Lighting;
- Medical Equipment Carts;
- Industrial Power Supplies and DC Motor Drives;
- Industrial Lasers and Plasma Cutting Systems;
- High-Power Test and Measurement.
