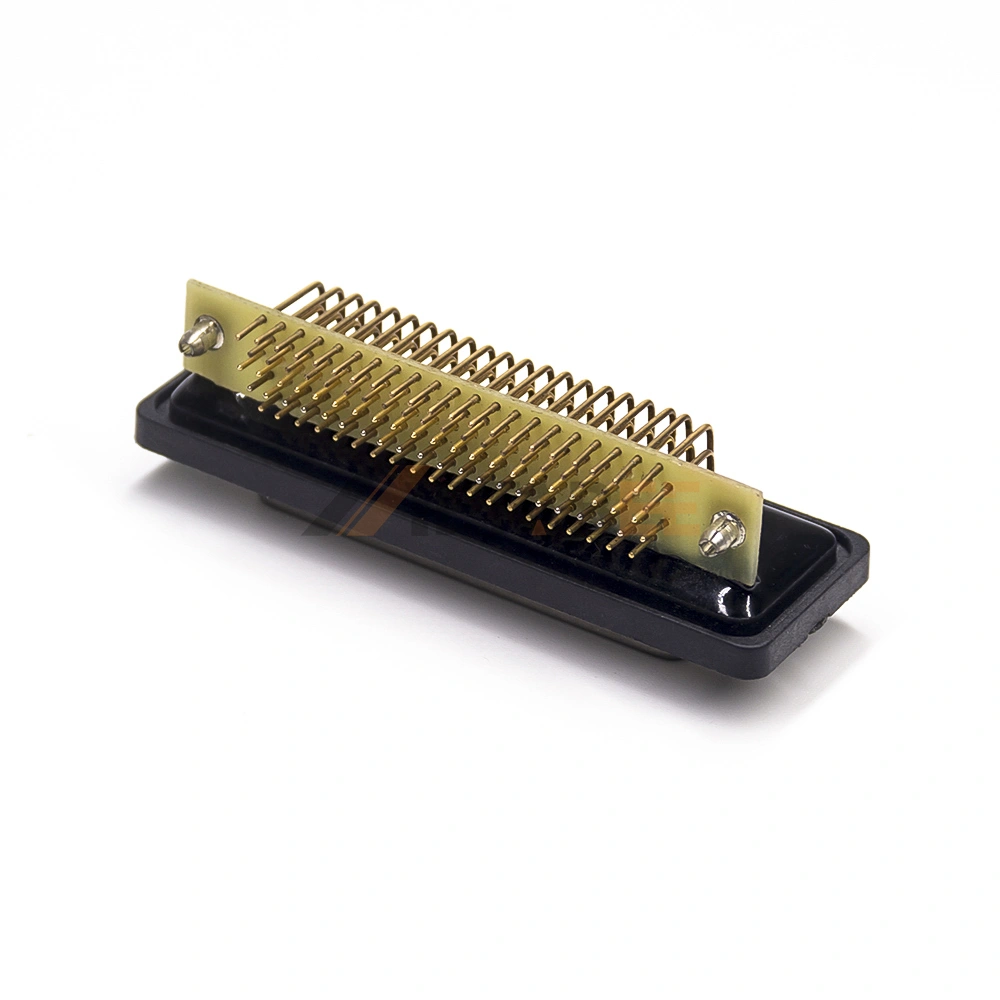

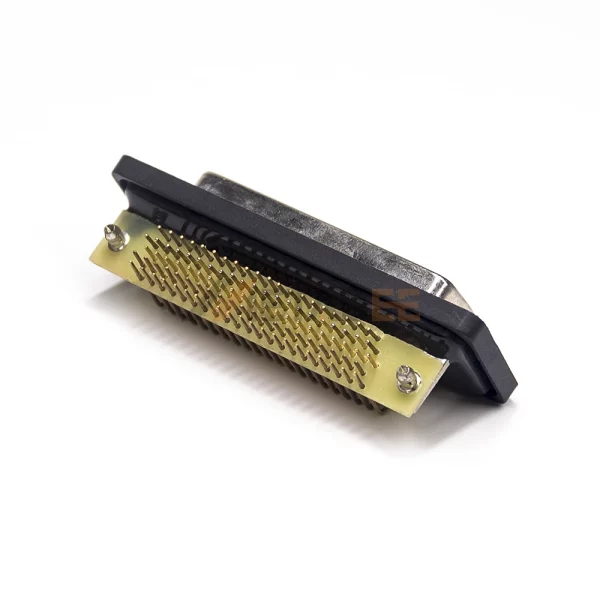

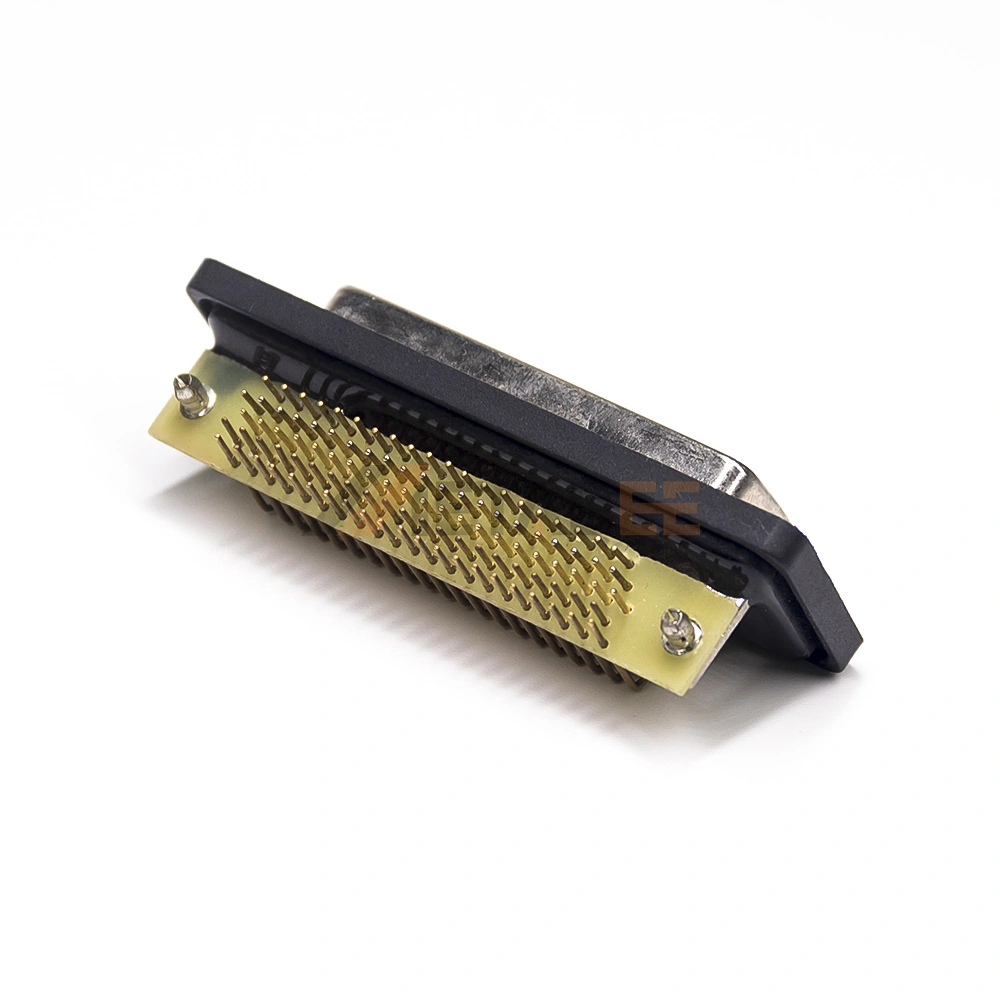

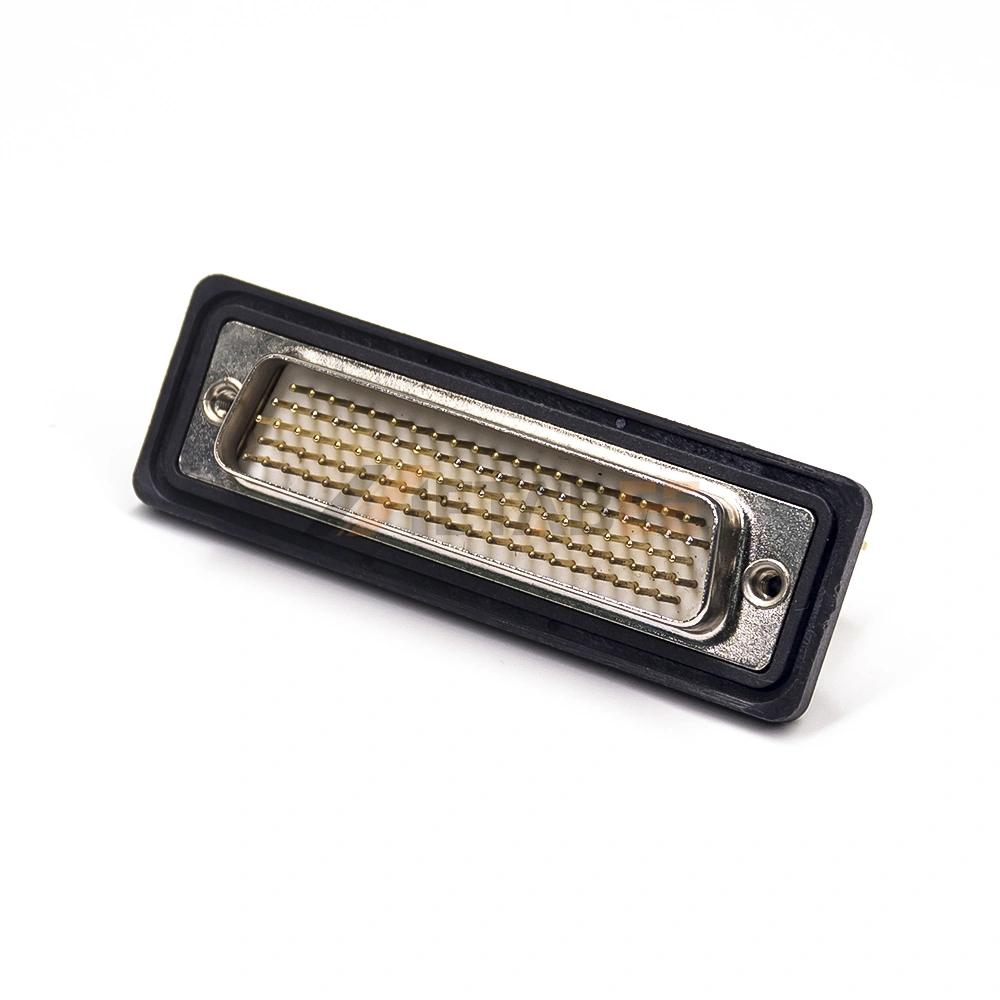

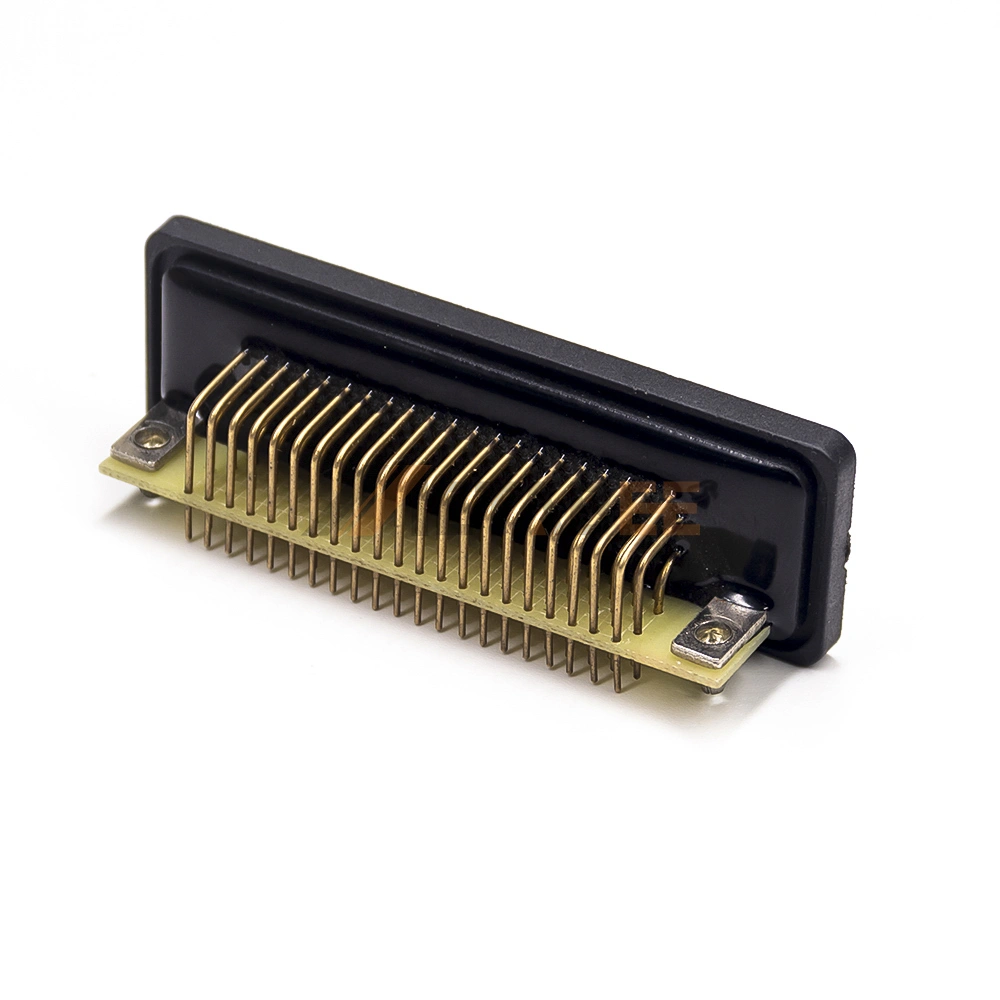

Waterproof High Density 104 Pin D-Sub Male Connector for PCB Mount, Right Angle, Machined Contacts, 2.29mm Pitch, IP67
Introduction:
This high-density D-Sub 104-pin male connector is engineered for secure PCB mounting in demanding environments. Its IP67-rated steel housing provides ultimate defense. Resist water, dust, and corrosion completely. Benefit from high-density 104-pin signal contacts. Right-angle orientation simplifies PCB layout. Solder termination enables robust board connections. It has a precise signal transmission with a 2.29mm pitch in a 5-row layout. Precision-machined brass pins ensure optimal performance. Gold plating over nickel guarantees superior conductivity and longevity. The PBT insulator delivers stable performance. Ideal for demanding industrial control, outdoor displays, and marine electronics. Withstand temperatures from -25°C to +85°C. Rated for 3A and 250V. Built for durability where sealing matters.
Main Features:
- High-Density 104-Pin Interface: Features 104 male signal pins arranged in 5 rows.
- IP67 Sealed Design: Guarantees waterproof and dustproof performance.
- Secure PCB Mount Style: Designed for direct and reliable soldering onto printed circuit boards.
- Solder Termination: Provides robust and dependable electrical connections to the PCB.
- Precision 2.29mm Pitch: Enables compact design for space-constrained applications.
- Wide Operating Temperature: Functions reliably from -25°C to +85°C.
Main Specifications:
General Information:
| Product Number: | YC-681-5043 | |
| Connector Series: | High Density D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 104 Pin | |
| Number of Rows: | 5 | |
| Pitch: | 2.29mm | |
| Shell Sizes: | 6 | |
| Mount Type: | PCB Mount | |
| Contact Termination: | Solder | |
| Contact Type: | Machined Contacts | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 15 mΩ |
Environmental Performance:
| Temperature Range: | -25℃ to +85℃ | |
| IP Rating: | IP67 | |
| Flammability Rating: | UL94 V-0 |
Applications of the Waterproof High Density D-Sub 104 Pin Male Connector:
- Industrial Control Systems
- Marine Electronics & Navigation
- Medical Monitoring Devices
- Outdoor LED Displays & Signage
- Test & Measurement Systems
- Transportation Telematics
