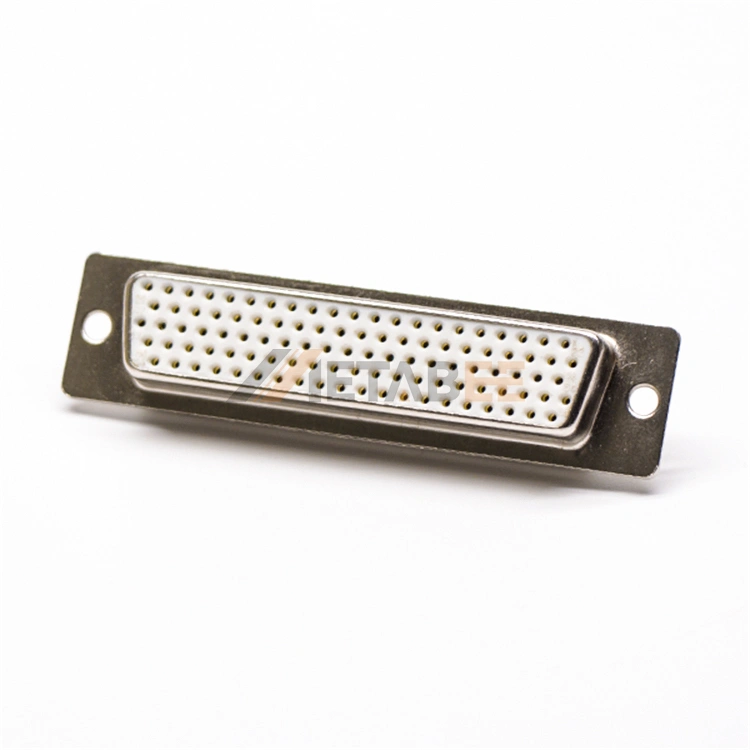

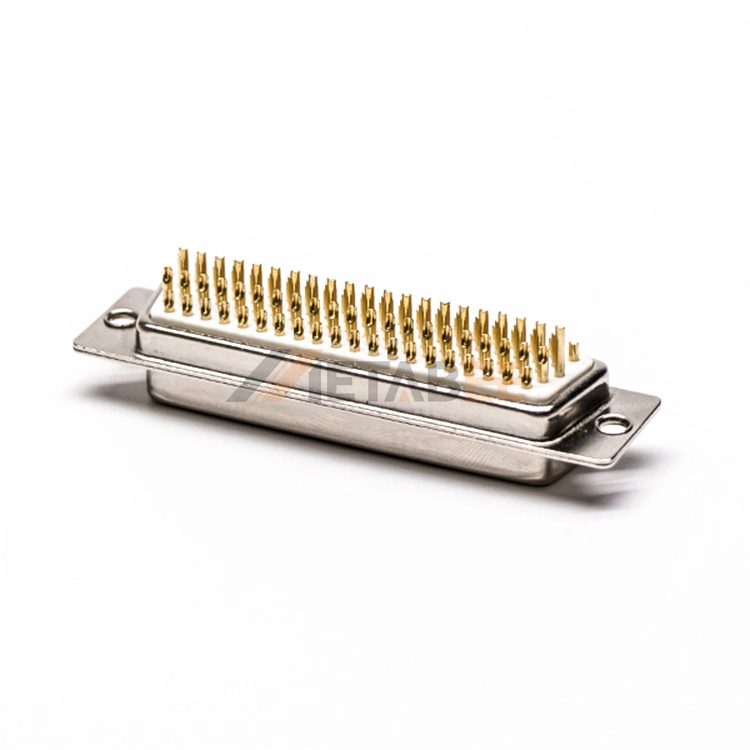

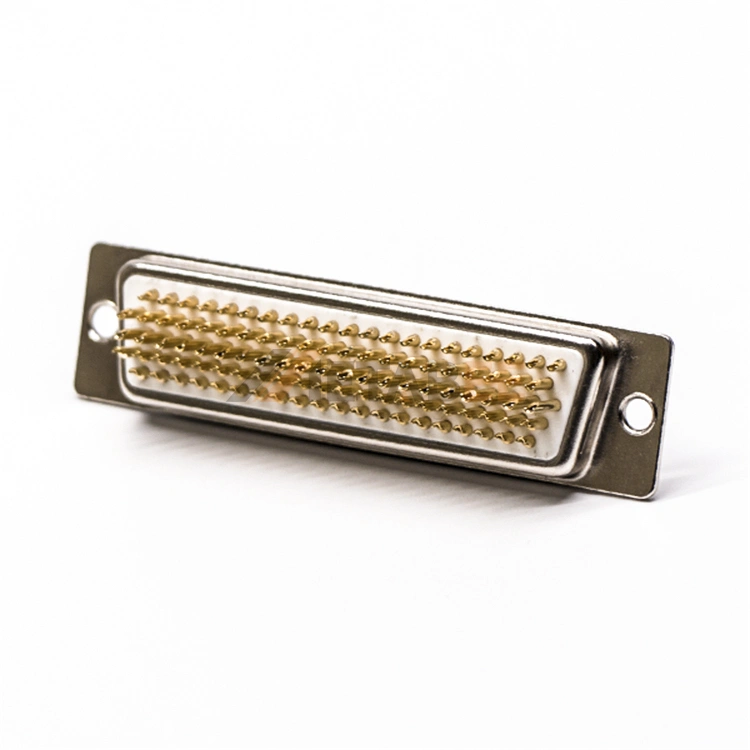

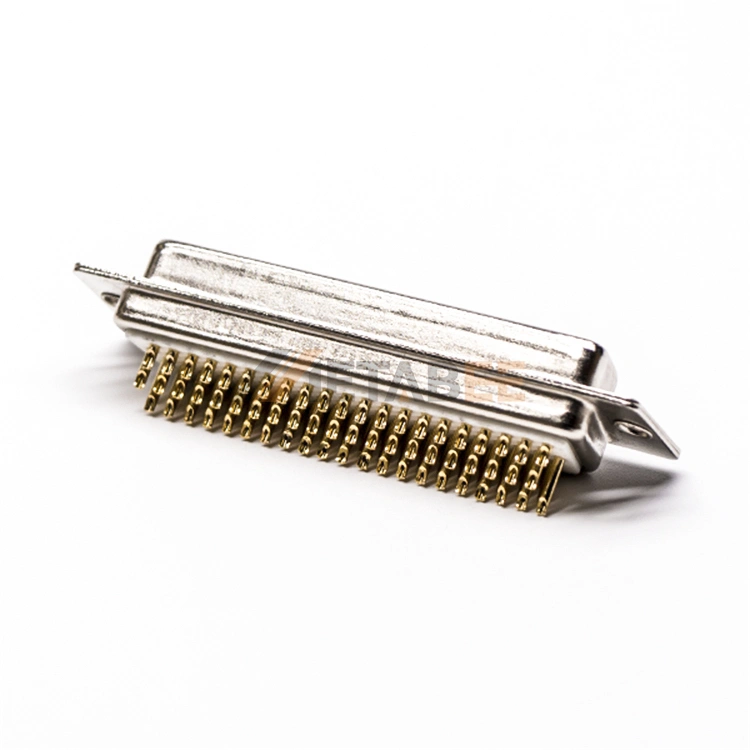

104 Pin D-Sub Female Connector, Cable Type, Solder Cup, 1.27mm Pitch, Machined Contacts
Introduction:
This is a high-density 104-position D-Sub female connector. It features an E-size steel housing with nickel plating for durability. Designed for cable mounting. Termination is via solder cups. Its fine 1.27mm pitch enables high-density connections in a compact E shell. The connector uses machined brass contacts. Contacts are female and gold plated for reliable signal transmission. Contact plating thickness is 3.00 microinches. The insulator is UL94 V-0 rated thermoplastic polyester. It operates reliably from -55°C to +125°C. Rated for 5A and 300V. Ideal for demanding signal applications requiring robust, high-pin-count solutions.
This HD D-sub 104 pin connector has many great features, including:
- High-Density: Offers a compact solution for applications requiring a high number of signal lines.
- Solder Cup Termination: Allows for direct, secure soldering of individual wires for custom cable assemblies.
- Cable Mount Design: Designed to be mounted directly on a cable, perfect for building custom I/O harnesses.
- Gold-Plated Contacts: Ensures excellent conductivity and long-term corrosion resistance across all pins.
- Durable Steel Shell: A strong nickel-plated housing offers robust physical protection and EMI shielding.
Main Specifications:
General Information:
| Product No.: | YC-681-1130 | |
| Connector Series: | High Density D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Female | |
| Number of Contacts: | 104 Pin | |
| Number of Rows: | 5 | |
| Pitch: | 1.27mm | |
| Shell Sizes: | E | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Not Applicable | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 300V |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| Flammability Rating: | UL94 V-0 |
Applications of this HD D-sub 104 Pin Connector:
- Industrial Automation Systems;
- Medical Diagnostic Equipment;
- Test and Measurement Instruments;
- Data Communication Hardware;
- Aerospace and Military Electronics;
- Computer Peripherals and Servers;
