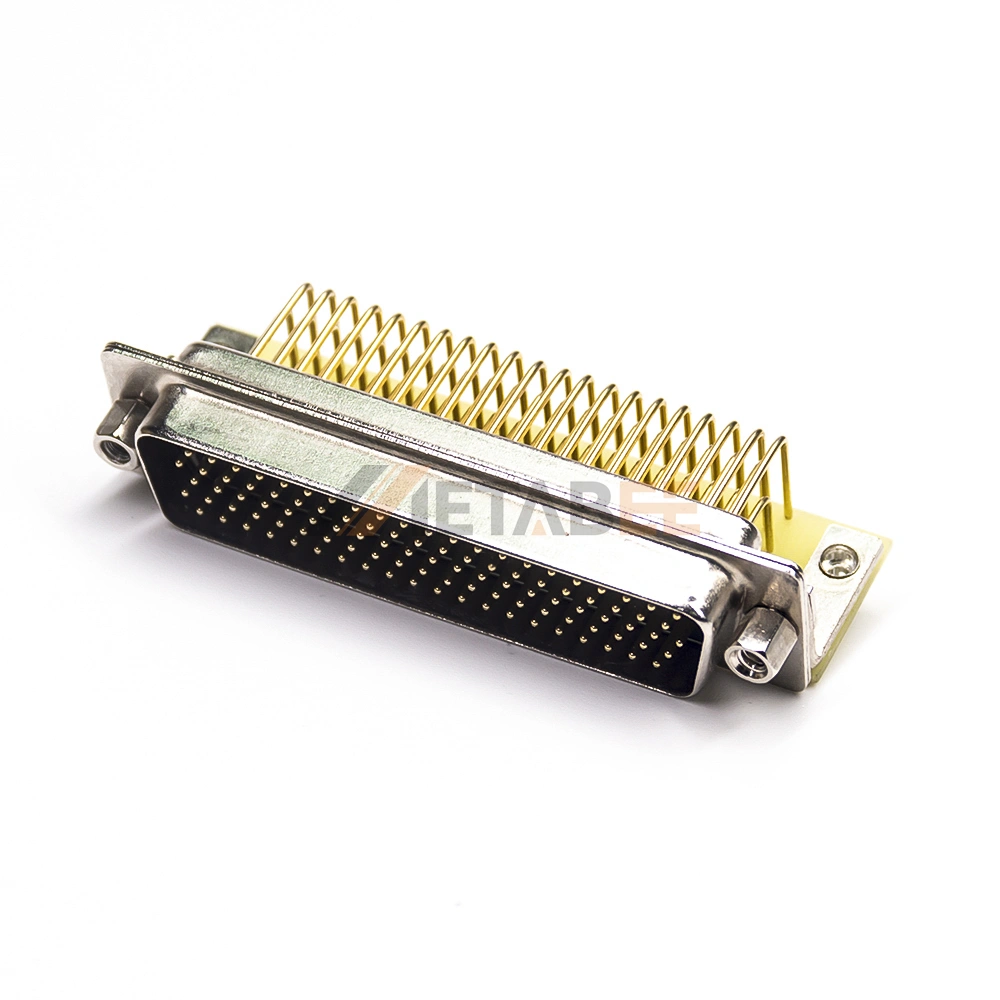

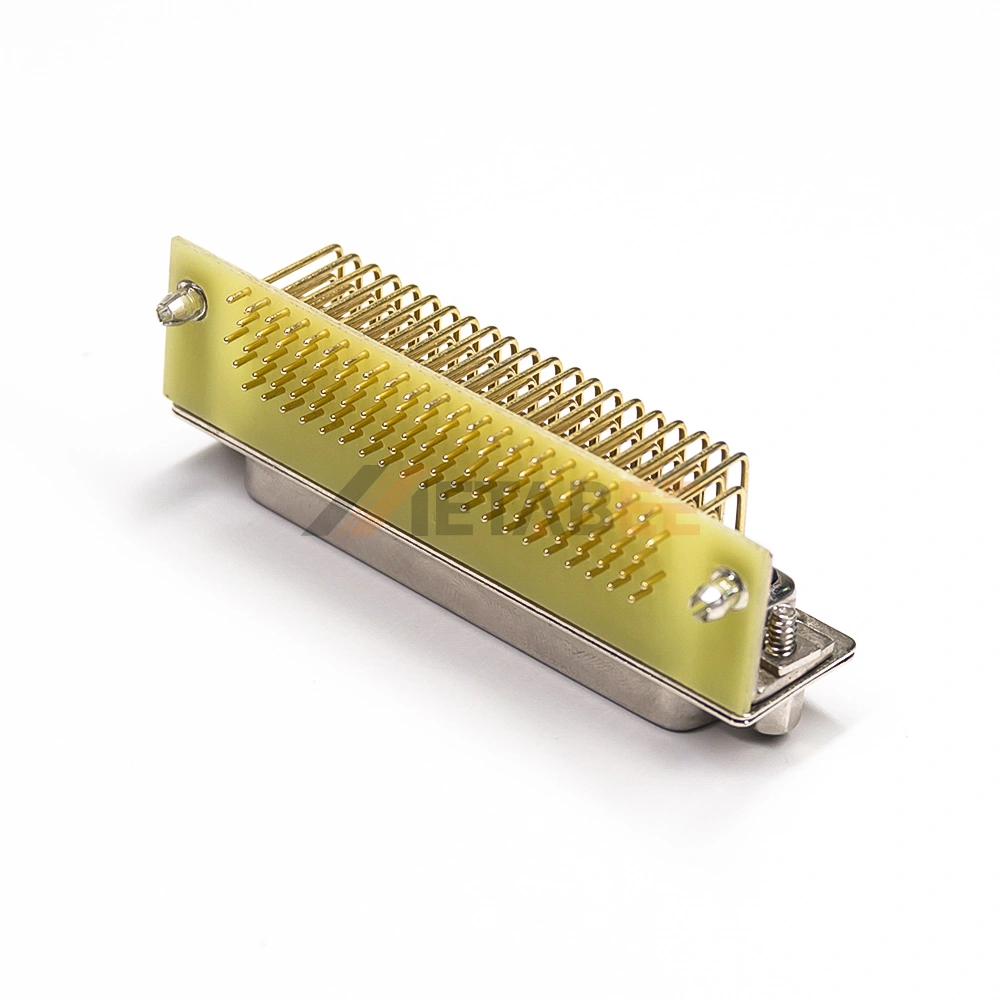

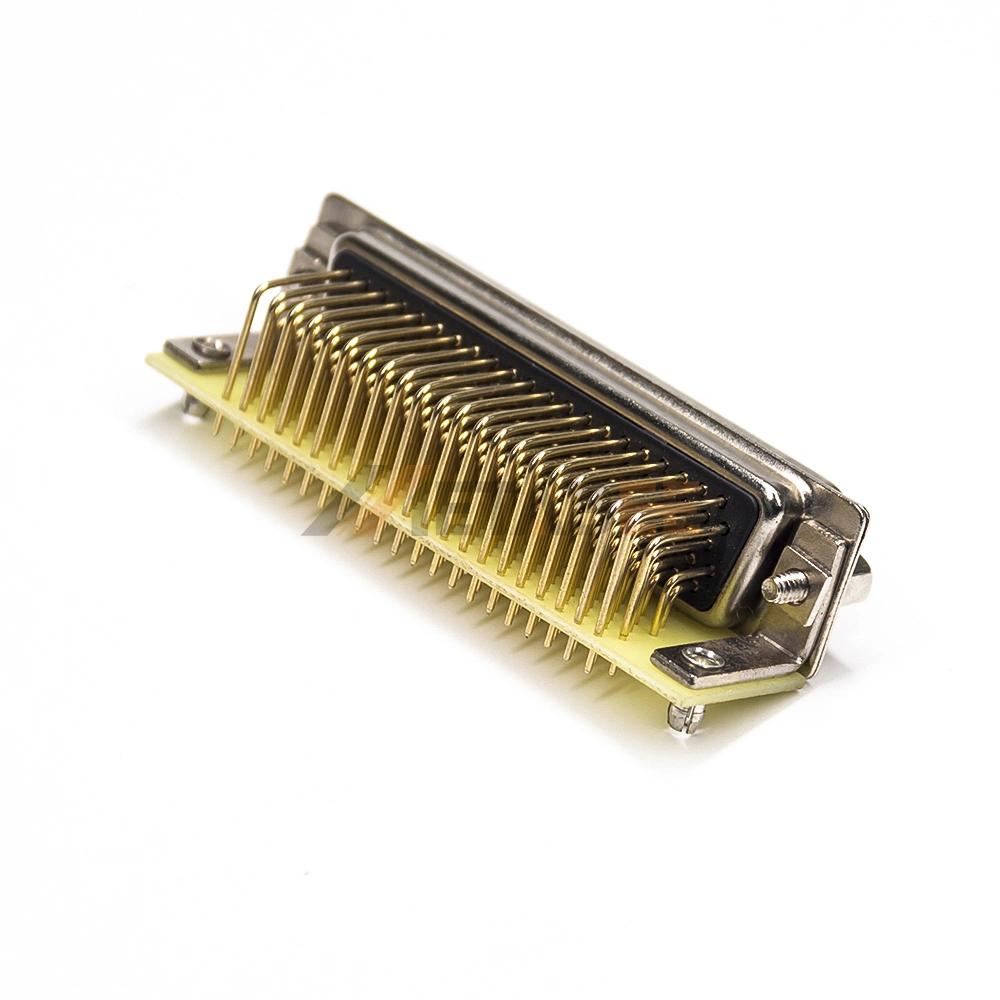

D-Sub 104 Pin Male Connector for PCB Mount, Through Hole, Right Angle, 1.27mm Pitch
Introduction:
This high-density D-Sub 104 pin male connector enables robust PCB integration. Features a right-angle orientation and PCB mount design. Its through-hole solder termination ensures secure board attachment. Its fine 1.27mm pitch enables high-density connections in a compact E shell. The connector uses machined brass contacts. Mounting is simplified with a front screw lock for secure PCB attachment. Contacts are male and gold plated for reliable signal transmission. The insulator is UL94 V-0 rated thermoplastic polyester. It operates reliably from -55°C to +125°C. Rated for 5A and 300V. Ideal for demanding signal applications requiring robust, high-pin-count solutions.
This HD D-sub 104 pin connector has many great features, including:
- High-Density: Offers a compact solution for applications requiring a high number of signal lines.
- PCB Mounting: Features a right-angle orientation through-hole design.
- Front Screw Lock: Ensures secure mating with tool-accessible positive locking.
- Machined Brass Contacts: Ensures superior electrical performance and mechanical durability.
- Gold-Plated Contacts: Ensures excellent conductivity and long-term corrosion resistance across all pins.
- Durable Steel Shell: A strong nickel-plated housing offers robust physical protection and EMI shielding.
Main Specifications:
General Information:
| Product No.: | YC-681-4131 | |
| Connector Series: | High Density D-Sub | |
| Orientation: | Right Angle | |
| Connector Gender: | Male | |
| Number of Contacts: | 104 Pin | |
| Number of Rows: | 5 | |
| Pitch: | 1.27mm | |
| Shell Sizes: | E | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Front Screw Lock | |
| Contact Termination: | Solder | |
| Contact Type: | Machined Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 300V |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| Flammability Rating: | UL94 V-0 |
Applications of this HD D-sub 104 Pin Connector:
- Industrial Automation Systems;
- Medical Diagnostic Equipment;
- Test and Measurement Instruments;
- Data Communication Hardware;
- Aerospace and Military Electronics;
- Computer Peripherals and Servers;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
