Our Digital Visual Interface (DVI) connectors deliver uncompressed video transmission up to 4.95 Gbps across flat panels, graphics cards, monitors, and HDTVs. Available in DVI-D (Digital-Only), DVI-A (Analog-Only, VGA-compatible), and DVI-I (Integrated Digital/Analog) configurations, they feature crossing ground blades and precision contacts for optimal signal integrity. Encased in a zinc alloy shield for robust EMI reduction with a 500 VAC dielectric withstand voltage, they come in straight or right-angle PCB receptacles and male cable assemblies.

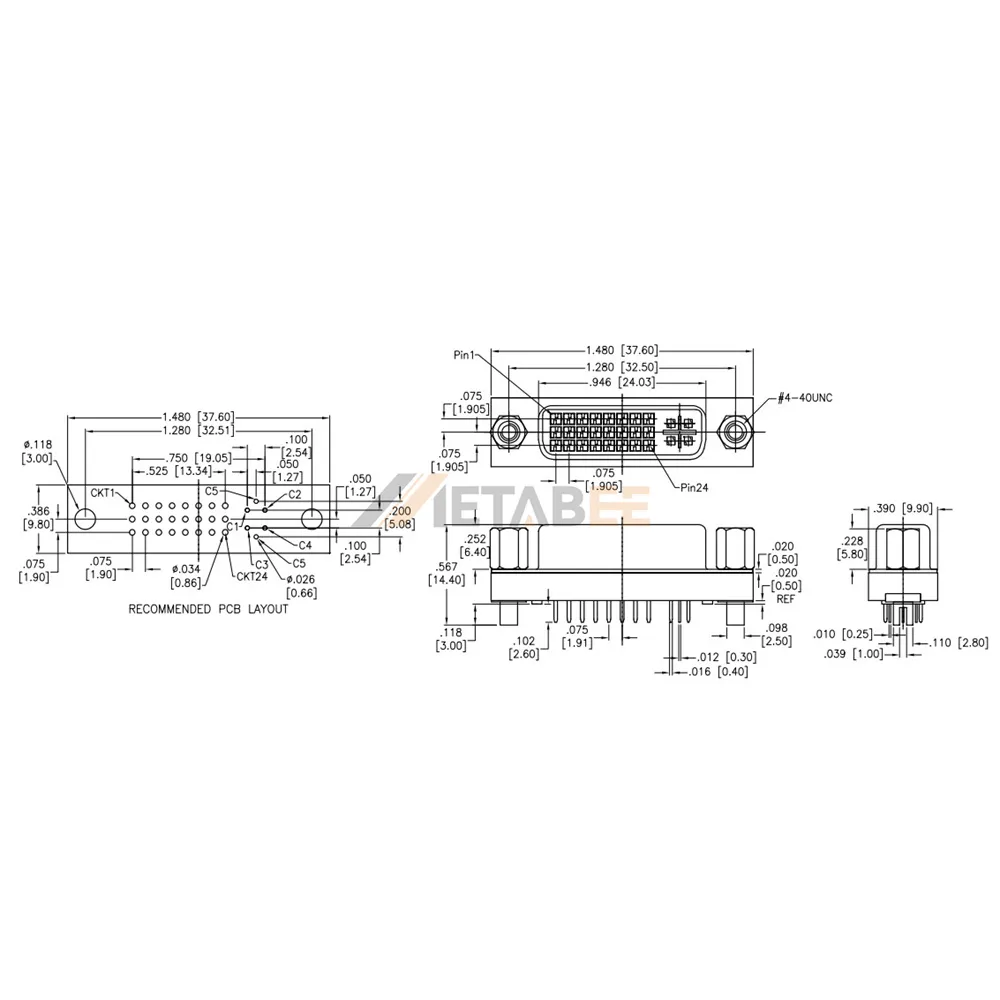

This 24+5 pin (29 pos) vertical DVI-I female connector mounts perpendicularly onto the circuit board to provide an integrated digital and analog video interface. Supporting Dual Link mode, it delivers high-bandwidth digital display streams while maintaining full compatibility with legacy analog RGB video. The nickel-plated steel shell ensures rugged physical protection, consistent chassis grounding, and reliable EMI suppression.
Key Features
-
DVI-I Dual Link: Transmits high-resolution digital and analog video across a single port.
-
Plug-and-Play Connectivity: Ensures seamless setup with standard video display equipment.
-
Vertical Through-Hole Mount: Delivers rigid perpendicular retention to resist mating stress.
-
Pre-Installed 4-40 Jack Screws: Locks mating cable screws firmly against shock and vibration.
Main Specifications:
General Information:
| Product No.: | DVI-ST-24-2-JS1-C | |
| Product Type: | DVI Connector | |
| Pin Count: | 29 Pos (24+5 Pin) | |
| Gender: | Female | |
| DVI Standard: | DVI-I (Analog/Digital) | |
| Link Mode : | Dual Link | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Mounting Hardware: | Jack Screws, 4-40 UNC |
Materials and Plating:
| Insulator Material: | PA66, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | White | |
| Contact Material: | Brass | |
| Contact Plating: | Gold flash over Nickel | |
| Shell Material: | Steel, Nickel plated |
Electrical:
| Current rating: | 1.5 Amps max | |
| Operating voltage: | 40 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 1000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 500 VDC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Applications:
- Consumer electronics
- Set-top boxes
- High-end TVs/monitors
- Video graphics applications
- Workstations
- Personal computers
- Business equipment
