Our Digital Visual Interface (DVI) connectors deliver uncompressed video transmission up to 4.95 Gbps across flat panels, graphics cards, monitors, and HDTVs. Available in DVI-D (Digital-Only), DVI-A (Analog-Only, VGA-compatible), and DVI-I (Integrated Digital/Analog) configurations, they feature crossing ground blades and precision contacts for optimal signal integrity. Encased in a zinc alloy shield for robust EMI reduction with a 500 VAC dielectric withstand voltage, they come in straight or right-angle PCB receptacles and male cable assemblies.

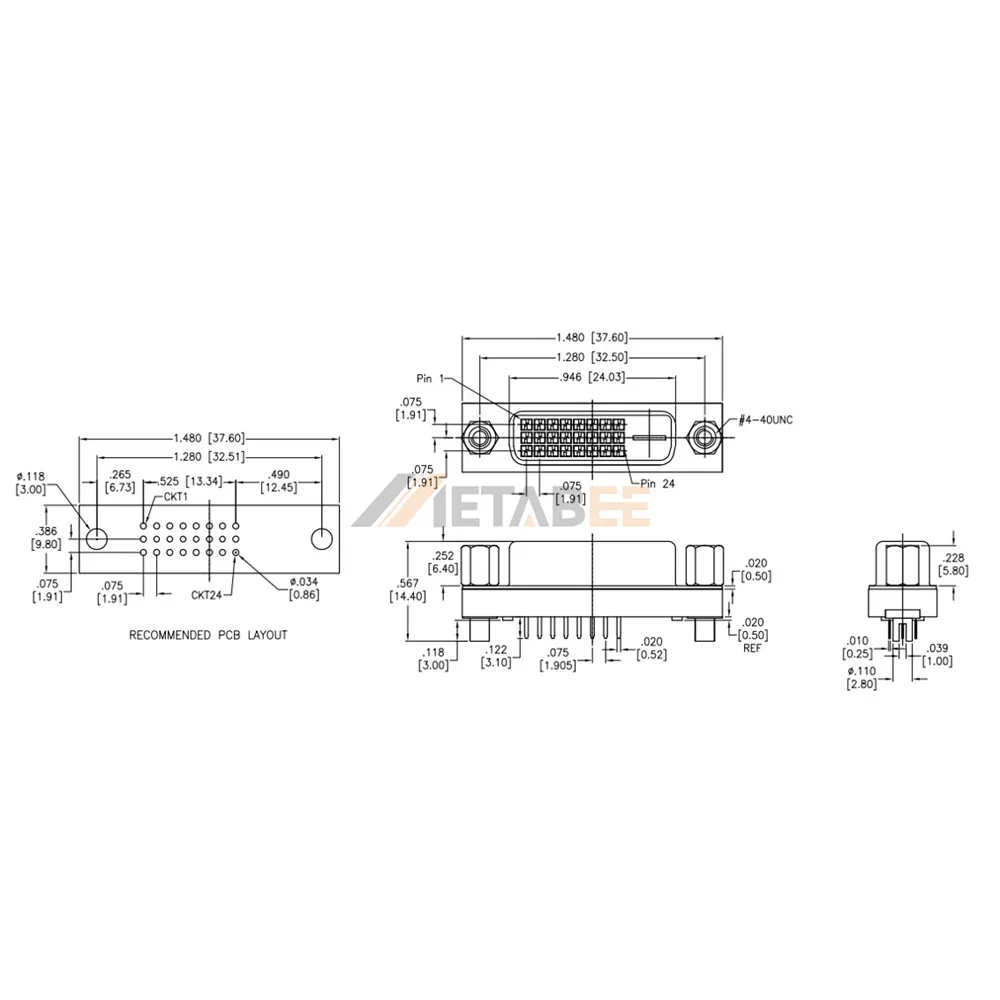

This 25-position (24+1 pin) vertical DVI-D female connector mounts directly onto circuit boards to deliver high-resolution digital visual output. Operating in Dual Link mode, it supports pure digital video transmission with wide pixel bandwidth for clear display fidelity.
Key Features
-
DVI-D Dual Link: Delivers high-bandwidth digital video signals for high-resolution displays.
-
Plug-and-Play Connectivity: Enables seamless integration with standard digital video displays.
-
Vertical Through-Hole Mount: Provides rigid perpendicular board retention to resist mating stress.
-
Pre-Installed 4-40 Jack Screws: Secures mating cable thumbscrews against vibration and pull-out.
Main Specifications:
General Information:
| Product No.: | DVI-ST-24-1-JS1-A | |
| Product Type: | DVI Connector | |
| Pin Count: | 25 Pos (24+1 Pin) | |
| Gender: | Female | |
| DVI Standard: | DVI-D (Digital) | |
| Link Mode : | Dual Link | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Mounting Hardware: | Jack Screws, 4-40 UNC |
Materials and Plating:
| Insulator Material: | PA66, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Ivory | |
| Contact Material: | Brass | |
| Contact Plating: | Gold flash over Nickel | |
| Shell Material: | Steel, Nickel plated |
Electrical:
| Current rating: | 1.5 Amps max | |
| Operating voltage: | 40 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 1000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 500 VDC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Applications:
- Consumer electronics
- Set-top boxes
- High-end TVs/monitors
- Video graphics applications
- Workstations
- Personal computers
- Business equipment
