Our Digital Visual Interface (DVI) connectors deliver uncompressed video transmission up to 4.95 Gbps across flat panels, graphics cards, monitors, and HDTVs. Available in DVI-D (Digital-Only), DVI-A (Analog-Only, VGA-compatible), and DVI-I (Integrated Digital/Analog) configurations, they feature crossing ground blades and precision contacts for optimal signal integrity. Encased in a zinc alloy shield for robust EMI reduction with a 500 VAC dielectric withstand voltage, they come in straight or right-angle PCB receptacles and male cable assemblies.

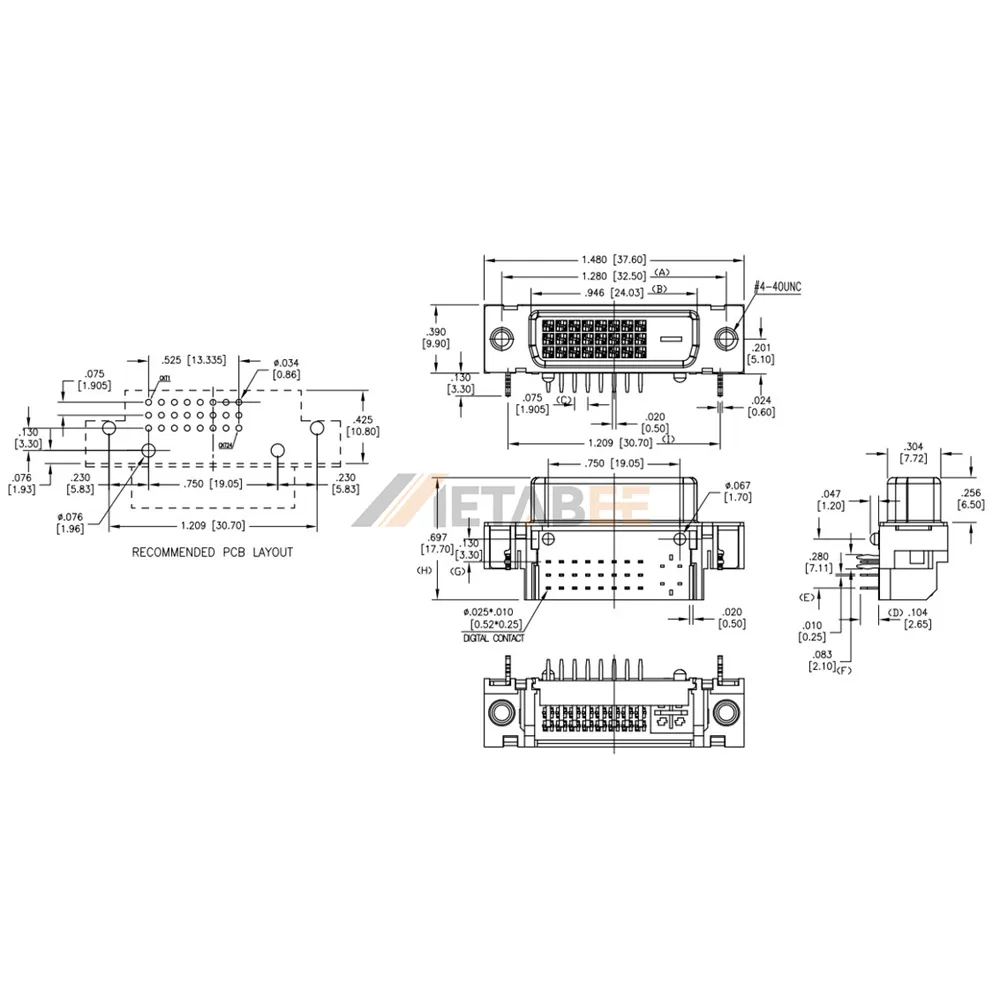

This 25-position (24+1 pin) DVI-D female socket mounts in a right-angle orientation onto host PCBs to provide digital video connectivity.
Key Features
- DVI-D Dual Link: Delivers high-bandwidth, lossless digital video up to 2560×1600 without signal degradation.
- Right-Angle PCB Mount: Provides a low-profile board layout with high retention against repetitive cable pulling.
- Integrated 4-40 Hardware: Secures cable connections against shock and industrial vibration.
- Nickel-Plated Steel Shell: Provides 360° EMI/RFI shielding and continuous chassis grounding.
- Gold Flash Contacts: Resists terminal oxidation to maintain ultra-low contact resistance over long-term use.
Main Specifications:
General Information:
| Product No.: | DVI-SL-24-1 | |
| Product Type: | DVI Connector | |
| Pin Count: | 25 Pos (24+1 Pin) | |
| Gender: | Female | |
| DVI Standard: | DVI-D (Digital) | |
| Link Mode : | Dual Link | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Mounting Hardware: | Threaded, 4-40 UNC |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced | |
| Insulator Color: | Ivory | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold flash over Nickel | |
| Shell Material: | SPCC, Nickel plated |
Electrical:
| Current rating: | 1.5 Amps max | |
| Operating voltage: | 40 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 1000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 500 VDC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
Applications:
- Consumer electronics
- Set-top boxes
- High-end TVs/monitors
- Video graphics applications
- Workstations
- Personal computers
- Business equipment
