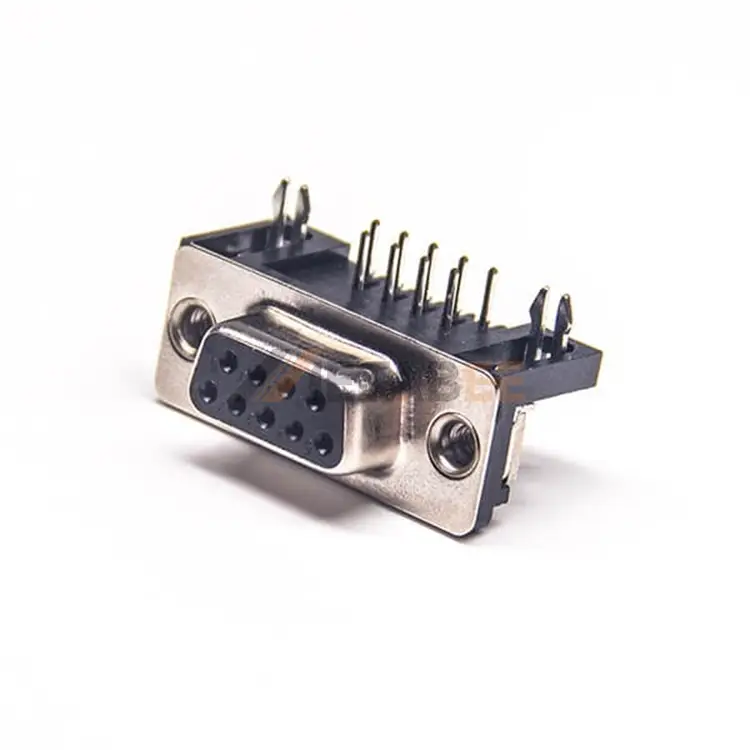

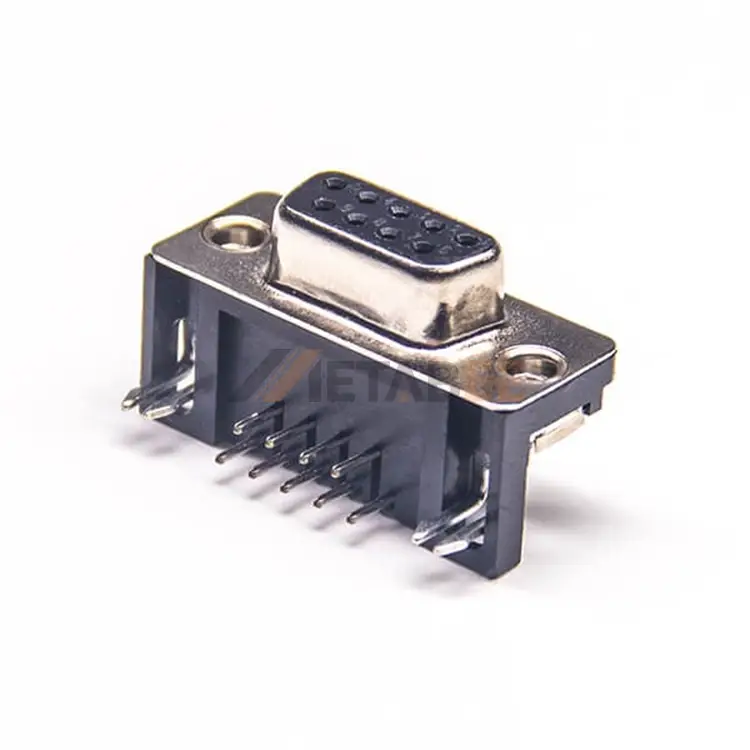

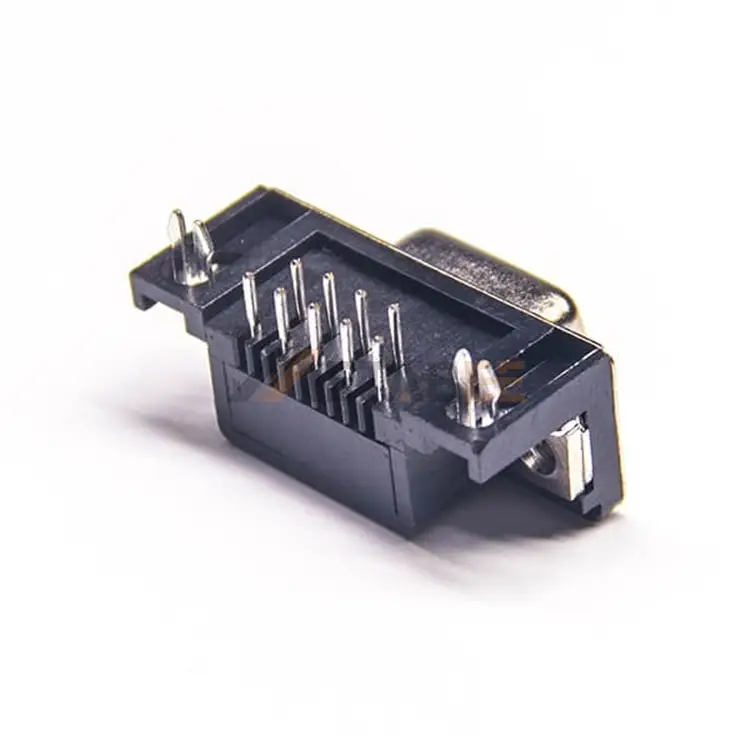

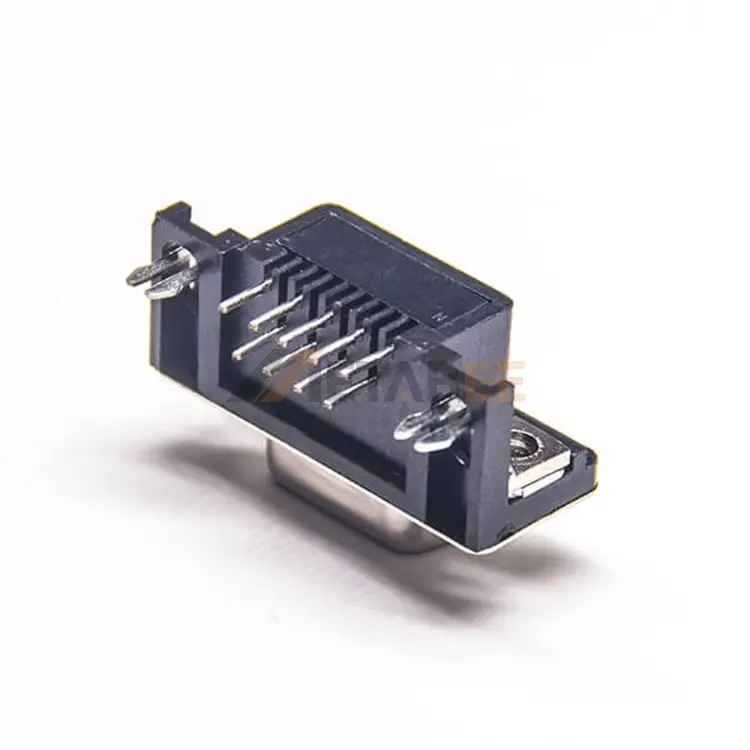

Right Angle DB9 Female Connector for PCB Mount, Through Hole, 2.77mm Pitch, IP20
Introduction:
This right-angle DB9 female connector is designed for direct PCB mounting. Its 90-degree orientation is perfect for space-constrained designs where cables need to exit parallel to the board. It uses the through-hole mounting method, creating a strong and reliable solder joint for excellent mechanical stability. The connector features tin-plated contacts, offering an economical and dependable connection. A durable steel shell protects it from physical stress. It’s an ideal choice for adding a standard serial port to industrial controls or embedded systems.
Engineered for both safety and easy integration, this right angle DB9 female connector includes the following key features:
- Right Angle Orientation: Saves vertical space by exiting cables parallel to the PCB.
- PCB Through-Hole Mount: Provides a strong, permanent mechanical bond to the circuit board
- Solder Termination: Creates a permanent electrical connection by soldering the pins to the PCB traces.
- IP20 Rating: Ensures touch-proof safety for use in standard indoor equipment.
- Durable Steel Shell: Offers robust physical protection and basic EMI shielding for the connection.
Main Specifications:
General Information:
| Product No.: | YC-681-4063 | |
| Connector Series: | D-Sub Connectors | |
| Orientation: | Right Angle | |
| Connector Gender: | Female | |
| Number of Contacts: | 9 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77 mm | |
| Shell Sizes: | E | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | Solder | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Tin Plating | |
| Contact Plating Thickness: | 3.00 µin (0.076 µm) | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 500V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | IP20 | |
| Flammability Rating: | UL94 V-0 |
Applications of this right angle DB9 female connector:
- Industrial Automation;
- Serial Communication;
- Telecommunications;
- Test & Measurement Equipment;
- Computer Peripherals;
- Robotics and CNC Machine Control;
- Prototyping and Custom Assemblies;
- Medical and Laboratory Equipment;
