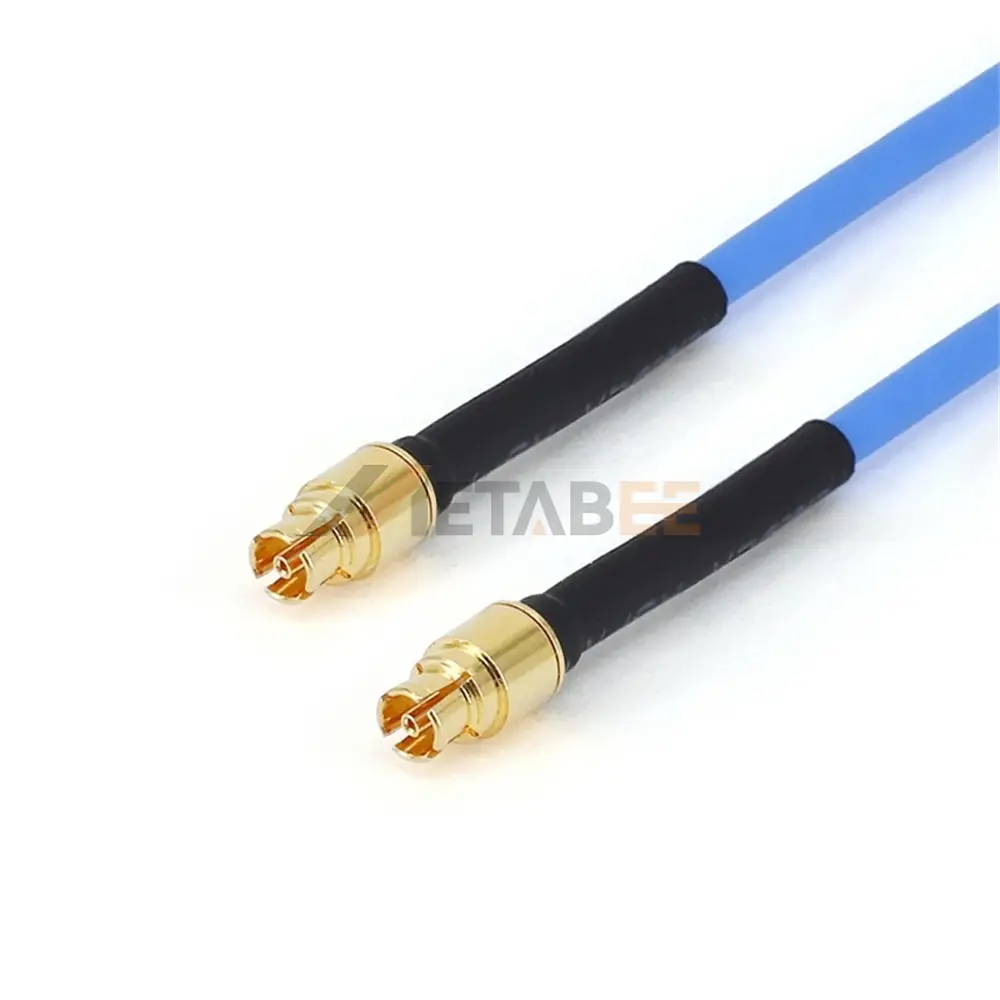

Mini-SMP (GPPO) Female to Mini-SMP (GPPO) Female using .047” Semi-Flexible Cable with FEP Jacket, DC-40 GHz
Introduction
This Metabee RF test cable is a high-performance coaxial cable designed for high-frequency testing and measurement applications. It features an Mini-SMP female straight connector on one end and an Mini-SMP female straight connector on the other, ensuring stable and reliable signal transmission. The cable assembly is the .047” semi-flexible stable cable, providing reliable signal transmission. The cable supports frequencies up to 40 GHz and maintains a consistent impedance of 50 ohms, ensuring accurate and repeatable measurements across a broad frequency spectrum. Built to withstand harsh environments, it operates seamlessly in a temperature range of -40℃ to +125℃.
Main features are as follows:
- High-Performance Coaxial Cable: Designed for high-frequency testing and measurement applications
- Mini-SMP (GPPO) to Mini-SMP (GPPO) Connector: Ensures stable and reliable signal transmission with consistent connectivity.
- .047” Semi-Flexible Low-Loss Cable: Provides reliable signal transmission with minimal signal degradation
- Frequency Range up to 40 GHz: Supports high-frequency applications for precise measurements.
- 50 Ohm Impedance: Maintains consistent impedance for accurate and repeatable measurements.
- Wide Operating Temperature Range (-40℃ to +125℃): Built to withstand harsh environmental conditions.
Main Specifications:
| Part No.: | RF-Mini-SMPF-MiniSMPF-50-01 | |
| Product Series: | RF Test Cables | |
| Product Type: | Mini-SMP to Mini-SMP | |
| Brand: | Metabee | |
| Connector 1: | Mini-SMP Connector | |
| Connector 1 – Gender: | Female | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | Mini-SMP Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Type: | .047” Semi-Flexible Cable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Frequency Range: | DC-40 GHz | |
| Temperature Range: | -40℃ to +125℃ | |
| Other Feature: | None |
Applications of this Mini-SMP Female to Mini-SMP (GPPO) Female Cable:
Here are some main applications:
- RF Testing and Measurement;
- Telecommunications;
- Broadcasting
- Aerospace and Defense;
- Satellite Communications;
- Medical Equipment;
We can customize this RF test cable assembly according to your special requirements. Get a free quotation now!
