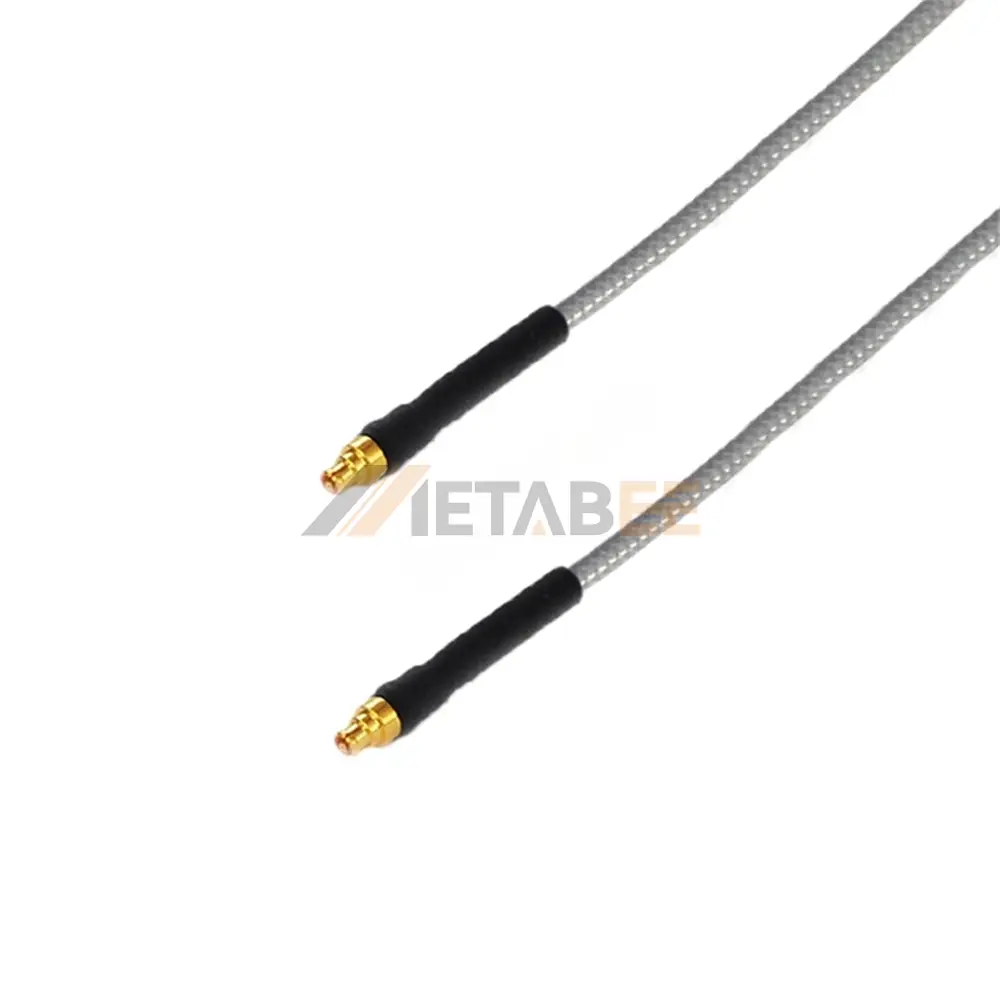

Mini-SMP (GPPO) Female to Mini-SMP (GPPO) Female using 3506 Series Flexible Cable, DC-40 GHz
Introduction
This Metabee RF test cable is a high-performance coaxial cable designed for high-frequency testing and measurement applications. It features an Mini-SMP female connector on one end and an Mini-SMP female connector on the other, ensuring stable and reliable signal transmission. The cable assembly is the 3506 series flexible stable cable, providing reliable signal transmission. The cable supports frequencies up to 40 GHz and maintains a consistent impedance of 50 ohms, ensuring accurate and repeatable measurements across a broad frequency spectrum. Built to withstand harsh environments, it operates seamlessly in a temperature range of -40℃ to +165℃.
Main features are as follows:
- High-Performance Coaxial Cable: Designed for high-frequency testing and measurement applications
- Mini-SMP (GPPO) to Mini-SMP (GPPO) Connector: Ensures stable and reliable signal transmission with consistent connectivity.
- 3506 Series Flexible Low-Loss Cable: Provides reliable signal transmission with minimal signal degradation
- Frequency Range up to 40 GHz: Supports high-frequency applications for precise measurements.
- 50 Ohm Impedance: Maintains consistent impedance for accurate and repeatable measurements.
- Wide Operating Temperature Range (-40℃ to +165℃): Built to withstand harsh environmental conditions.
Main Specifications:
| Part No.: | RF-Mini-SMPF-MiniSMPF-50-04, RF-Mini-SMPF-MiniSMPF-50-05 | |
| Product Series: | RF Test Cables | |
| Product Type: | Mini-SMP to Mini-SMP | |
| Brand: | Metabee | |
| Connector 1: | Mini-SMP Connector | |
| Connector 1 – Gender: | Female | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | Mini-SMP Connector | |
| Connector 2 – Gender: | Female | |

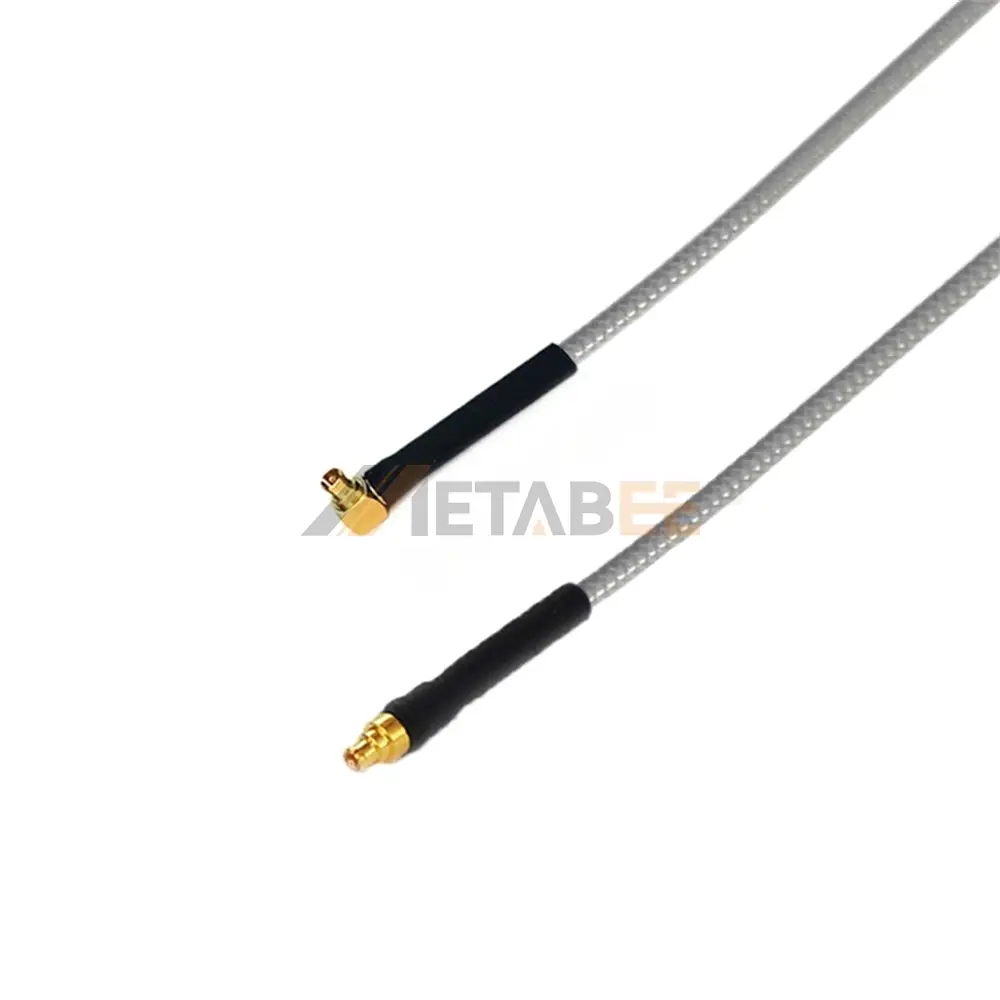

| Connector 2 – Orientation: | Straight, Right Angle | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Type: | 3506 Series Cable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Frequency Range: | DC-40 GHz | |
| Temperature Range: | -40℃ to +165℃ | |
| Other Feature: | None |
Applications of this Mini-SMP Female to Mini-SMP FemaleFlexible Cable:
Here are some main applications:
- RF Testing and Measurement;
- Telecommunications;
- Broadcasting
- Aerospace and Defense;
- Satellite Communications;
- Medical Equipment;
We can customize this RF test cable assembly according to your special requirements. Get a free quotation now!
