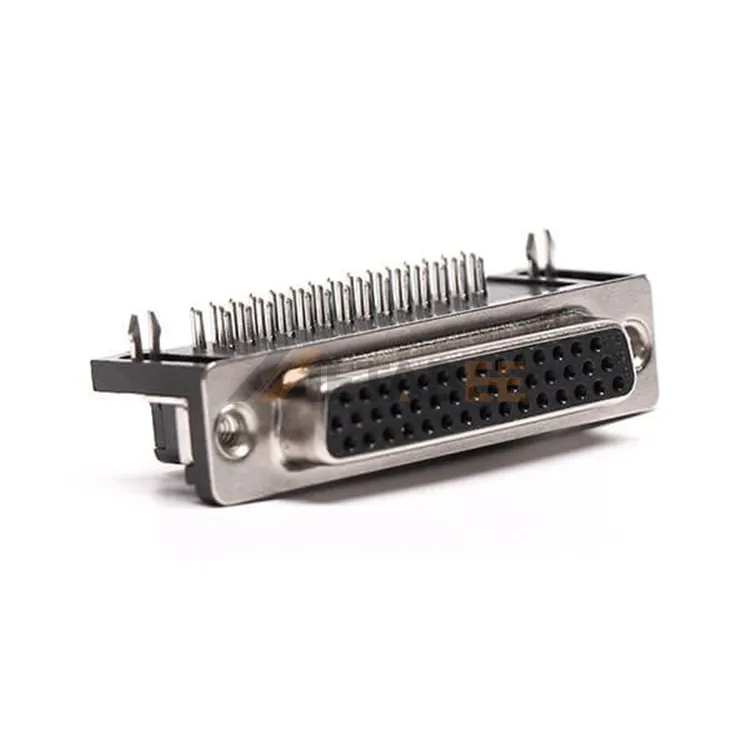

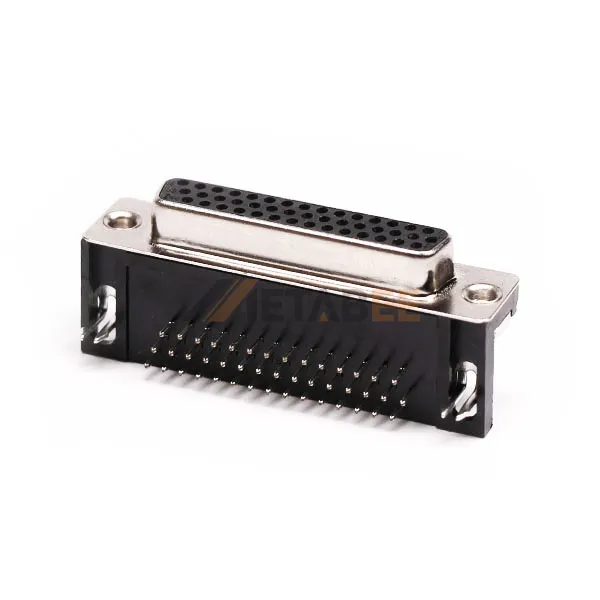

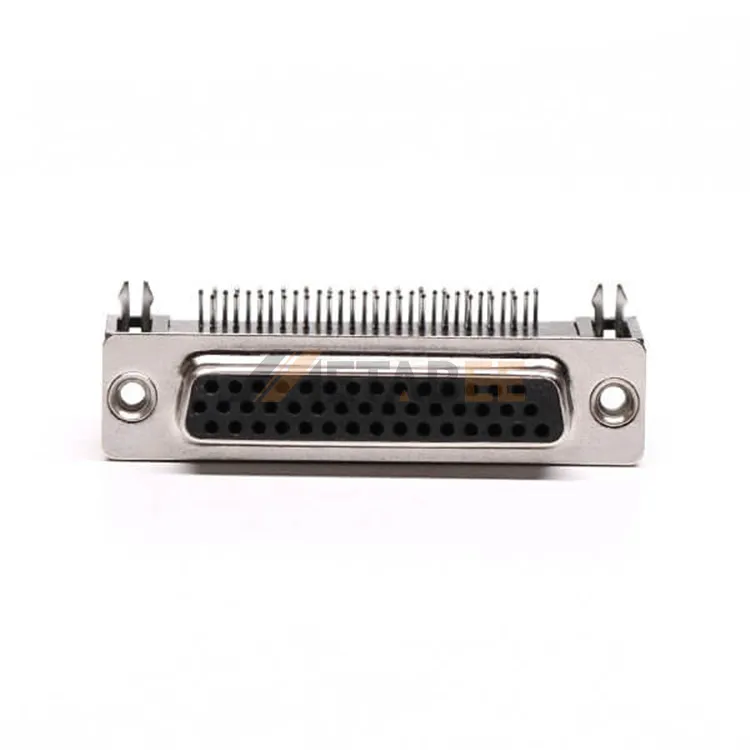

High Density D-Sub 44 Pin Female Connector for PCB Mount, Through Hole, 2.29mm Pitch
Introduction:
This high-density D-sub 44 pin female connector provides a high-density solution for complex I/O applications. It is engineered for direct PCB mounting, featuring through-hole solder pins for a highly stable and permanent bond to the circuit board. It features reliable stamped contacts with a durable nickel plating, offering good wear and corrosion resistance for general-purpose use. With a rugged steel shell for protection, it’s an ideal choice for medical devices, industrial control systems, and specialized data communication equipment.
This high-density D-sub 44 pin female connector has many great features, including:
- High-Density: Offers a compact solution for applications requiring a high number of signal lines.
- Right Angle Orientation: Provides a space-saving, low-profile horizontal connection.
- Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
- Stamped & Nickel-Plated Contacts: A durable and cost-effective option offering good wear and corrosion resistance.
- Durable Steel Shell: A strong nickel-plated housing offers robust physical protection and EMI shielding.
Main Specifications:
General Information:
| Product No.: | YC-681-1190 | |
| Connector Series: | High Density D-Sub | |
| Orientation: | Right Angle | |
| Connector Gender: | Female | |
| Number of Contacts: | 44 Pin | |
| Number of Rows: | 3 | |
| Pitch: | 2.29mm | |
| Shell Sizes: | B | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | Solder | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Nickel Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 2A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of this high-density D-sub 44 pin female connector:
- Multi-Port Serial Adapters;
- Data Acquisition (DAQ) Systems;
- Test & Measurement Equipment;
- Legacy Multi-Monitor Video Output;
- Telecommunications & Networking;
- Custom Prototyping and Repair;
