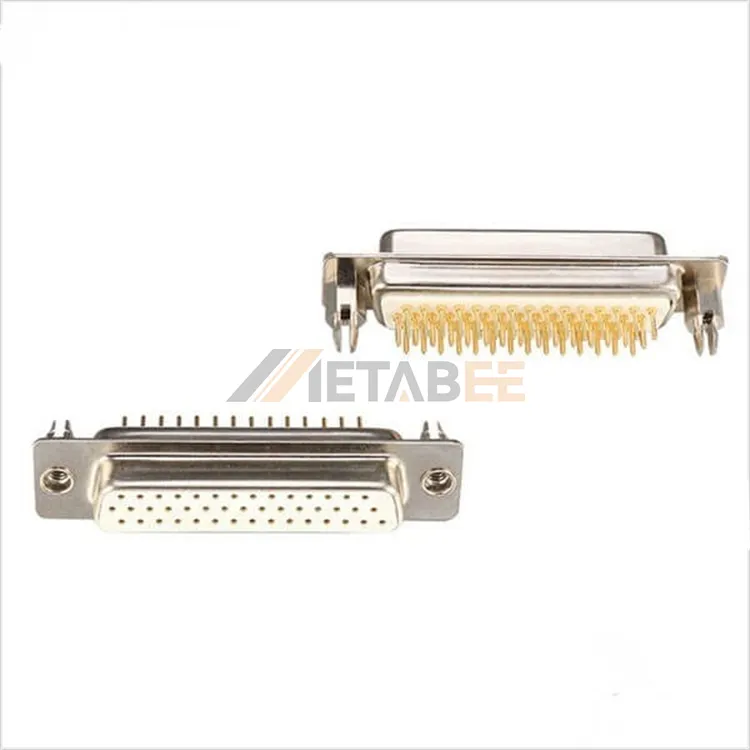

DB44 D-Sub Female Connector for PCB Mount, Through Hole, Machined Contacts, 2.29mm Pitch

DB44 D-Sub Female Connector for PCB Mount, Through Hole, Machined Contacts, 2.29mm Pitch

Introduction:

This DB44 D-sub female connector provides a high-density solution for complex I/O applications. It is engineered for direct PCB mounting, featuring through-hole solder pins for a highly stable and permanent bond to the circuit board. This connector is built with high-quality machined contacts, offering superior durability and a more reliable connection than standard stamped types. Its gold-plated contacts ensure excellent signal integrity. With a rugged steel shell for protection, it’s an ideal choice for medical devices, industrial control systems, and specialized data communication equipment.

This DB44 D-sub female connector has many great features, including:

• High-Density: Offers a compact solution for applications requiring a high number of signal lines.
• Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
• Machined Contacts: Provides superior durability and a more reliable connection for critical, high-mating-cycle use.
• Gold-Plated Contacts: Ensures excellent conductivity and long-term corrosion resistance across all pins.
• Durable Steel Shell: A strong nickel-plated housing offers robust physical protection and EMI shielding.

Main Specifications:

General Information:

Materials and Plating:

Electrical Performance:

Environmental Performance:

Applications of this DB44 D-sub female connector:

• Multi-Port Serial Adapters;
• Data Acquisition (DAQ) Systems;
• Test & Measurement Equipment;
• Legacy Multi-Monitor Video Output;
• Telecommunications & Networking;
• Custom Prototyping and Repair;
