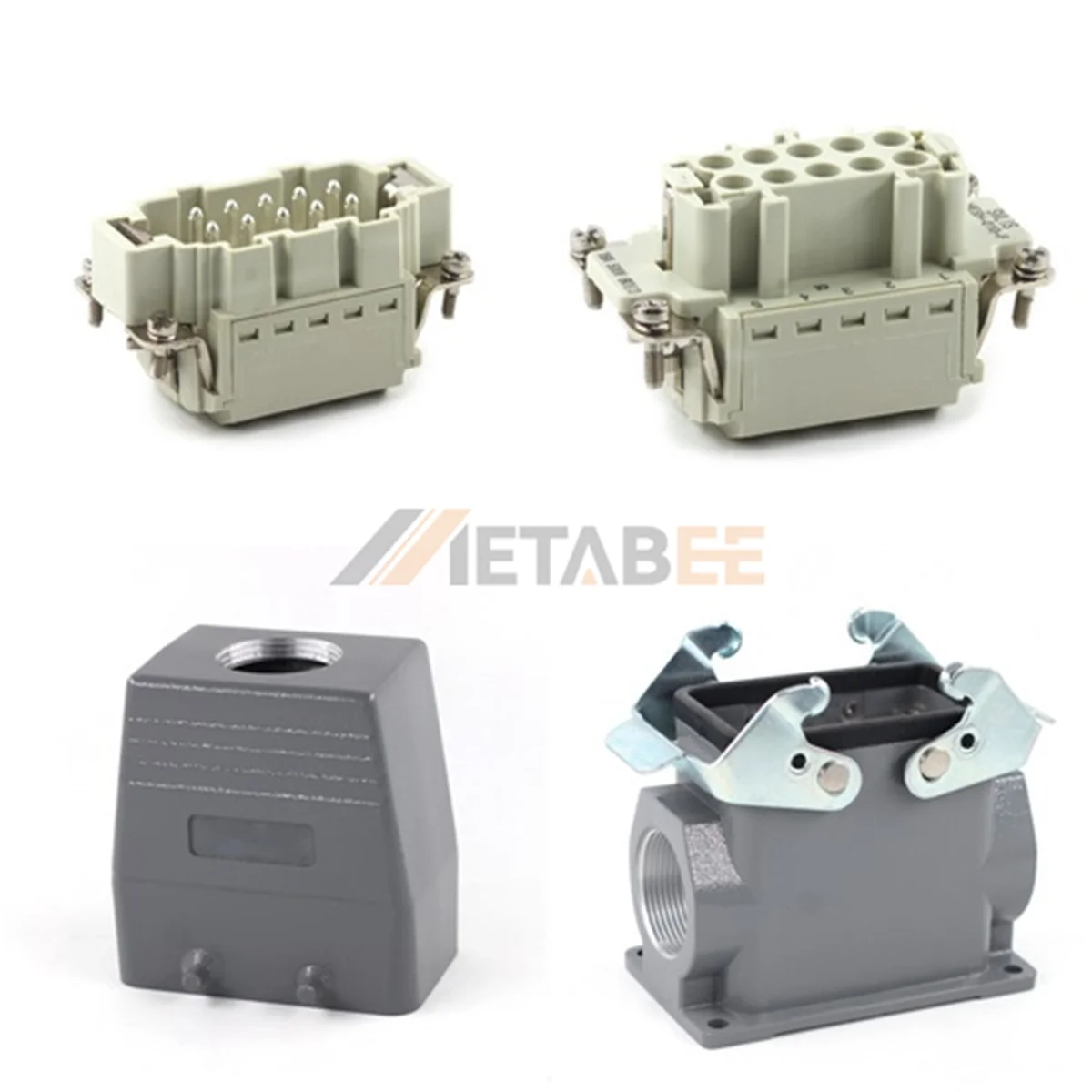

HE Series High Construction Heavy Duty Connector with 2 Levers, 10+PE, Surface Mount, Quick Lock Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series high construction heavy duty connector is perfect for complex wiring tasks. It features a high housing design that gives you extra internal space for cables. The surface mounting base is equipped with two locking levers for maximum stability. This double lock keeps the connection tight even under strong vibration. The assembly uses quick lock terminal technology to speed up installation. You can connect the 10+PE inserts instantly without screws or tools. It reliably handles industrial loads rated at 16A and 500V. The hood supports top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- High construction housing offers extra wiring space.
- Two locking levers ensure superior connection stability.
- Quick lock terminals enable fast screwless connection.
- Surface mounting base installs on flat walls.
- Standard 10+PE configuration rated at 16A 500V.
Main Specifications:
General Information:
| Product No.: | HESH-010-SGRH-TSH, HESH-010-SGRH-TGH | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 10+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H10B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
