HE Series Heavy Duty Connector, 48+PE, Bulkhead Mount with Cover, Screw Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.

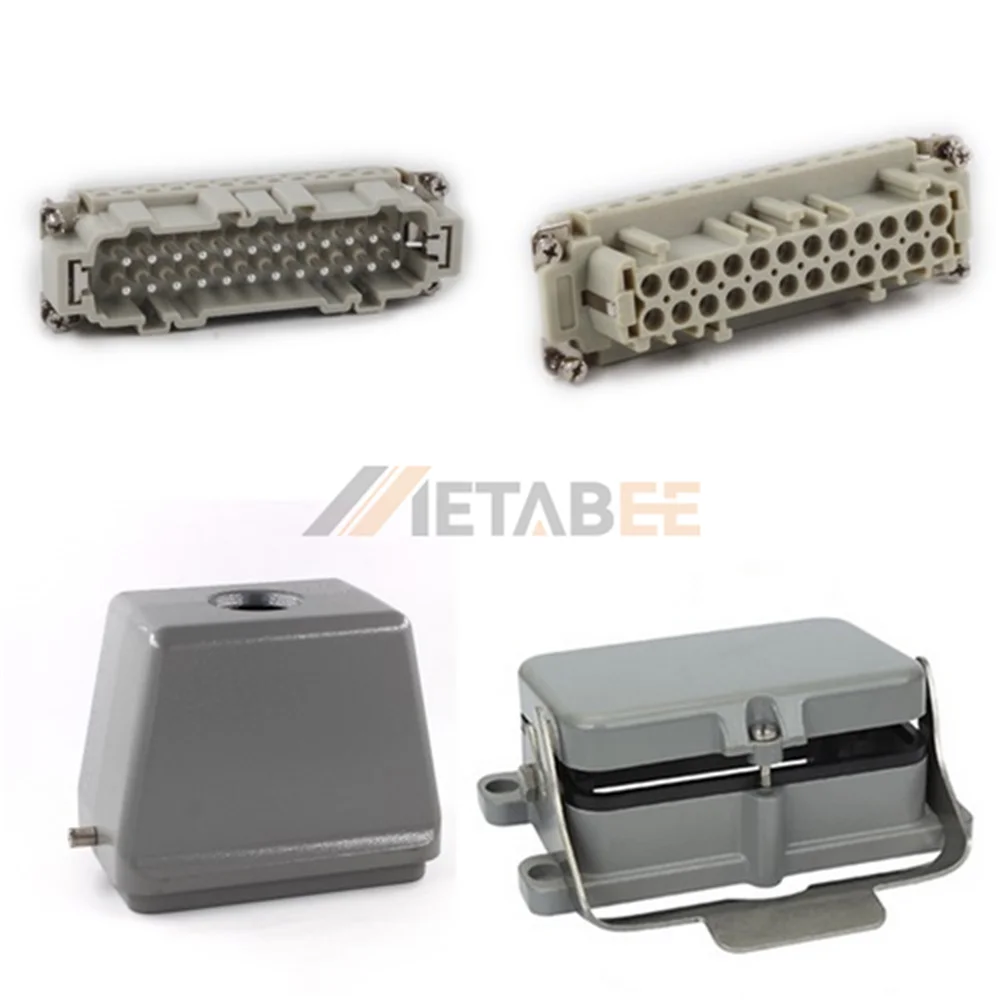

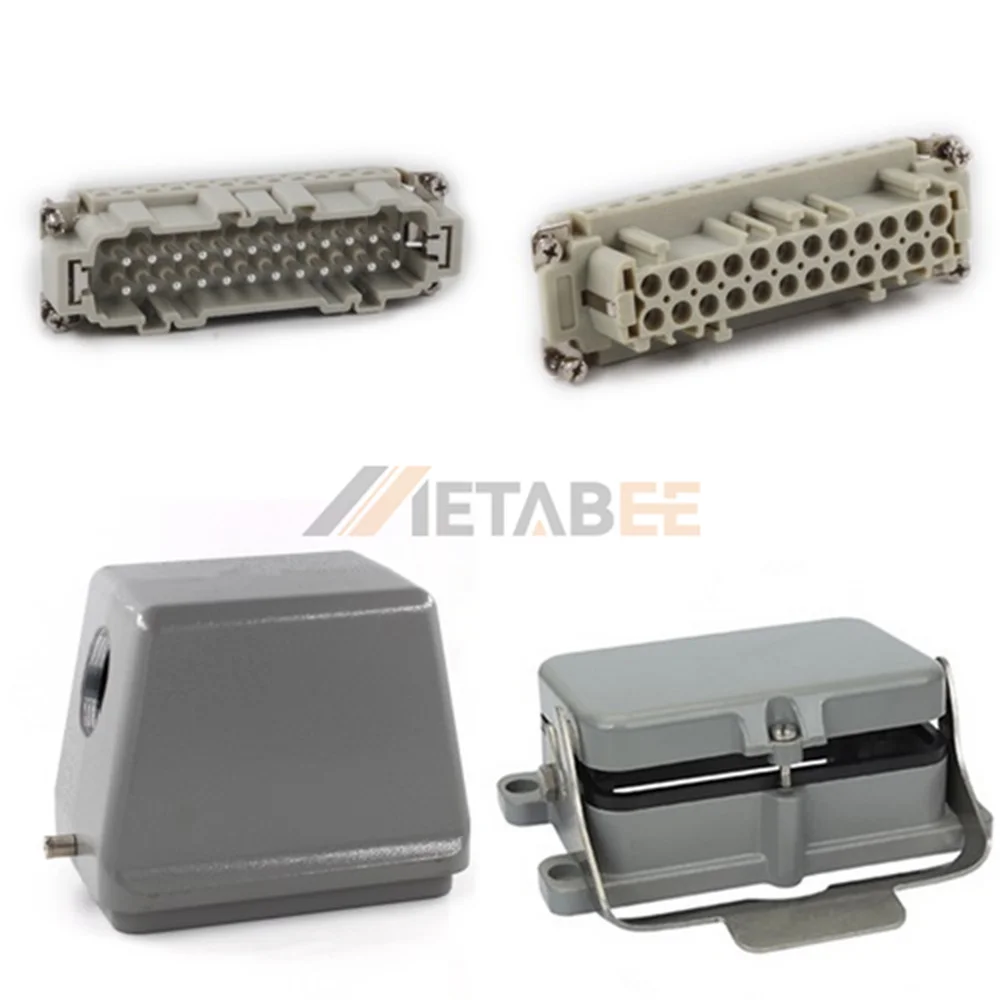

The HE series heavy duty connector ensures superior protection for massive interfaces. It features a bulkhead mounting base equipped with a sturdy cover. This shield keeps the high-density 48+PE configuration clean when disconnected. The assembly is unique because it combines two 24-pin inserts into one housing. You can connect the wires easily using standard screw terminal technology. It reliably handles industrial power loads rated at 16A and 500V. The hood offers top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Bulkhead base includes a cover for dust protection.
- Combines two 24-pin inserts for 48+PE connection.
- Rated at 16A 500V for high-density wiring.
- Screw terminal inserts require no crimping tools.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HE-048-AD-TS, HE-048-AD-TG | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 48+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H32B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | With Cover | |
| Thread Size: | M32, M40, M50, M63, PG29, PG36, PG42 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
