HE Series Heavy Duty Connector, 48+PE, Bulkhead Mounting, Screw Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector manages massive wiring systems efficiently. It features a high-density 48+PE configuration by combining two 24-pin inserts. This modular design fits into a single bulkhead mounting housing. You can attach the unit securely to machine panels through a standard cutout. Wiring is straightforward because of the screw terminal inserts. You only need a standard screwdriver to connect all the lines. It handles industrial power loads rated at 16A and 500V.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Combines two 24-pin inserts for 48+PE connection.
- Bulkhead mounting base fits large panel cutouts.
- Rated at 16A 500V for high-density wiring.
- Screw terminal inserts require no crimping tools.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:

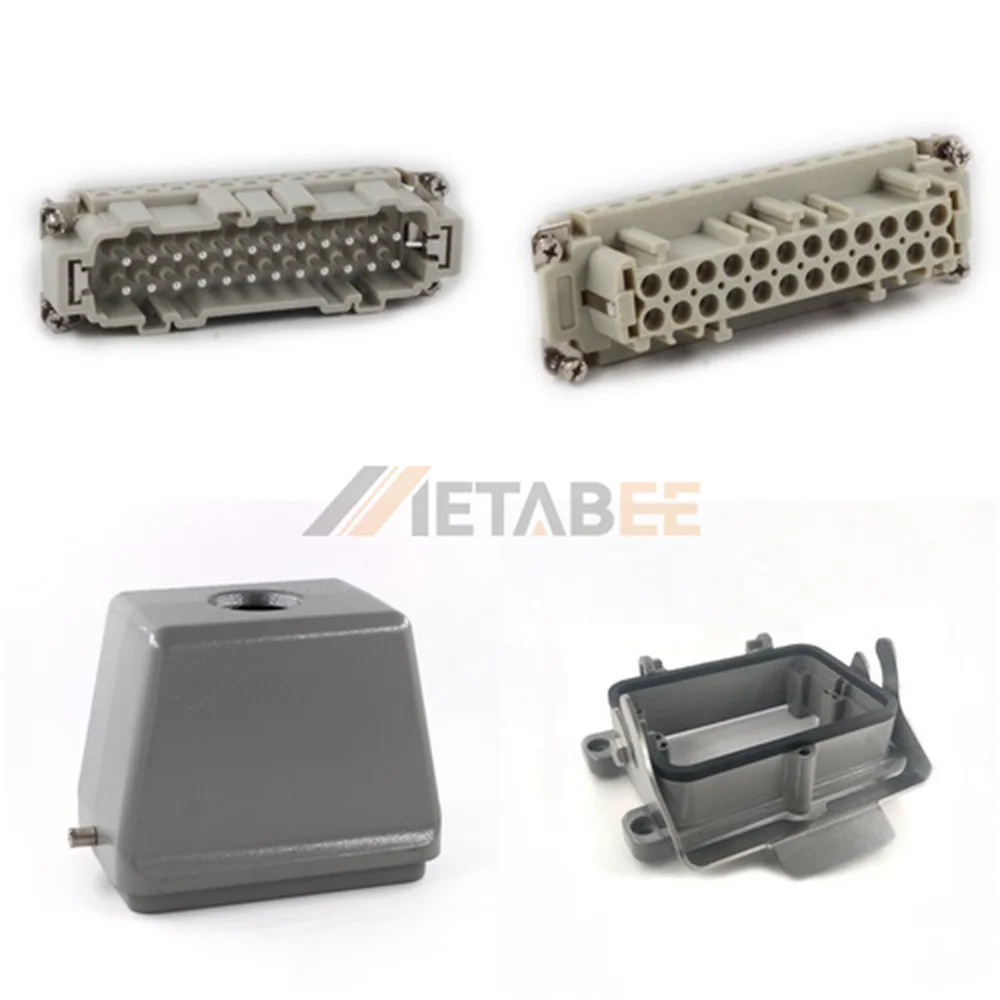

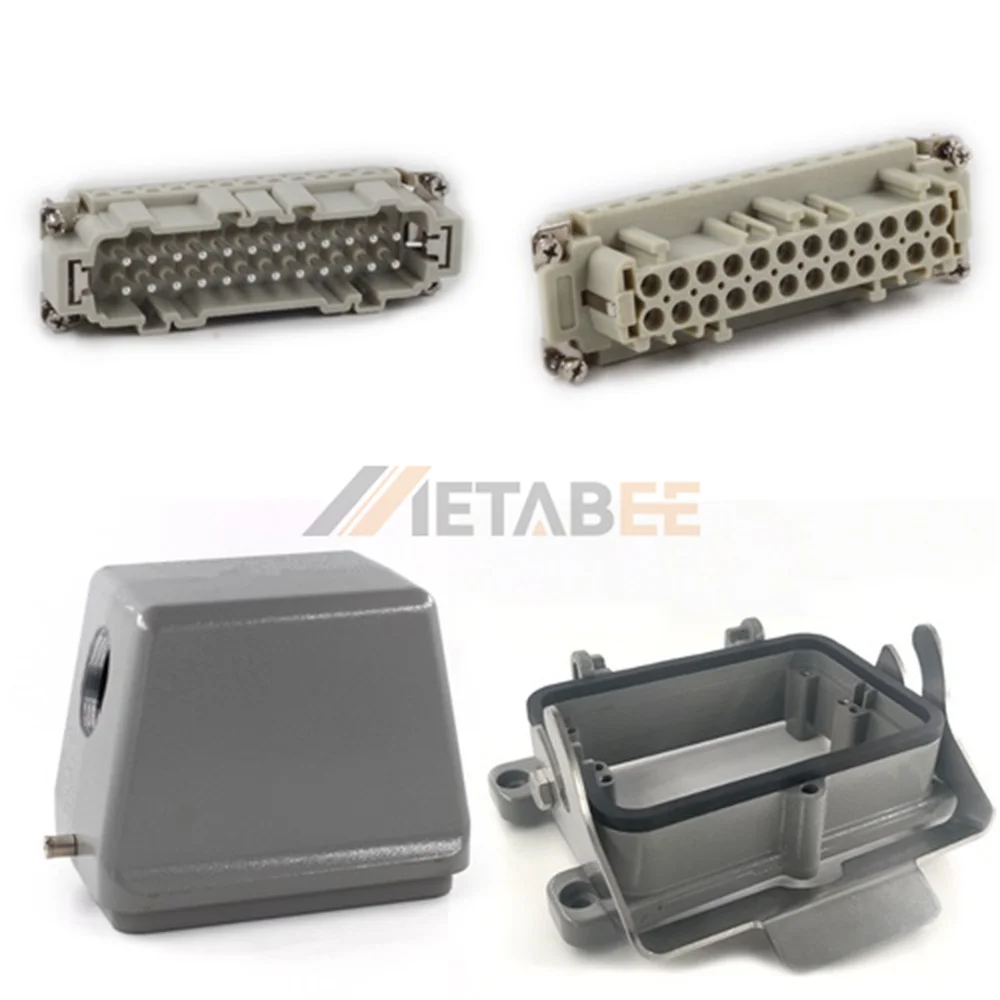

| Product No.: | HE-048-AG-TS, HE-048-AG-TG | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 48+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H32B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M32, M40, M50, M63, PG29, PG36, PG42 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
