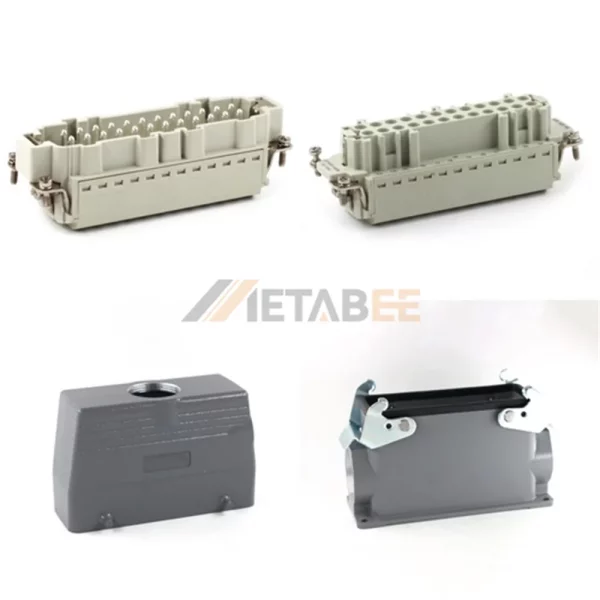

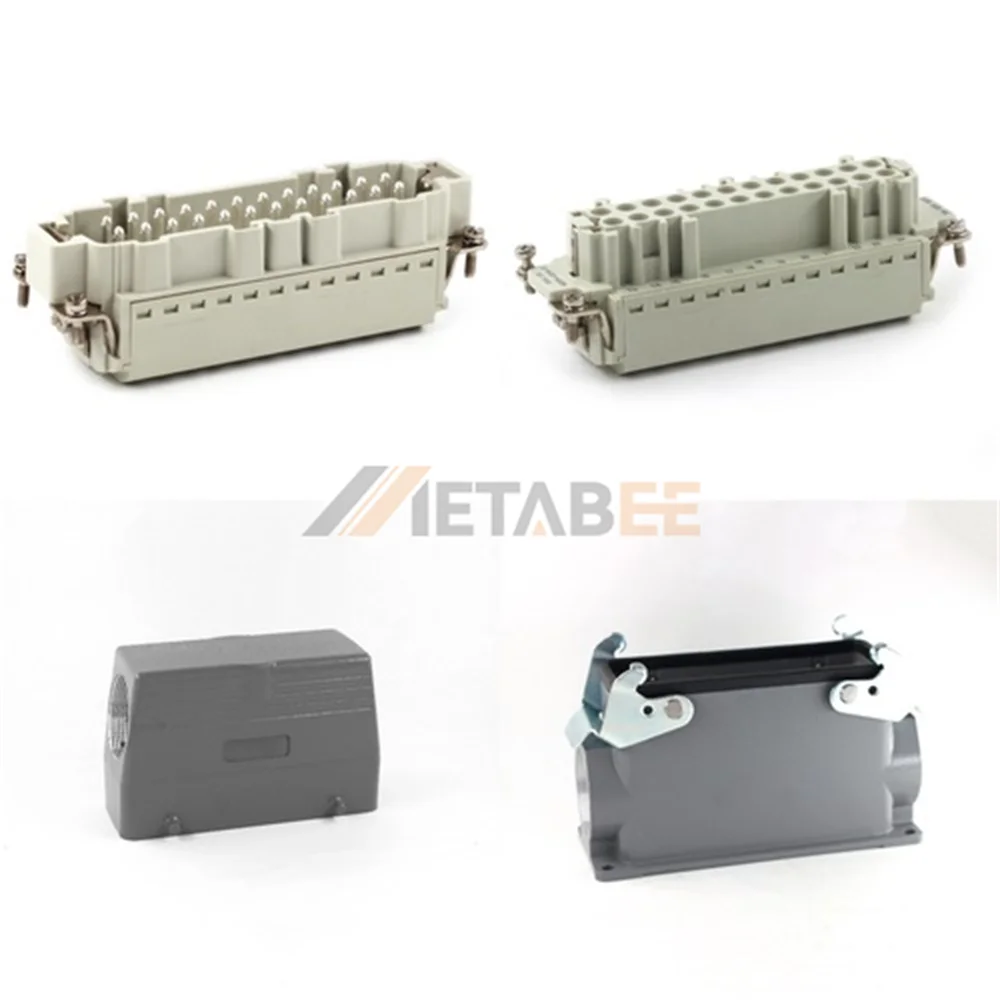

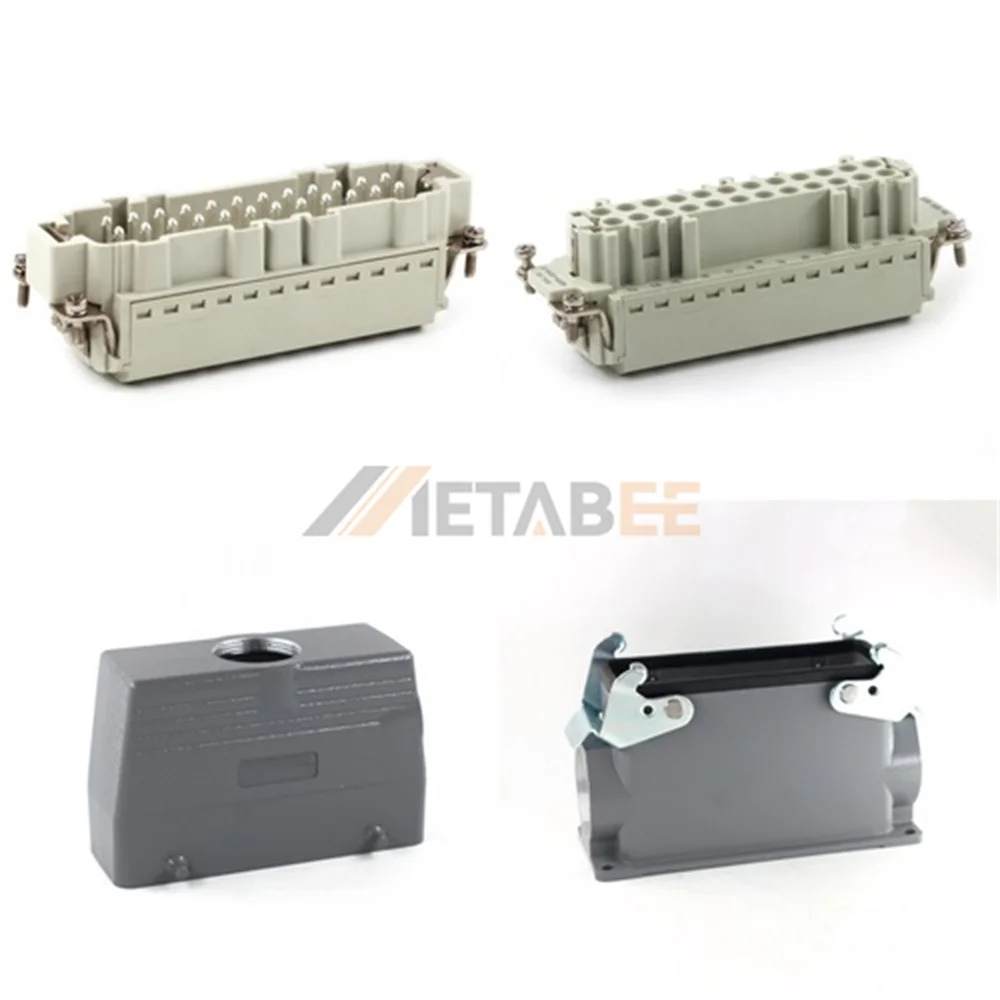

HE Series High Construction Heavy Duty Connector, 24+PE, Surface with 2 Levers, Quick Lock, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series high construction heavy duty connector offers maximum stability for large systems. It features a surface mounting base equipped with two locking levers. This double lever design secures the large 24+PE interface against strong vibration. The high housing design provides extra internal space for managing cables easily. The assembly utilizes quick lock terminal technology for instant setup. You can connect all wires quickly without using screws or tools. It reliably handles 16A and 500V loads. The hood supports top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Two locking levers ensure superior connection stability.
- High construction housing offers extra wiring space.
- Quick lock terminals enable fast screwless connection.
- Surface mounting base installs on flat walls.
- High-density 24+PE configuration rated at 16A 500V.
Main Specifications:
General Information:
| Product No.: | HESH-024-SGRH-TSH, HESH-024-SGRH-TGH | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 24+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H24B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M32, M40, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
