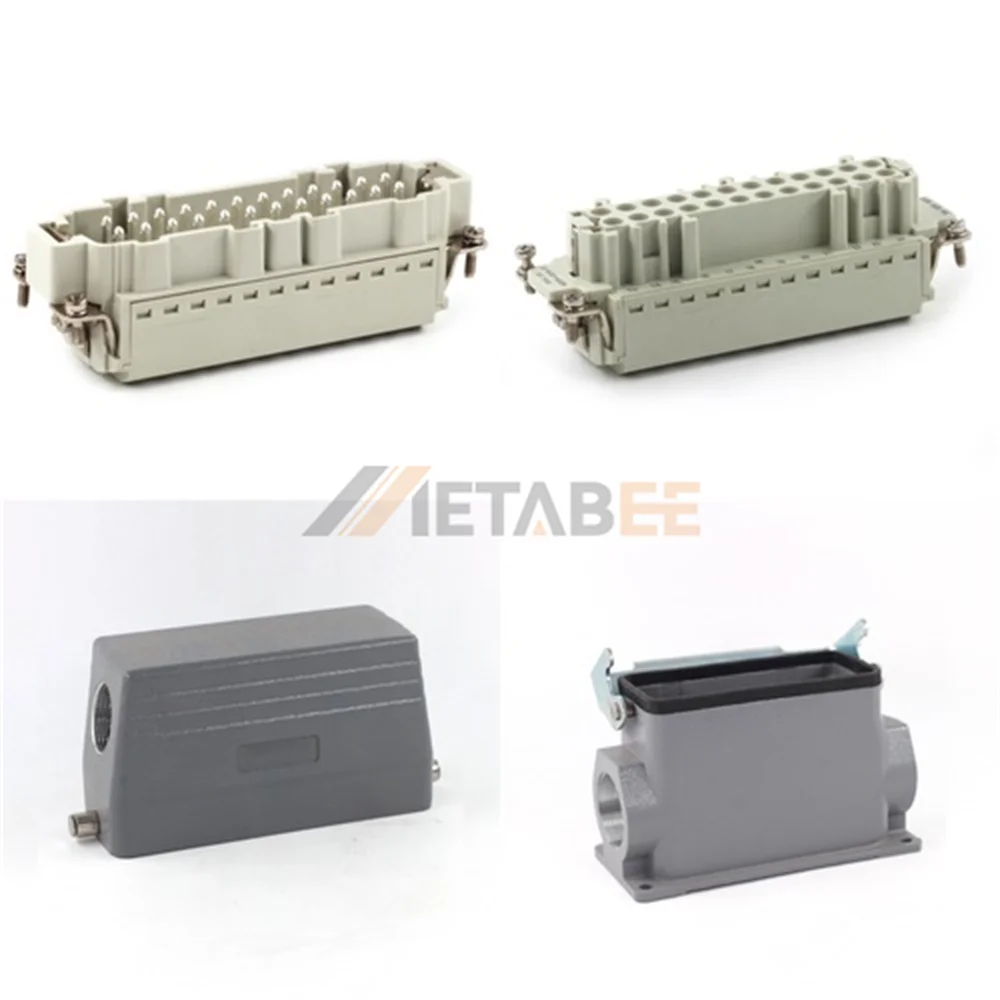

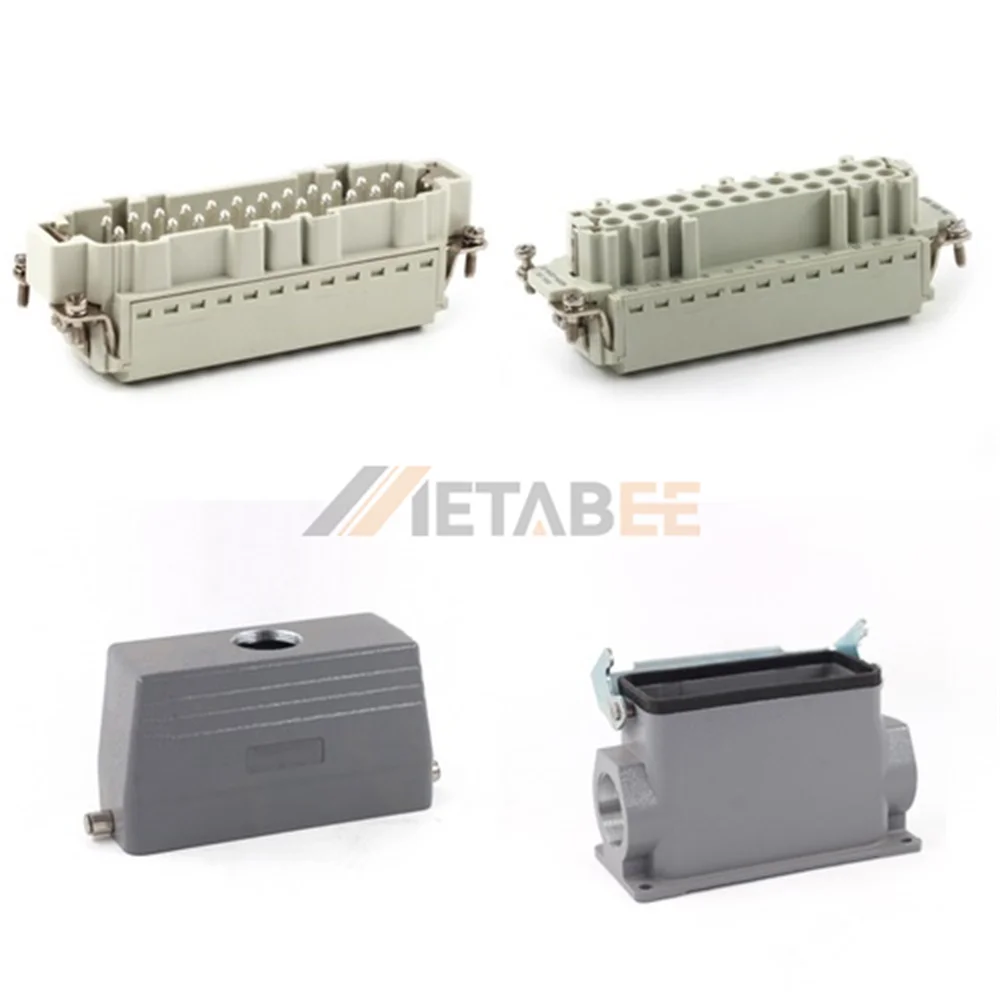

HE Series High Construction Heavy Duty Connector, 24+PE, Surface Mount, Quick Lock, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series high construction heavy duty connector speeds up large wiring jobs. It combines a high housing design with quick lock terminal technology. This gives you extra room and instant connection for the 24+PE configuration. You do not need tools or screws to secure the wires. The assembly includes a surface mounting base for direct wall attachment. This eliminates panel preparation time. It handles industrial loads rated at 16A and 500V. The hood supports top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- High construction housing offers extra internal wiring space.
- Quick lock terminals enable fast screwless connection.
- High-density 24+PE configuration rated at 16A 500V.
- Surface mounting base installs on flat walls.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HESH-024-SGRH-LB-TSH-RO, HESH-024-SGRH-LB-TSH-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 24+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H24B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M32, M40, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
