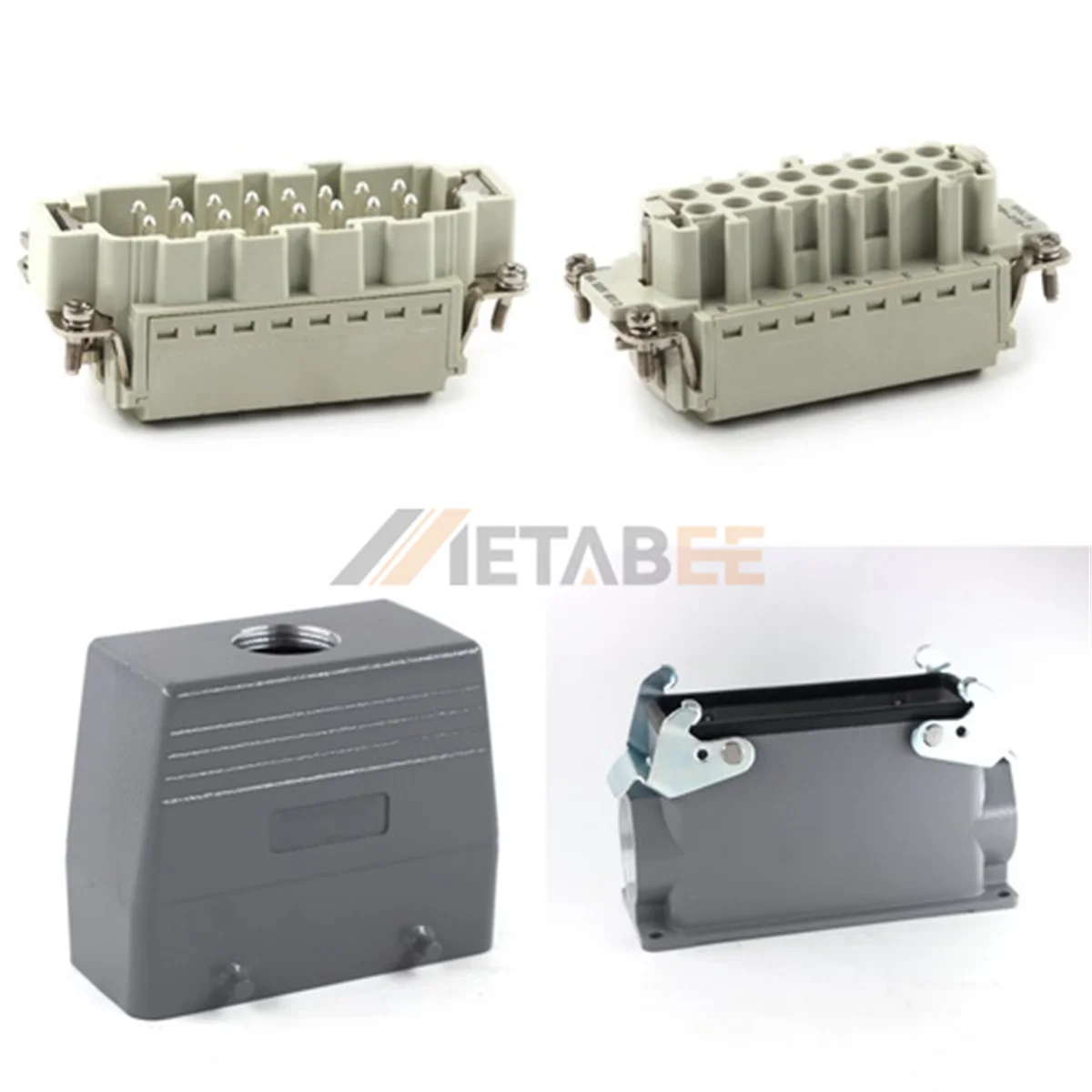

HE Series High Construction Heavy Duty Connector, 16+PE, Surface Mount Cover, Quick Lock Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series high construction heavy duty connector makes high-density wiring tasks much simpler. Its high housing design provides ample internal space to accommodate the 16+PE configuration comfortably. The assembly utilizes quick lock terminal technology for rapid installation. You can connect all wires instantly without screws or special tools. The kit includes a surface mounting base equipped with a protective cover. This keeps the inserts safe from dust when disconnected. It handles industrial loads rated at 16A and 500V efficiently. The hood supports top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- High construction housing fits 16+PE wires easily.
- Quick lock terminals enable fast screwless connection.
- Surface mounting base includes a protective cover.
- Robust 16A 500V ratings for industrial power.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HESH-016-SGRH-TGH, HESH-016-SGRH-TSH | |
| Category: | Heavy-Duty Connector Assemblies | |
| Product Series: | HE Series | |
| Number of Contacts: | 16+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H16B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M32, M40, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
