HE Series Heavy Duty Connector with 2 Levers, 32+PE, Bulkhead, Quick Lock Terminal, Top/Side Entry, 16A/250V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector transforms the way you wire large systems. It utilizes quick lock terminal technology for the high-density 32+PE configuration. You can connect all wires instantly without turning a single screw. The assembly houses two separate 16-pin inserts side by side. It features a bulkhead mounting base equipped with two locking levers. This double lever system ensures the connection stays tight under vibration. It reliably handles industrial loads rated at 16A and 500V.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Quick lock terminals enable fast screwless connection.
- Two locking levers ensure maximum connection stability.
- Combines two 16-pin inserts for 32+PE connection.
- Bulkhead mounting base fits standard panel cutouts.
- Rated at 16A 500V for high-density wiring.
Main Specifications:
General Information:

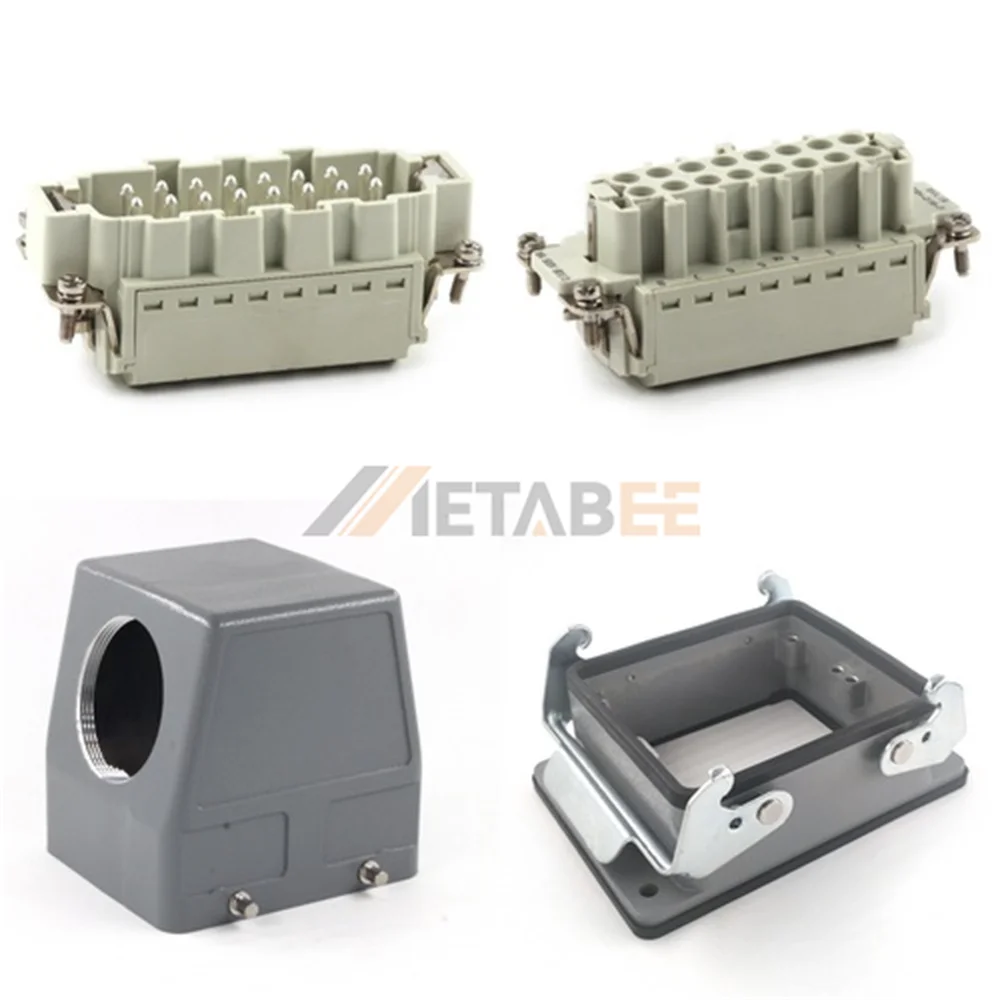

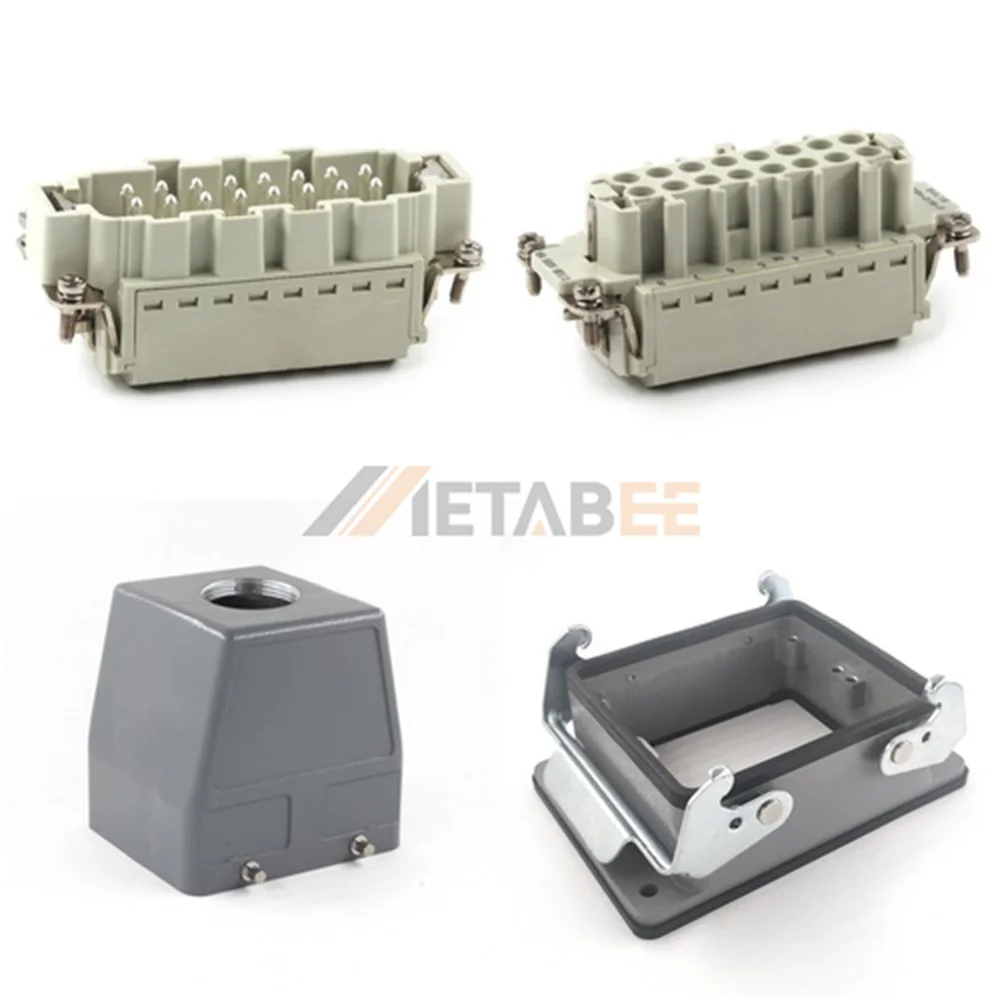

| Product No.: | HESH-032-AG-TS, HESH-032-AG-TG | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 32+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H32B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M32, M40, M50, PG29, PG36, PG42 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
